Acura
>>
2005
>>
RSX L4-2.0L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Courtesy Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

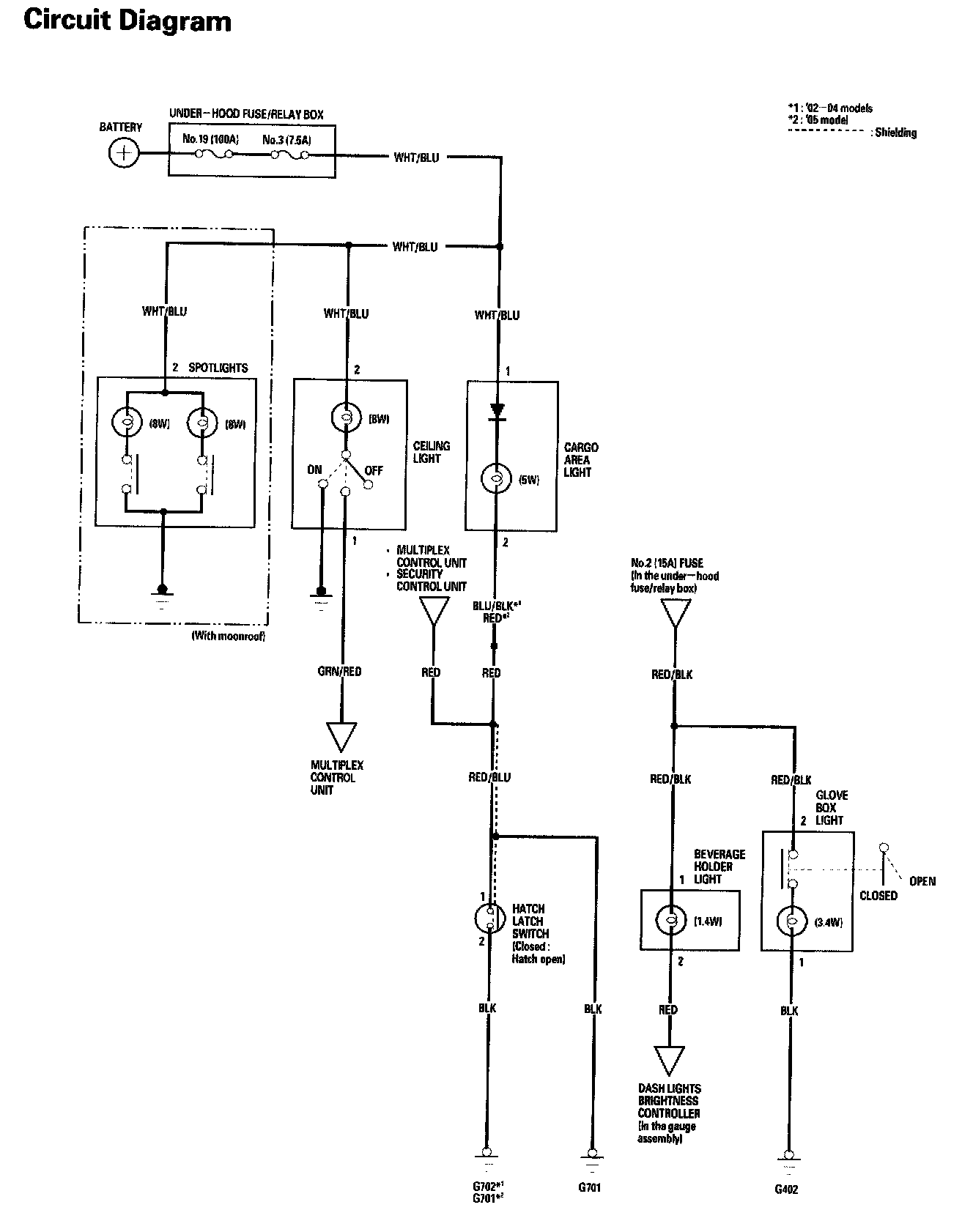

Interior Lights - Circuit Diagram:
