Home >> Acura >> 2005 >> RSX L4-2.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Cylinder Head Assembly

Cylinder Head Assembly

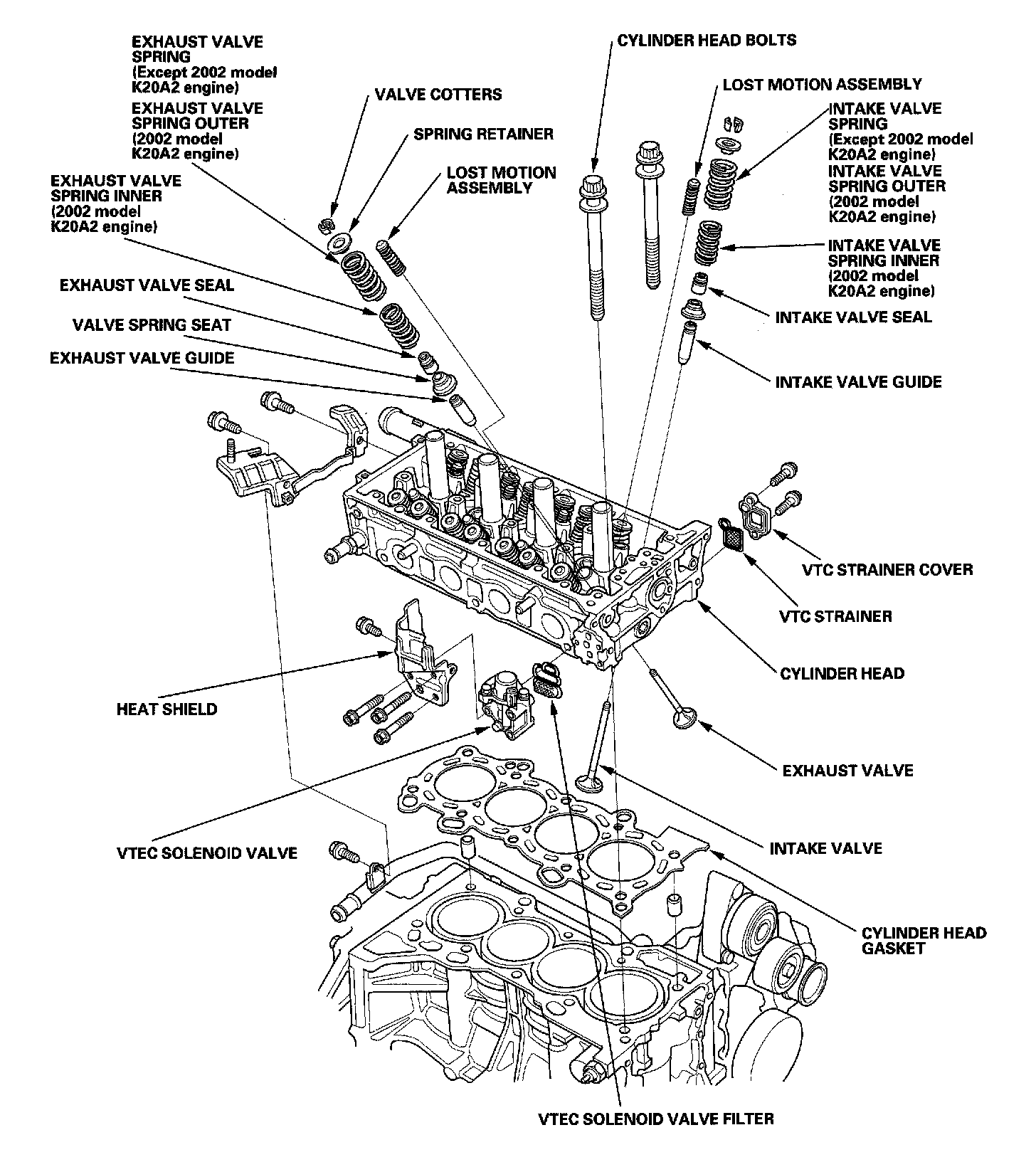

Part 1:

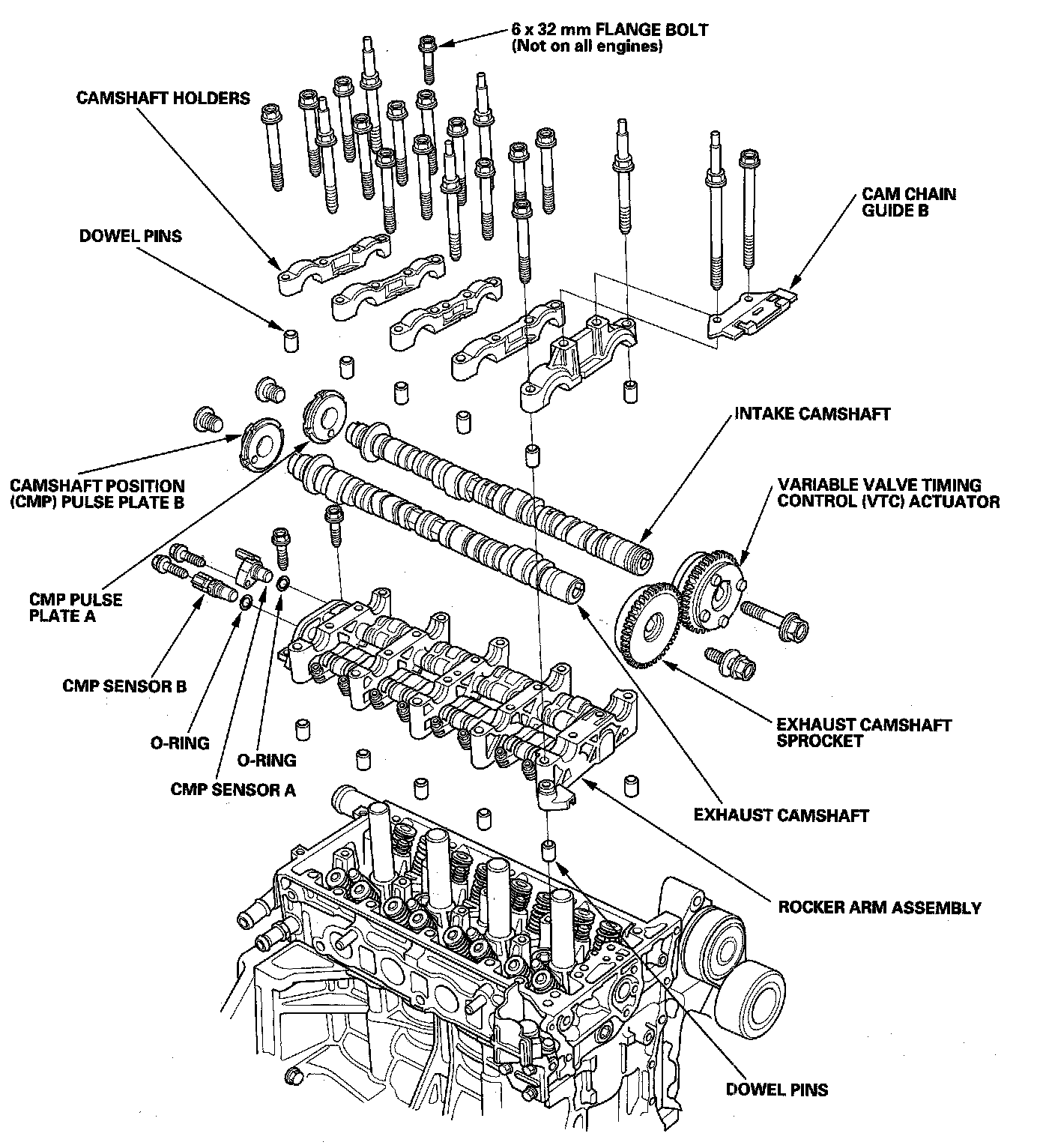

Part 2:

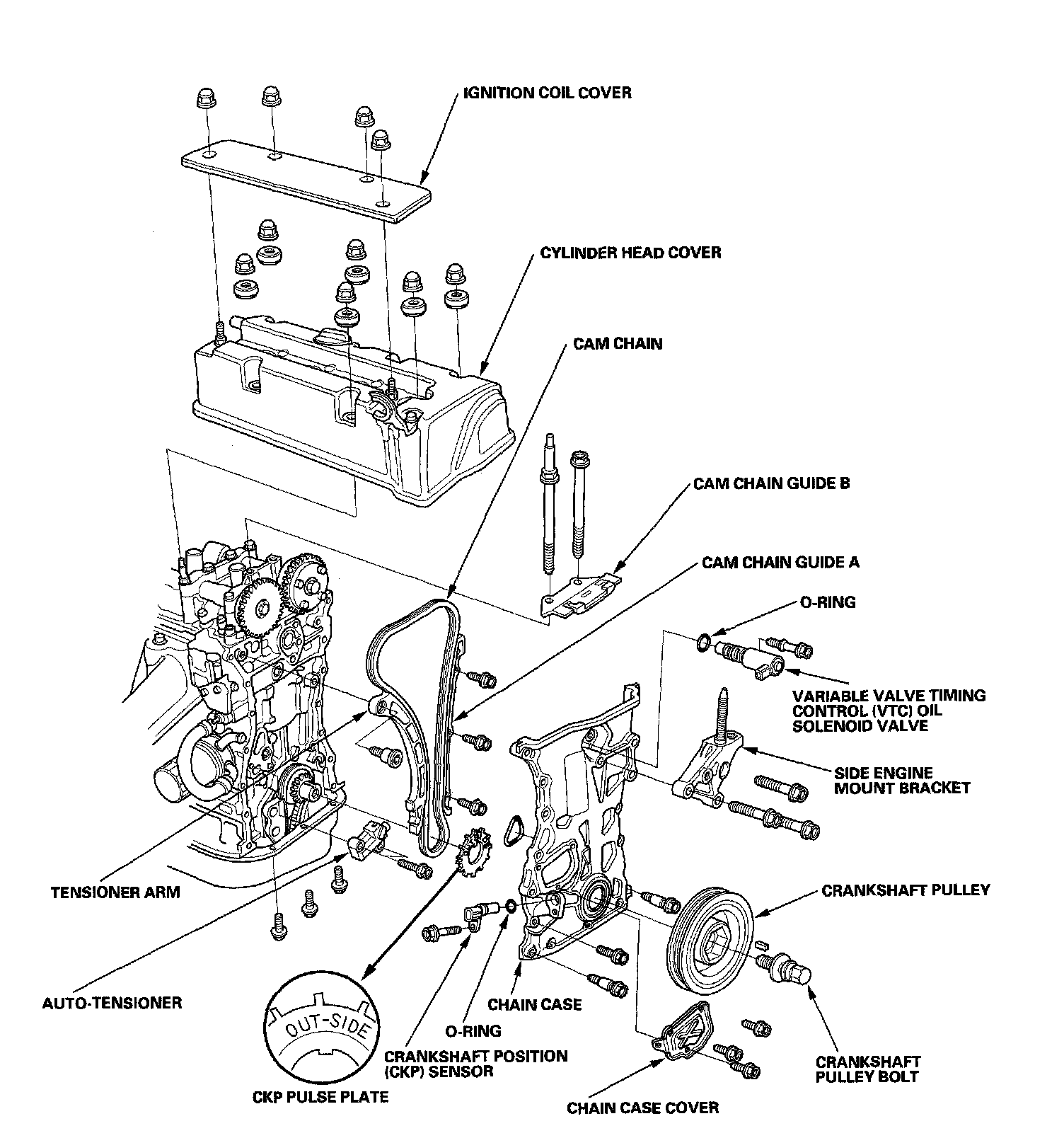

Part 3:
