Curiosii for ever!: Car repair manuals for everyone.
Home >> Acura >> 2005 >> RSX L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Splice and Junction Connector Details >> Circuit F55 Service Check Signal

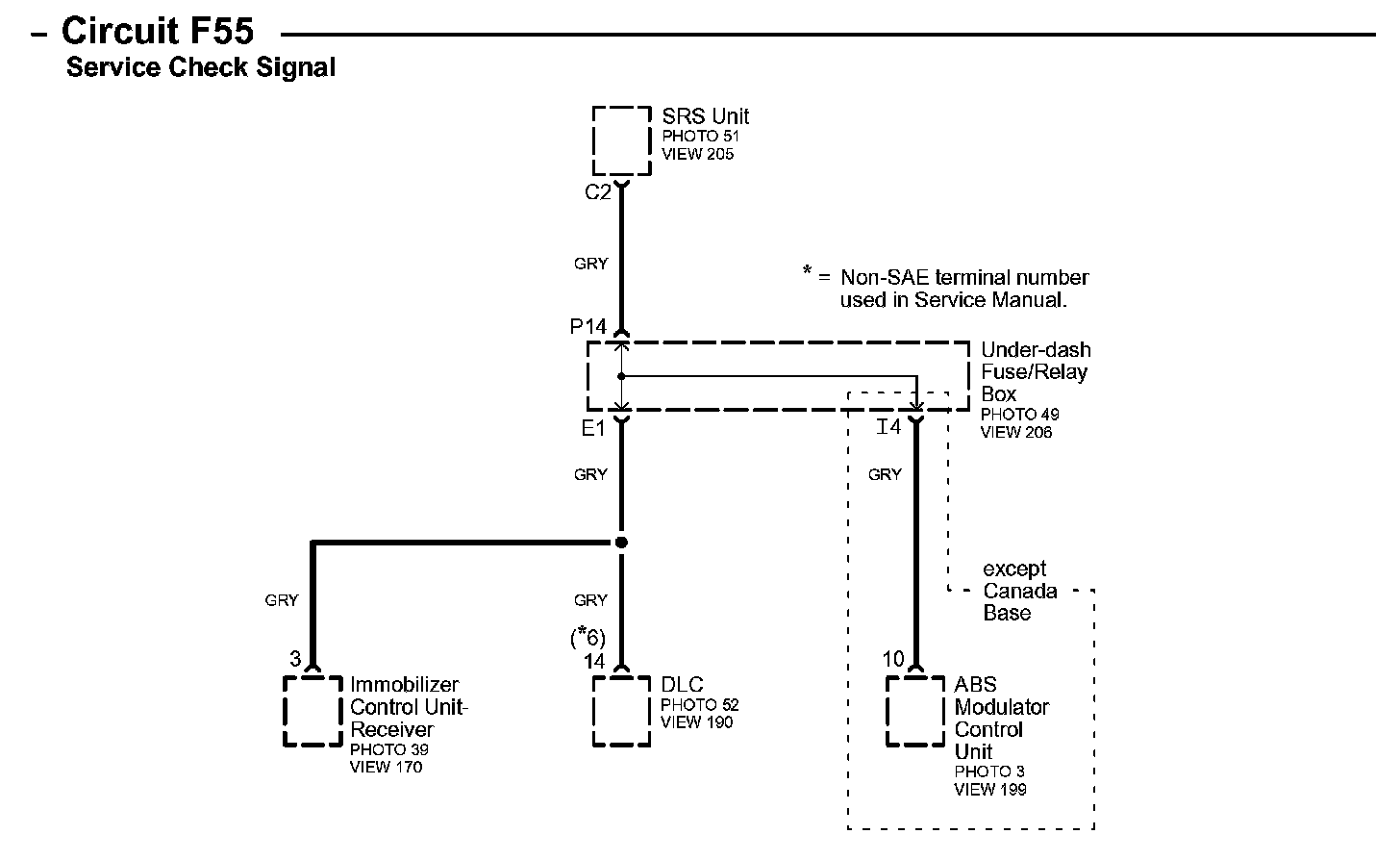

Circuit F55 Service Check Signal

Circuit F55 Service Check Signal:
