Connector Views
>>
Power Window Motor
>>
System Diagram
System Diagram

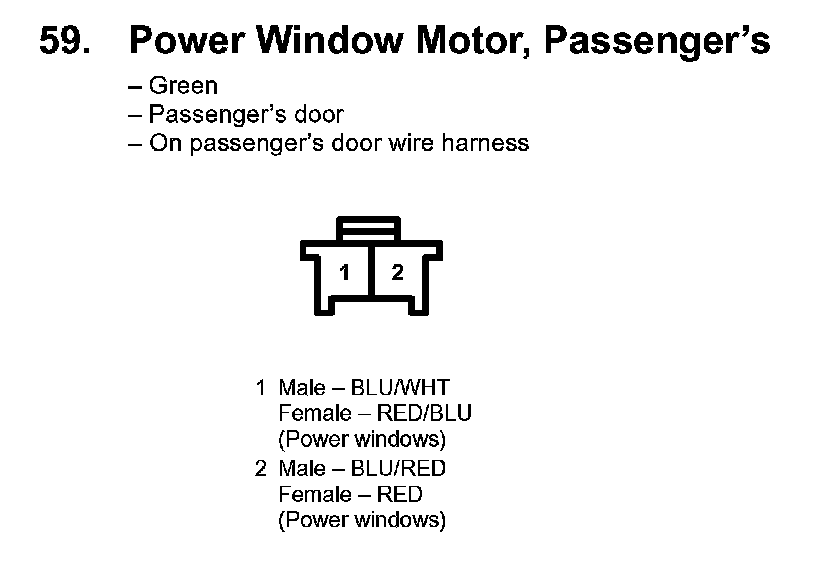

59. Power Window Motor, Passenger's:

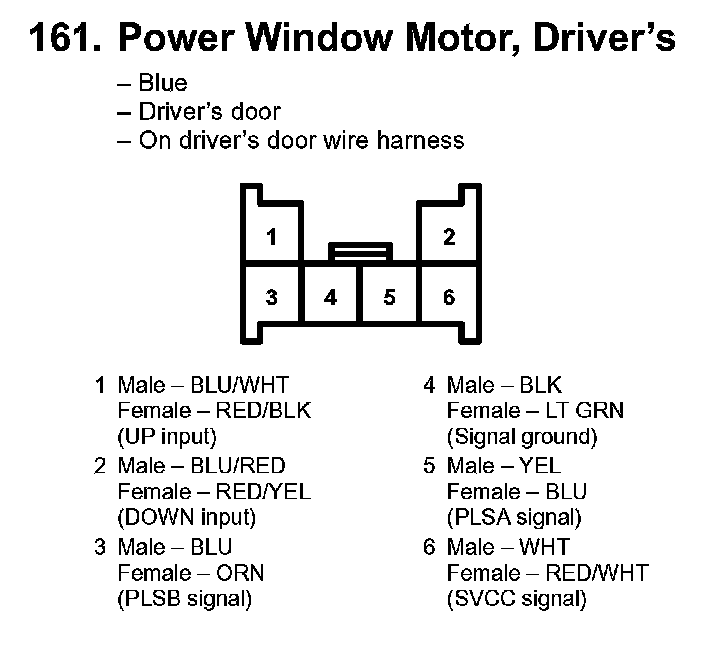

161. Power Window Motor, Driver's:
