Home >> Acura >> 2005 >> RSX L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 201-225 >> 213

View 201-225: 213

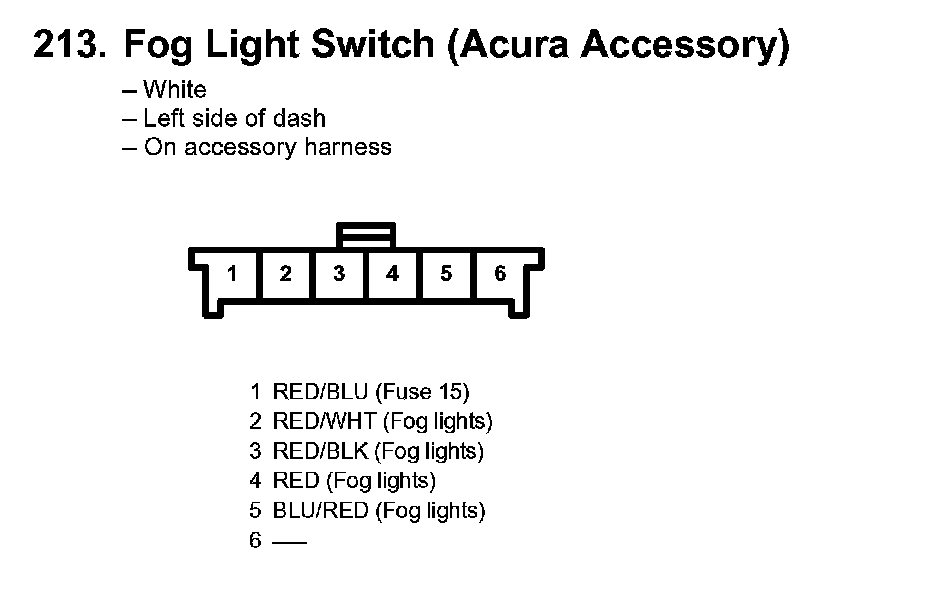

213. Fog Light Switch (Acura Accessory):
