Intermediate Shaft Installation

Intermediate Shaft Installation

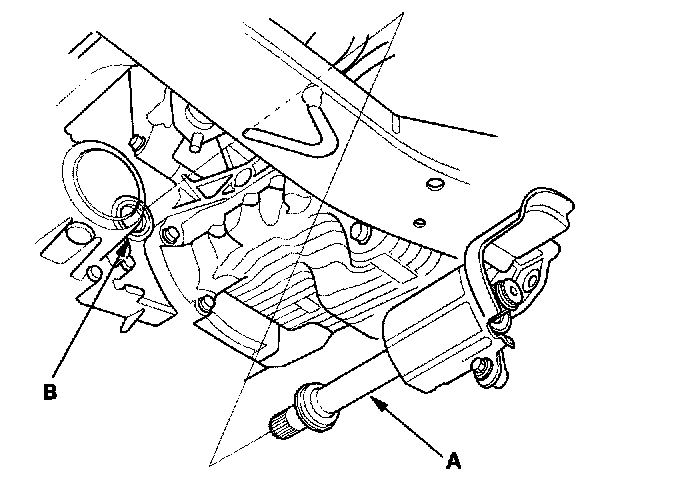

1. Use brake cleaner to thoroughly clean the areas where the intermediate shaft (A) contacts the transmission (differential), and dry with compressed air. Do not wash the rubber parts in solvent. Insert the intermediate shaft assembly into the differential. Hold the intermediate shaft horizontally to prevent damage to the differential oil seal (B).

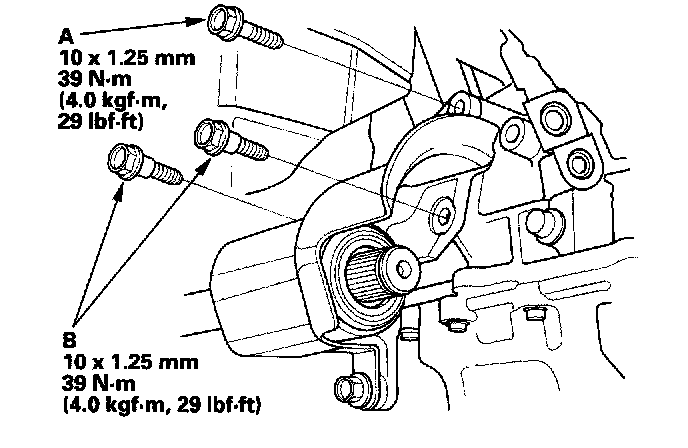

2. Install the flange bolt (A) and two dowel bolts (B).





3. Install the exhaust pipe bracket.





4. Install the right driveshaft.
5. Refill the automatic transmission fluid.
