Intermediate Shaft Disassembly

Intermediate Shaft Disassembly
Special Tools Required
- Driver 07749-0010000
- Support base attachment 07LAF-SM4030CI -Support base 07965-SD90100
- Attachment, 42 x 47 mm 07746-0010300

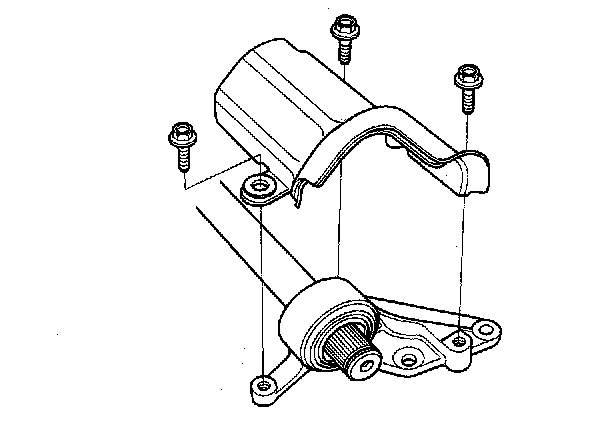

1. Remove the heat shield.

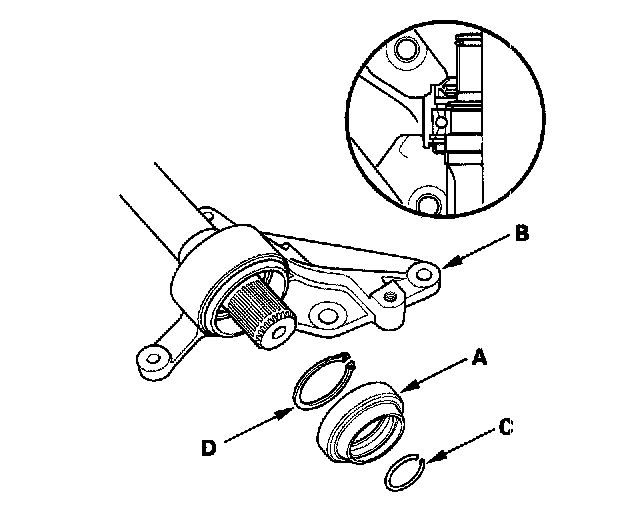

2. Remove the intermediate shaft outer seal (A) from the bearing support (B).





3. Remove the set ring (C) and external snap ring (D).

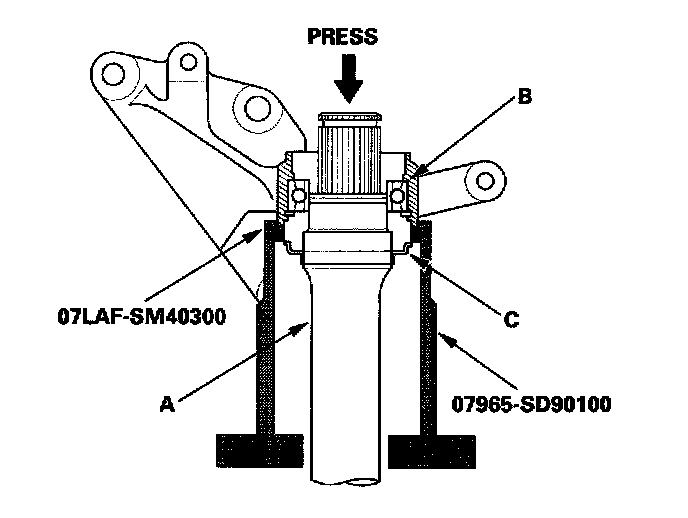

4. Press the intermediate shaft (A) out of the intermediate shaft bearing (B) using the special tools and a press. Be careful not to damage the metal rings (C) on the intermediate shaft during disassembly.

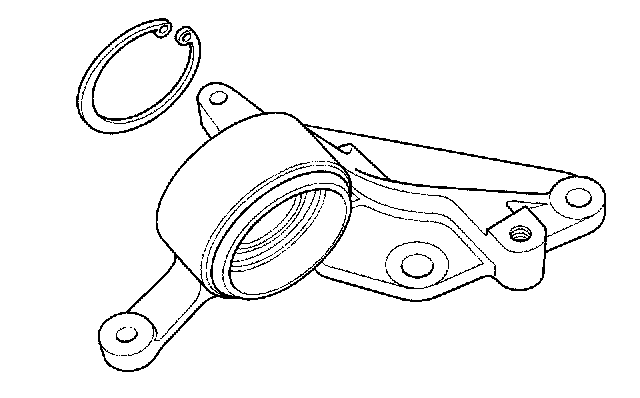

5. Remove the internal snap ring.

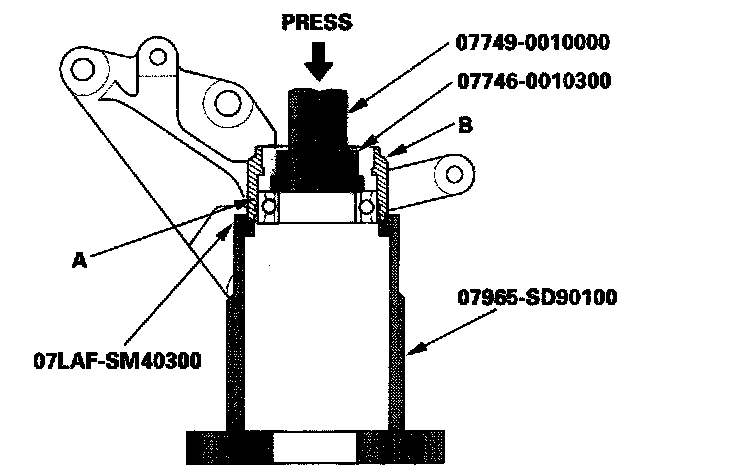

6. Press the intermediate shaft bearing (A) out of the bearing support (B) using the special tools and a press.
