Air Bag Deactivation Indicator: Testing and Inspection

Passenger's Airbag Cutoff Indicator Illumination Bulb Test

1. Remove the passenger's vent panel.




2. Push out the passenger's airbag cutoff indicator from behind the upper panel.

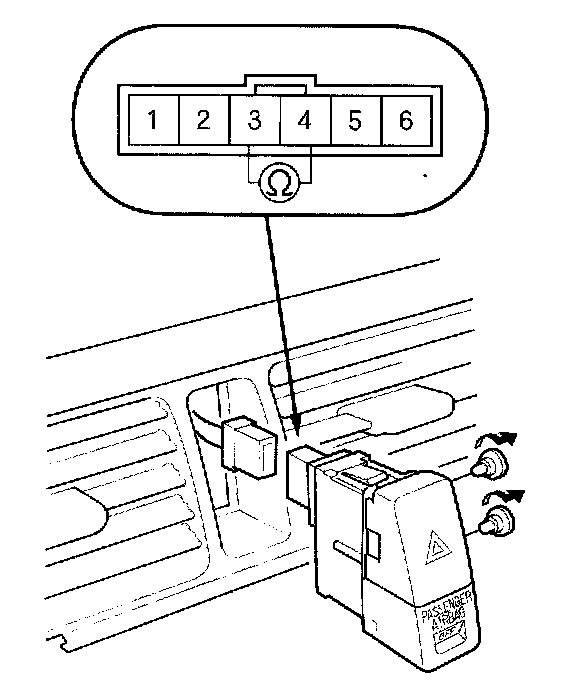

3. Disconnect the 6P connector (A) from the passenger's airbag cutoff indicator (B).
4. Check for continuity between the No. 3 and No. 4 terminals of the indicator. If there is no continuity, replace the bulb.
5. Reinstall the parts in the reverse order of removal.
