Home
>>
Acura
>>
2005
>>
RL V6-3.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Splice and Junction Connector Details
>>

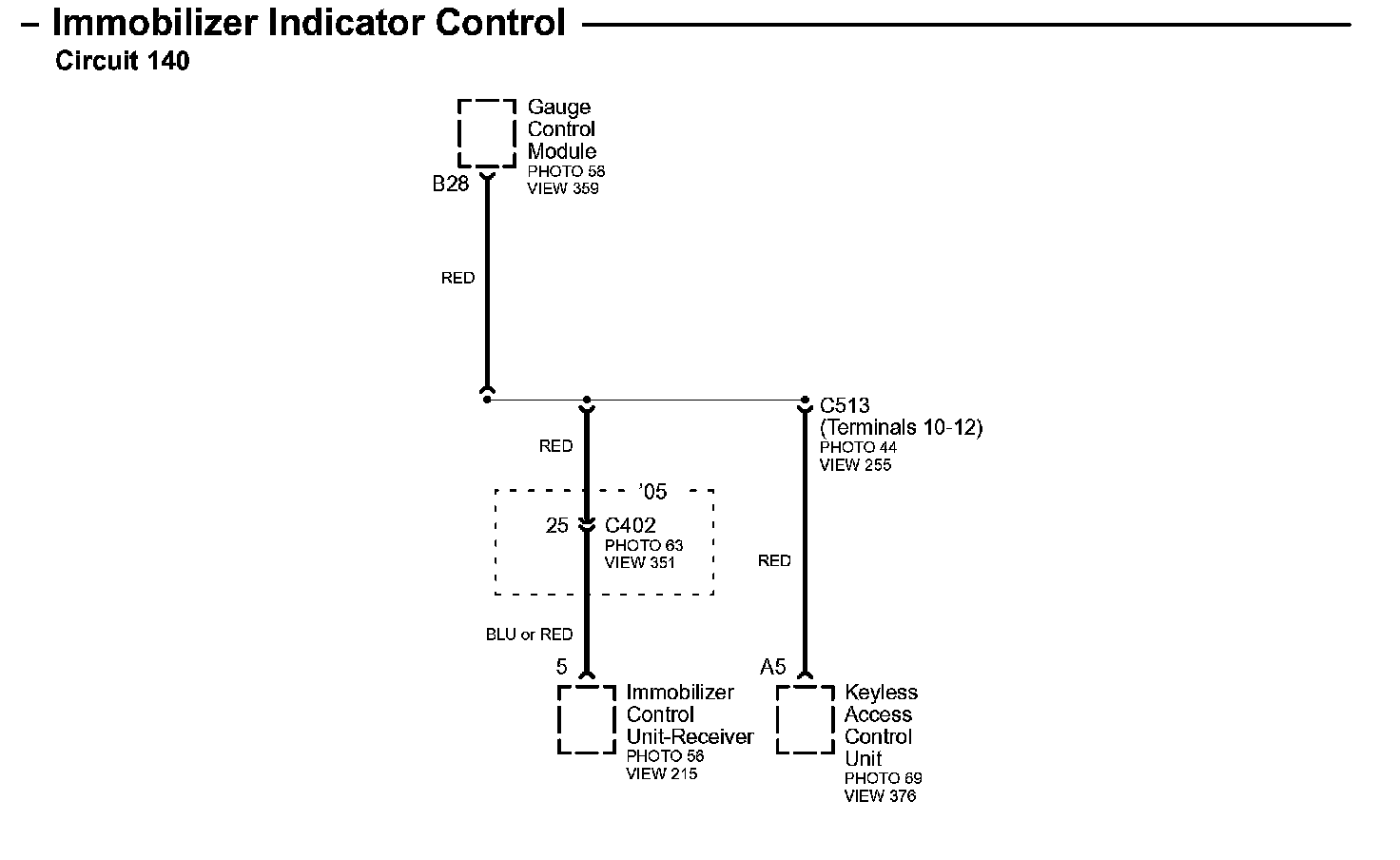

Immobilizer Indicator Control Circuit 140
Immobilizer Indicator Control Circuit 140
Immobilizer Indicator Control Circuit 140:
