Rear Vent Control Motor Replacement

Rear Vent Control Motor Replacement

1. Remove the utility pocket.
2. Remove the center console.
Remove the duct.

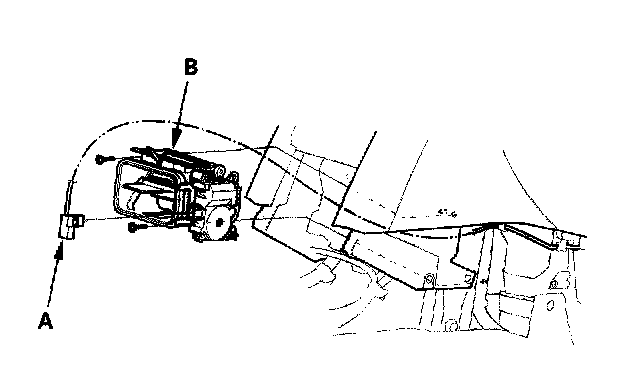

3. Disconnect the 5P connector (A) and duct (B).

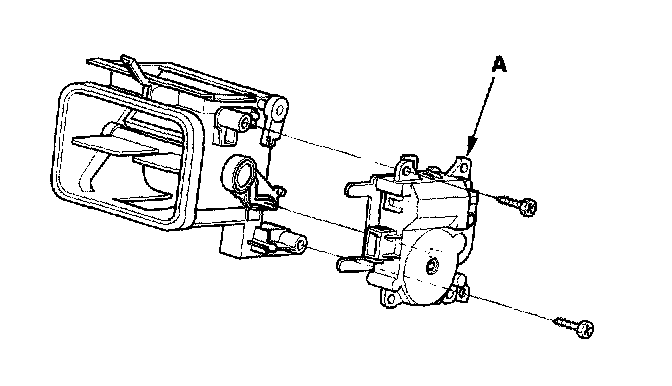

4. Remove the self-tapping screws and the rear vent control motor (A).
5. Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
