Passenger's Air Mix Control Motor Replacement

Passenger's Air Mix Control Motor Replacement

1. Remove the glove box housing.




2. Remove the self-tapping screws, bolt, and the duct (A).

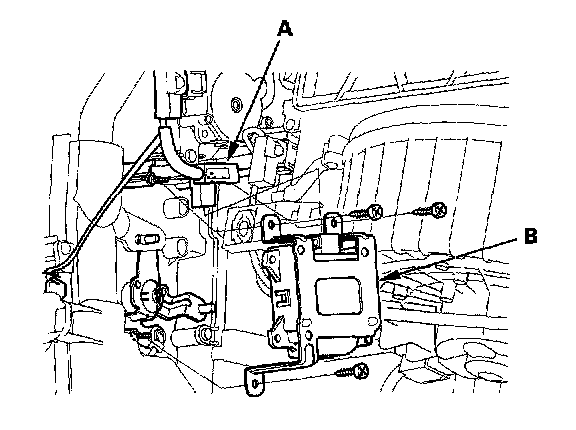

3. Disconnect the 5P connector (A) from the passenger's air mix control motor. Remove the self-tapping screws and the passenger's air mix control motor (B) from the heater unit.
4. Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
