Mode Control Motor Replacement

Mode Control Motor Replacement

1. Remove the driver's dashboard under cover.




2. Disconnect the connectors (A) from the power tilt/telescopic steering control unit, the adaptive front lighting control unit, the power steering control unit, and the daytime running lights control unit. Remove the relay (B) and the power tilt/telescopic steering control unit (C), then remove the self-tapping screws and the bracket (D).

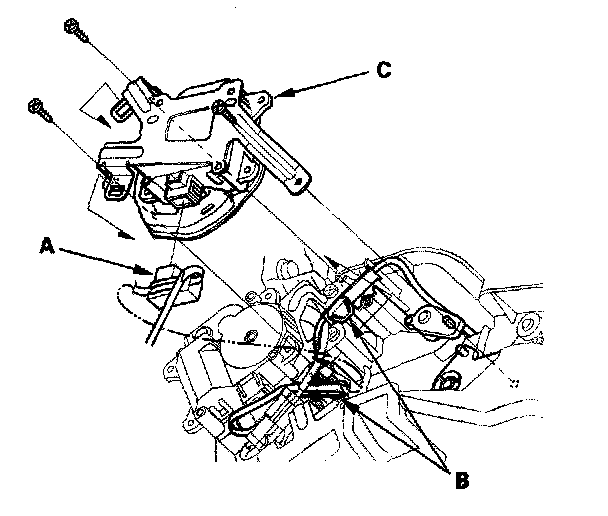

3. Disconnect the 5P connector (A) from the mode control motor. Remove the harness clips (B). Remove the self-tapping screws and the mode control motor (C).
4. Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
