Active Noise Control Subharness
Active Noise Control Subharness

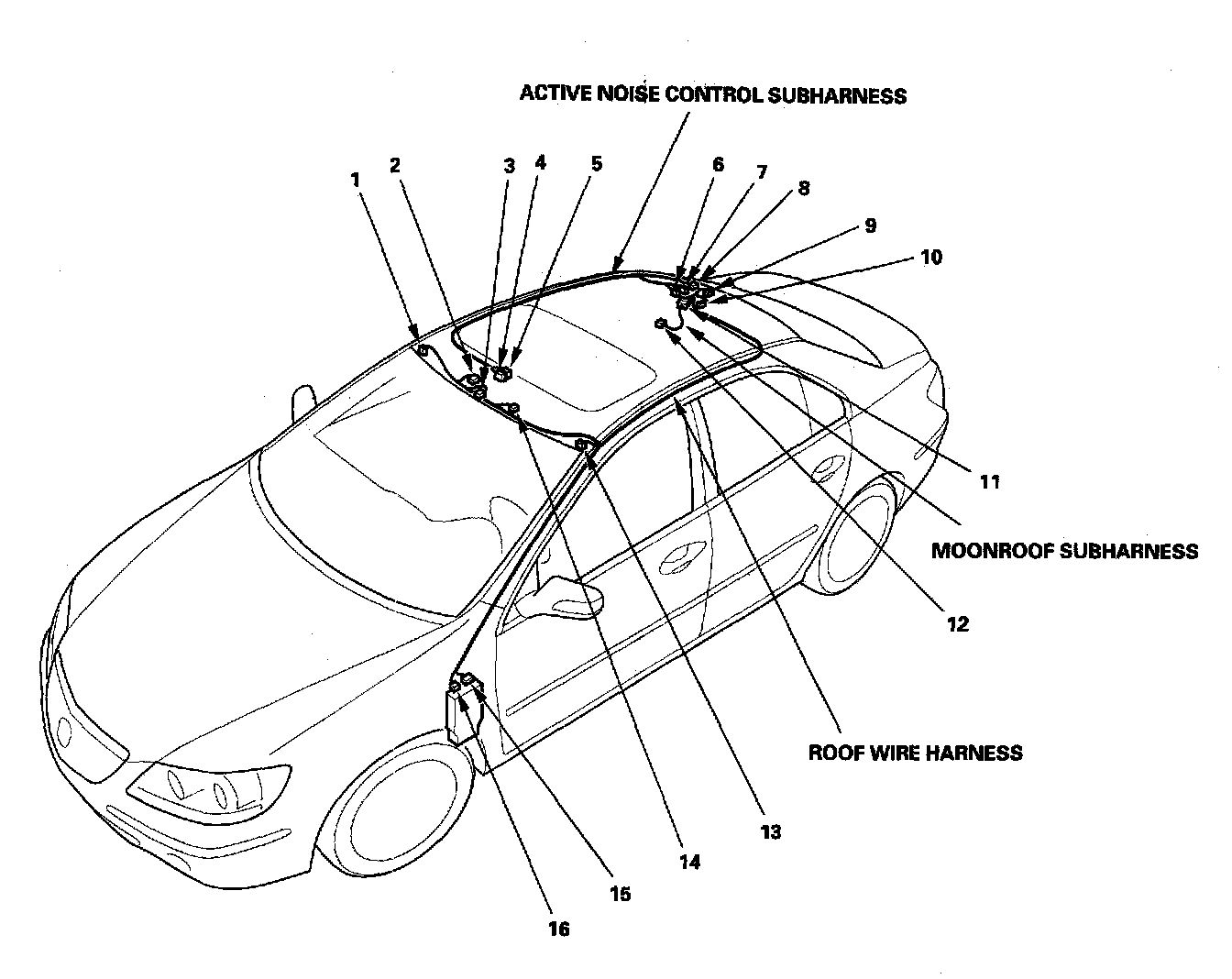

Harness Location View:

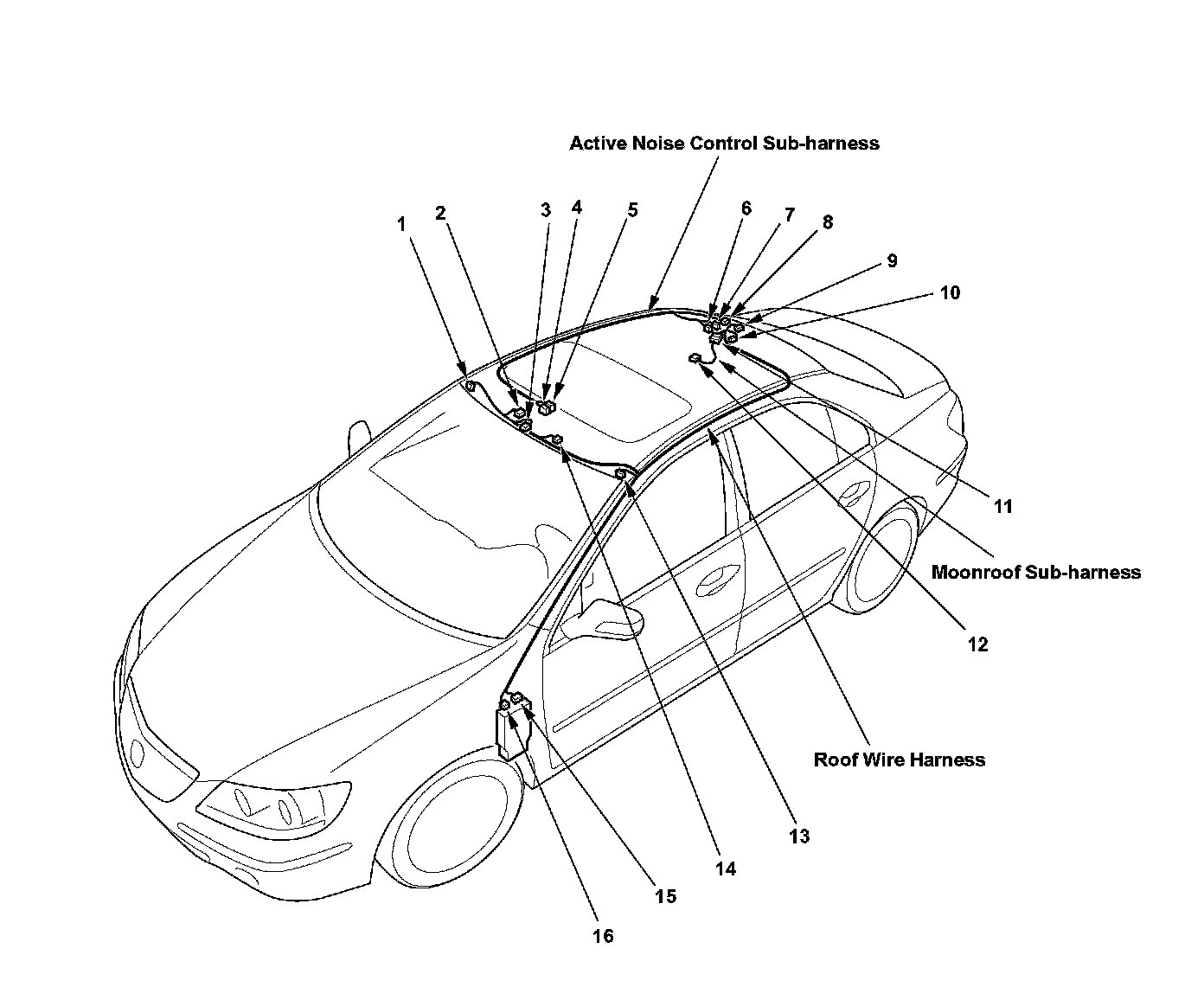

Harness Location View:

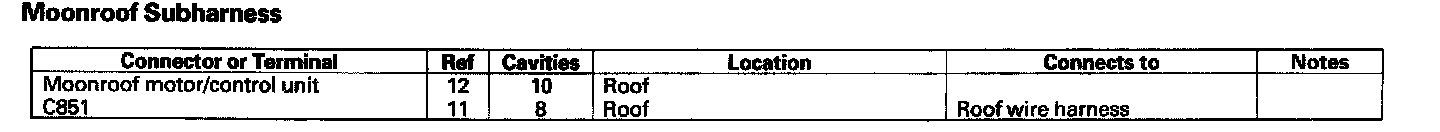

Moonroof Subharness:

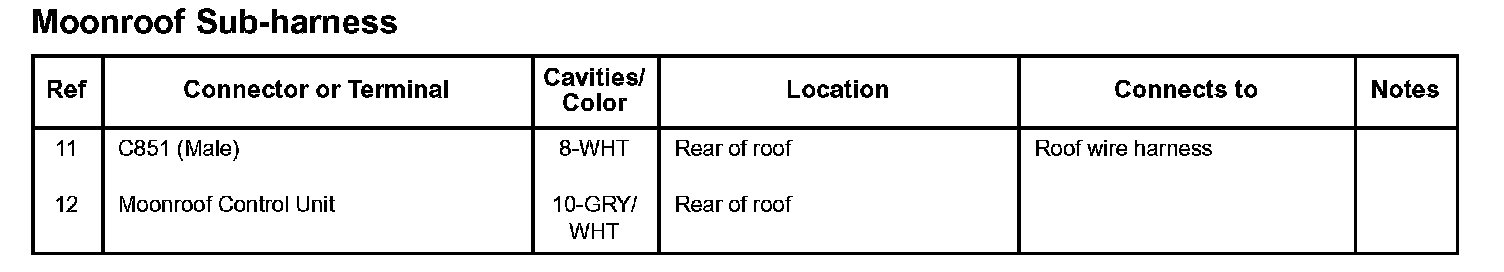

Moonroof Sub-harness:
