Differential Assembly
Differential Assembly

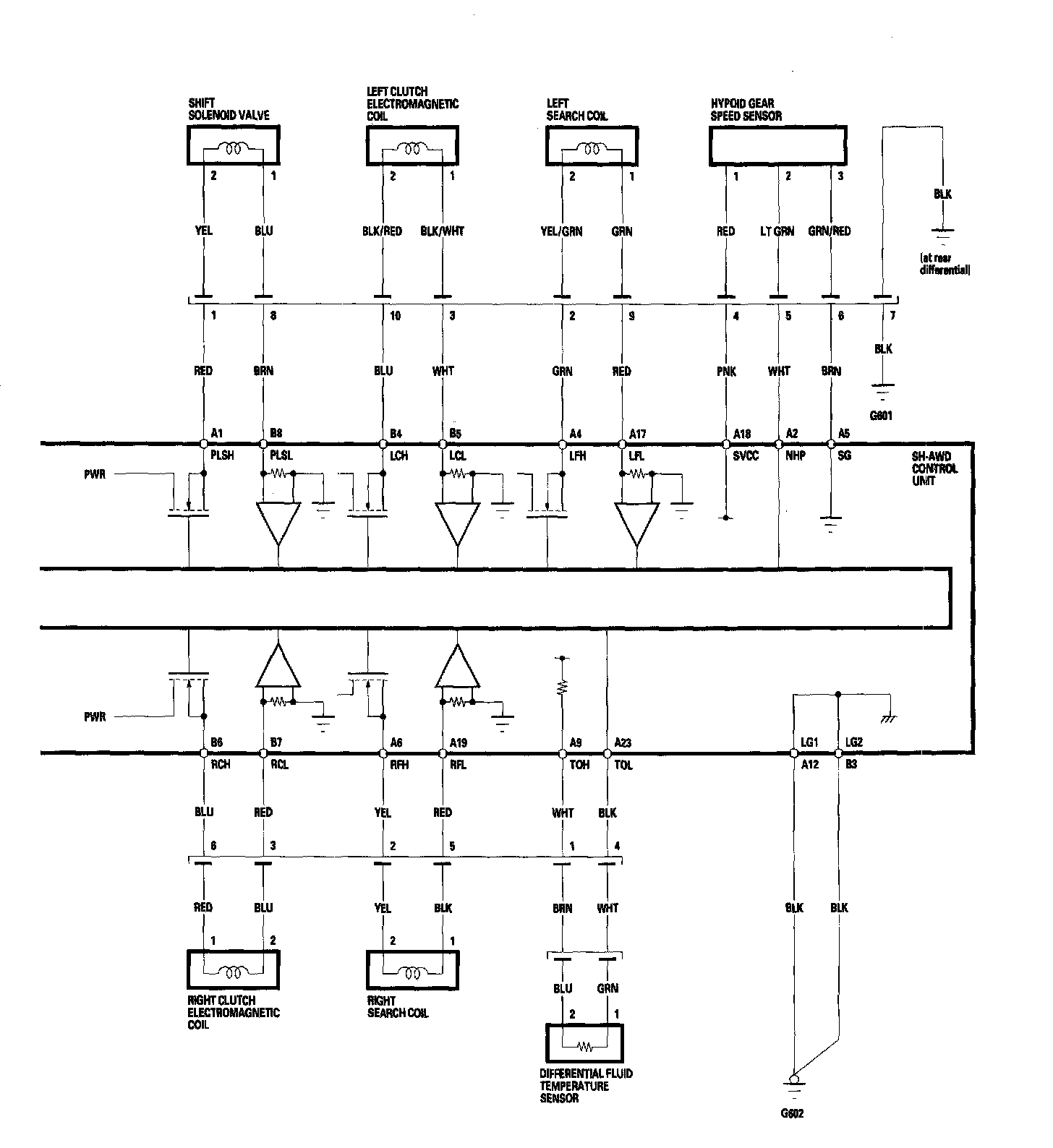

Rear Differential Circuit Diagram:

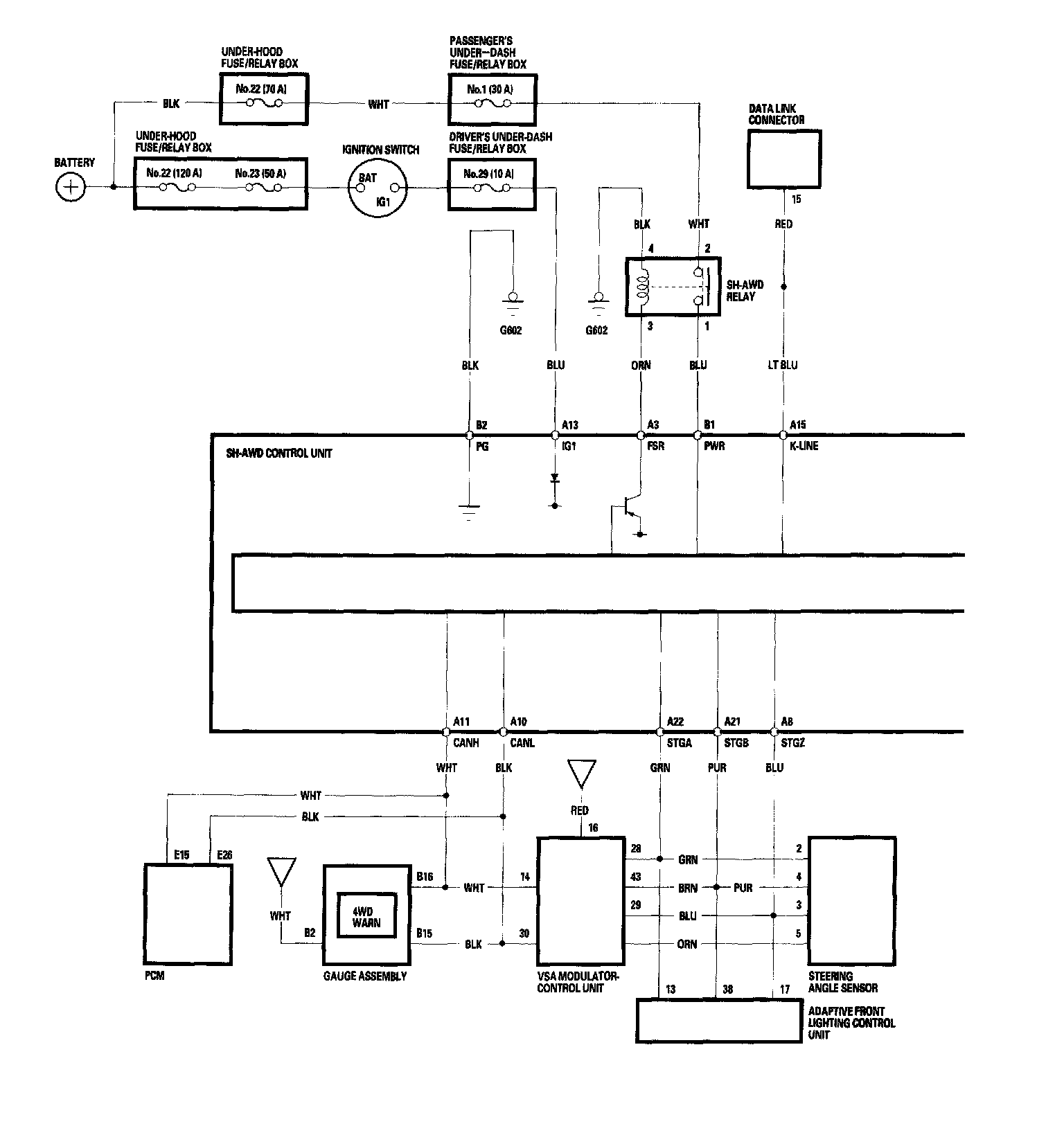

Rear Differential Circuit Diagram (continued):
