Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Acura
>>
2005
>>
RL V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Driver/Vehicle Information Display
Driver/Vehicle Information Display

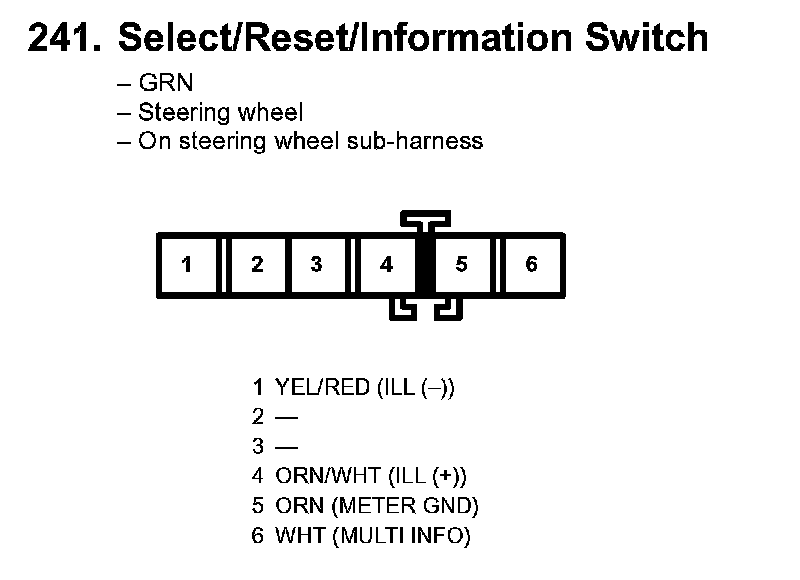

241. Select/Reset/Information Switch:
333. Display Panel Control Unit:
