Auxiliary Power Outlet
Auxiliary Power Outlet

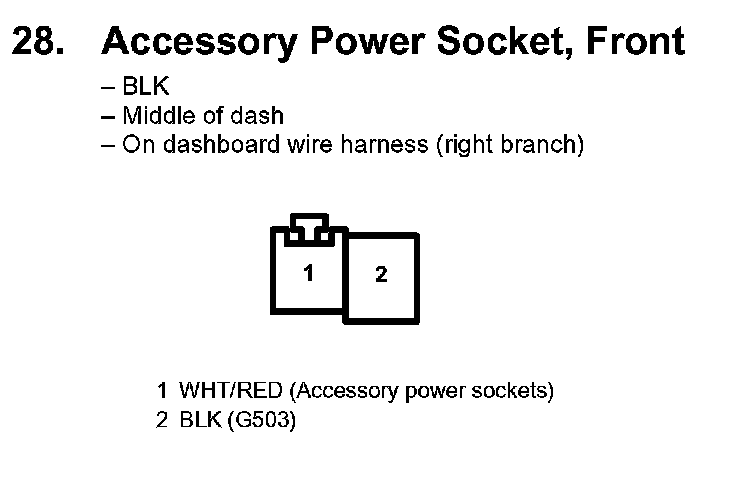

28. Accessory Power Socket, Front:

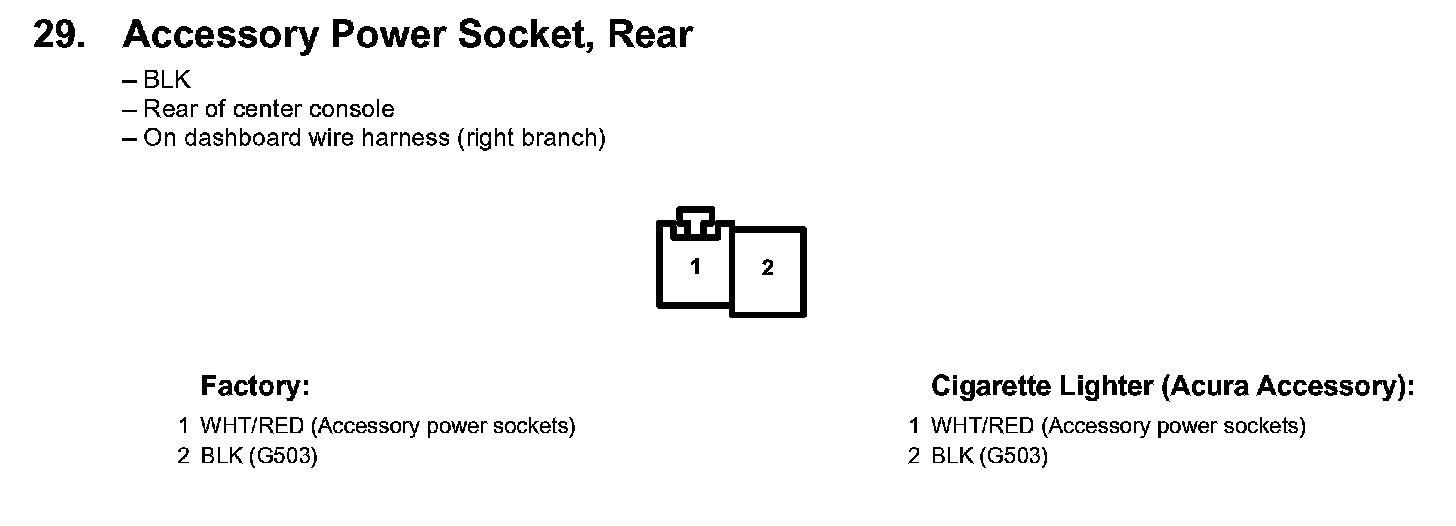

29. Accessory Power Socket, Rear:
