Power Seat Motor Position Sensor
Power Seat Motor Position Sensor

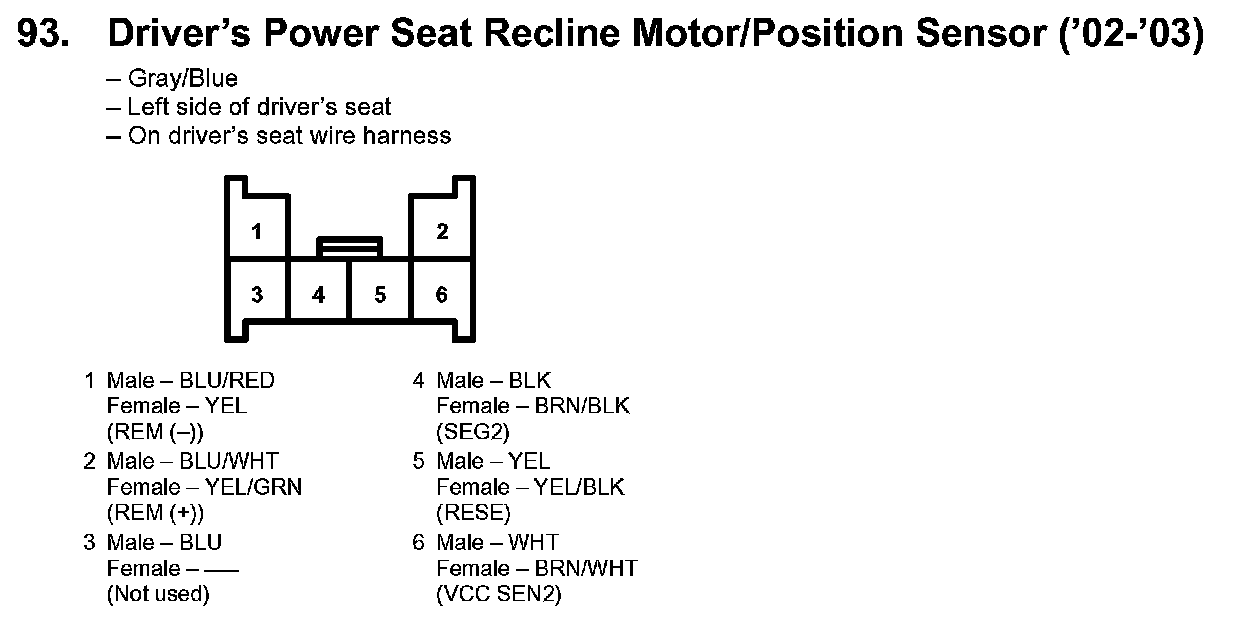

93. Driver's Power Seat Recline Motor/Position Sensor:
