Home >> Acura >> 2002 >> 3.5RL V6-3474cc 3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 126-143 >> 131

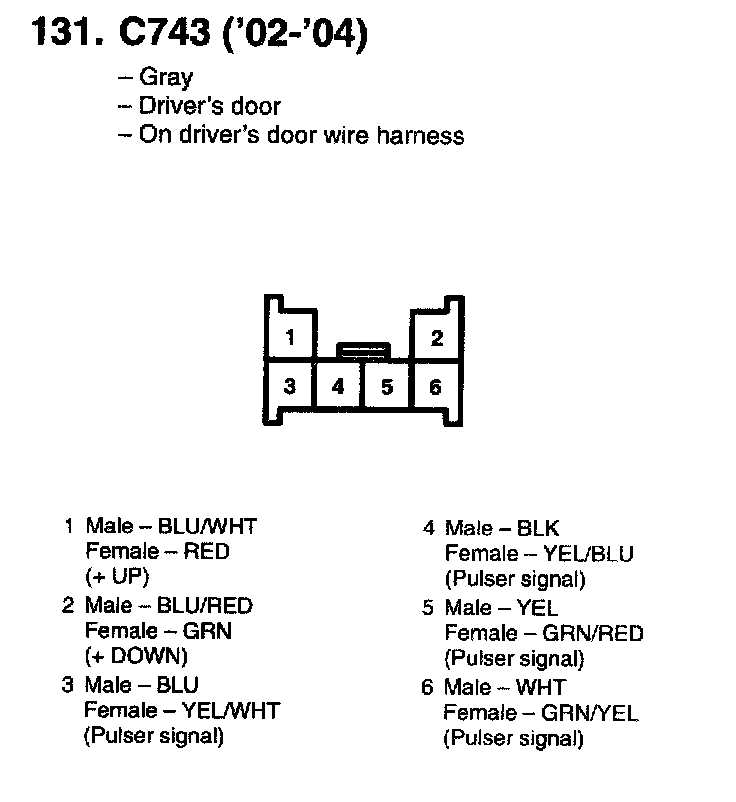

Views 126-143: 131

('02-'04):
