Shift Lever Installation

Shift Lever Installation
1. Install the shift lever assembly.

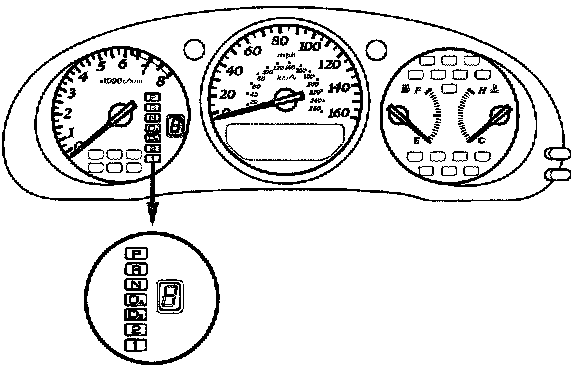

2. Turn the ignition switch ON (II), and verify that the [R] position indicator comes on.





3. If necessary, push the shift cable (A) until it stops, then release your hand. Pull the shift cable back one step so that the shift position is in [R]. Do not hold the shift cable guide (B) to adjust the shift position.
4. Turn the ignition switch OFF.

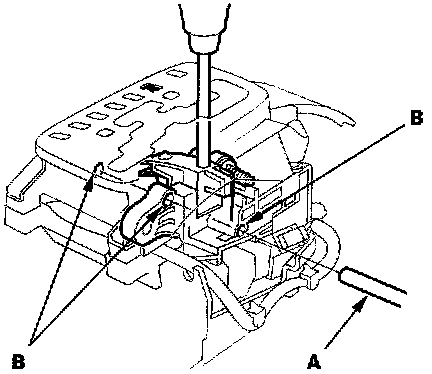

5. Insert a 6.0 mm (0.24 inch) pin (A) into the positioning hole (B) on the shift lever bracket base through the positioning hole on the shift lever assembly. The shift lever is secured in the [R] Position.

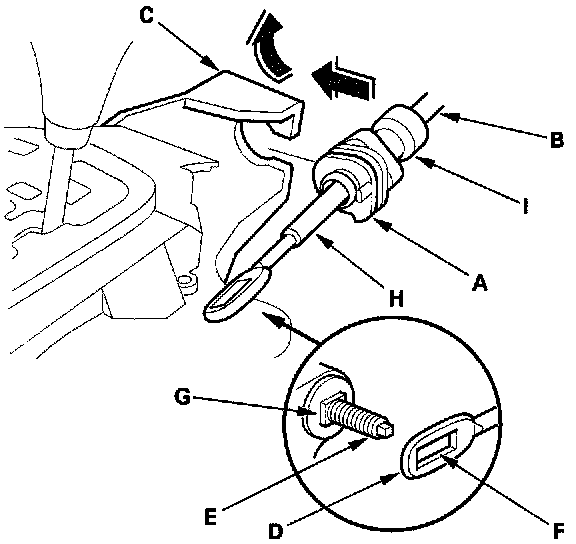

6. Rotate the socket holder (A) on the shift cable (B) toward the shift lever a quarter turn, then slide the holder into the shift lever bracket base (C). Install the shift cable end (D) over the mounting stud (E) by aligning its square hole (F) with the square fitting (G) at the bottom of the stud, and rotate the holder back a quarter turn to secure the shift cable.

NOTE: Do not install the shift cable by twisting the shift cable guide (H) and damper (1).

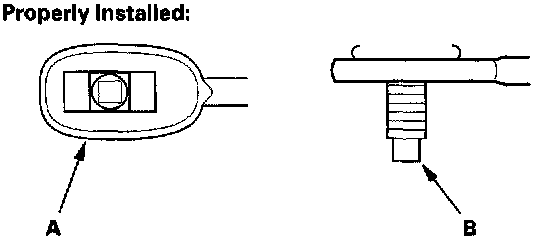

7. Verify that the shift cable end (A) is properly installed on the mounting stud (B).

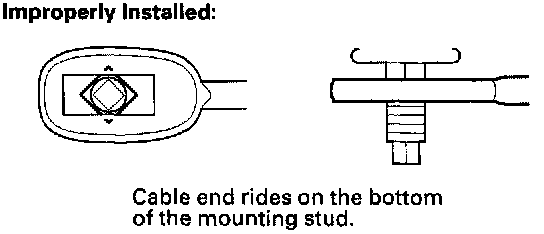

8. If improperly installed, remove the shift cable from the shift lever bracket base, and reinstall the shift cable. Do not install the shift cable end on the mounting stud while the shift cable is on the shift cable bracket base.

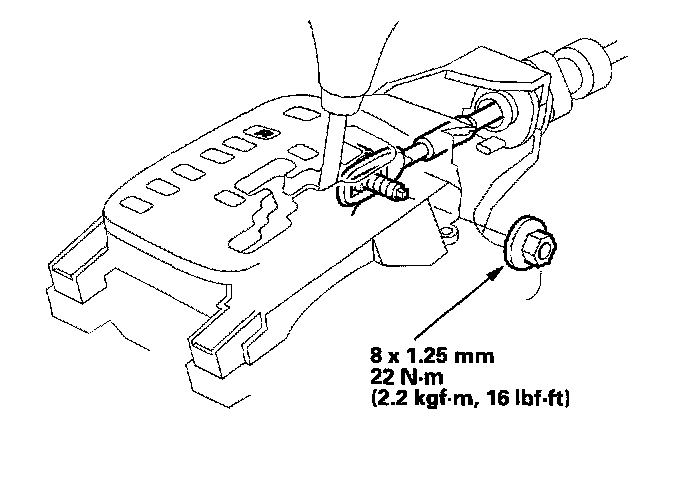

9. Install and tighten the nut.
10. Remove the 6.0 mm (0.24 inch) pin that was installed to hold the shift lever.
11. Connect the shift lock solenoid connector and the A/T shift switch connector.
12. Move the shift lever to each gear, and verify that the A/T gear position indicator follows the A/T gear position switch.
13. Push the shift lock release, and verify that the shift lever releases.
