Lock-Up Control Solenoid -Shift Valve A Replacement

Lock-up Control Solenoid Valve - Shift Control Solenoid Valve A Assembly Replacement

NOTE: Lock-up control solenoid valve/shift control solenoid valve A assembly must be removed/replaced as an assembly.

1. Remove the bolt securing the harness cover connector bracket, then remove the harness cover from the transmission hanger.

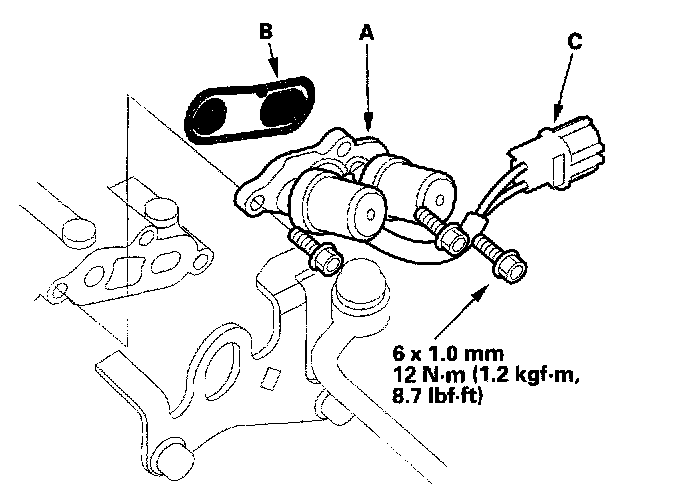

2. Remove the mounting bolts and lock-up control solenoid valve/shift control solenoid valve A assembly (A).
3. Clean the mounting surface and fluid passage, and install a new lock-up control solenoid valve/shift control solenoid valve A assembly with a new filter/ gasket (B).
4. Install the harness cover on the transmission hanger, and install the connector bracket bolt.
5. Install the male terminal connector (C) of the solenoid connector on the harness cover.
6. Check the connector for rust, dirt or oil, then reconnect it.
