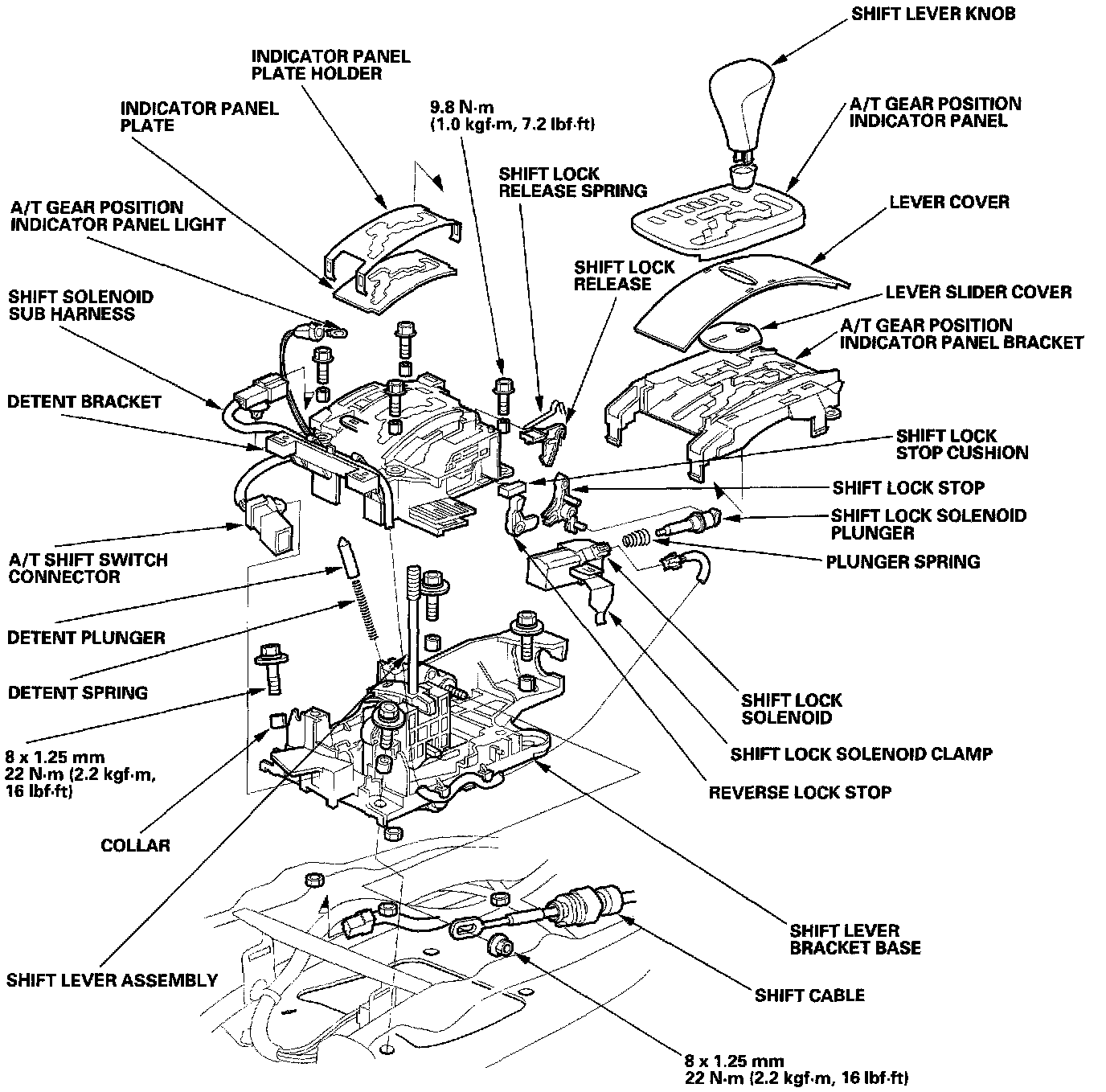

Shift Lever Disassembly/Reassembly

Shift Lever Disassembly/Reassembly





Apply silicone grease to these parts:
- Movable parts of the shift lever.
- Movable parts of the shift lock/reverse lock mechanism.
- Sliding surfaces on the opening of the indicator panel and panel holder.
- Sliding surfaces on the detent plate. Contact surfaces between of the shift lever assembly and the shift lock stop. Detent plunger and detent spring.
