Fluid Line/Hose: Service and Repair

ATF Cooler Hoses Replacement

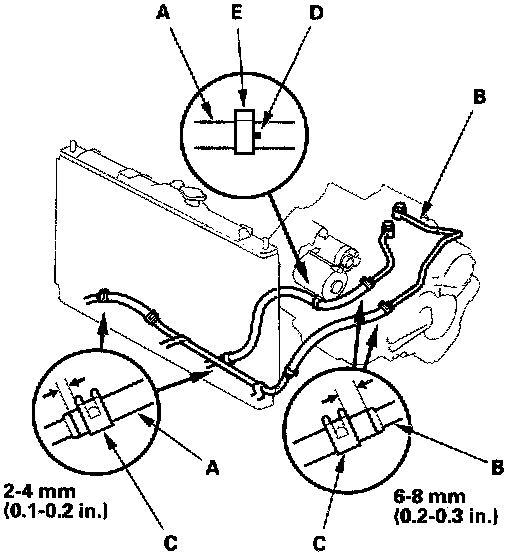

1. Connect the cooler hoses (A) to the lines (B) and the ATF cooler, and secure them with the clips (C).
2. Clamp the ATF cooler hose with the yellow mark (D) on the clamp (E).
