Before removing the airbag or SRS related devices (the SRS unit and the cable reel), disconnecting connectors from SRS related devices, or removing the dashboard or the steering column, disconnect the airbag connectors from the airbags to prevent accidental deployment.

Turn the ignition switch OFF and disconnect the negative cable from the battery, and wait at least 3 minutes before beginning the following procedures.

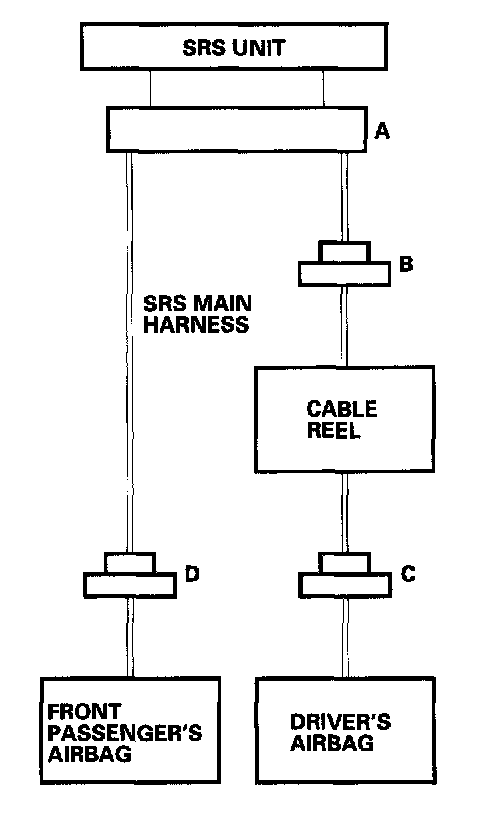

- Before disconnecting the SRS main harness 18P connector (A) from the SRS unit, disconnect both airbag 2P connectors (C, D).




- Before disconnecting the cable reel 2P connector (B), disconnect the driver's airbag 2P connector (C).

Disconnect the negative battery cable, and wait at least 3 minutes.

Driver's Airbag:

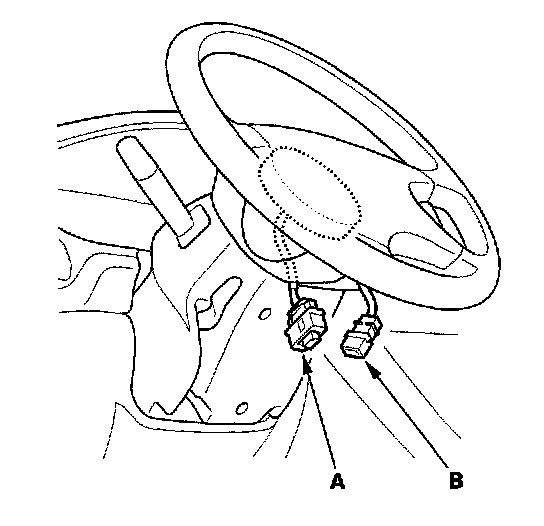

Remove the access panel from the steering wheel, then disconnect the driver's airbag 2P connector (A) and cable reel 2P connector (B).

Front Passenger's Airbag:

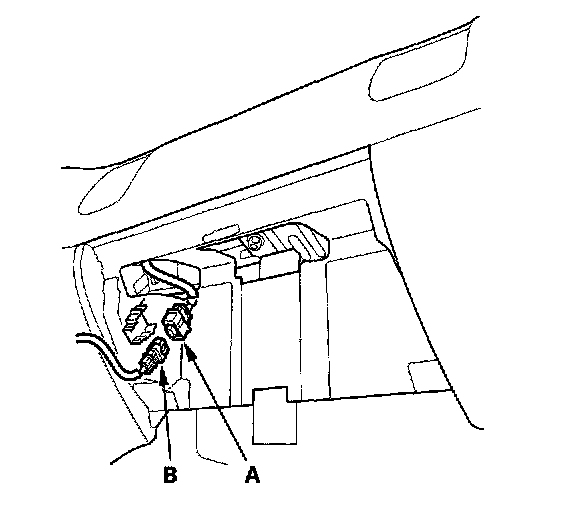

Remove the glove box, then disconnect the front passenger's airbag 2P connector (A) and SRS main harness 2P connector (B).
