Home >> Acura >> 1999 >> TL V6-3206cc 3.2L SOHC MFI >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Diagnostic Connector >> Locations

Diagnostic Connector: Locations

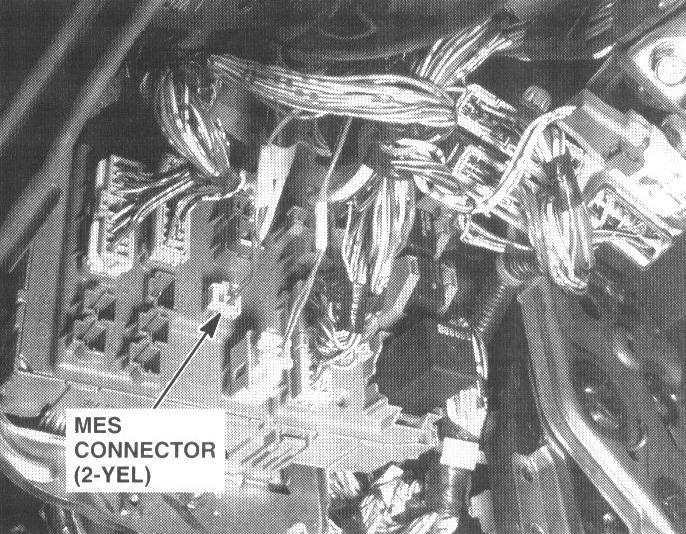

53. At Driver's Under-dash Fuse/Relay Box:

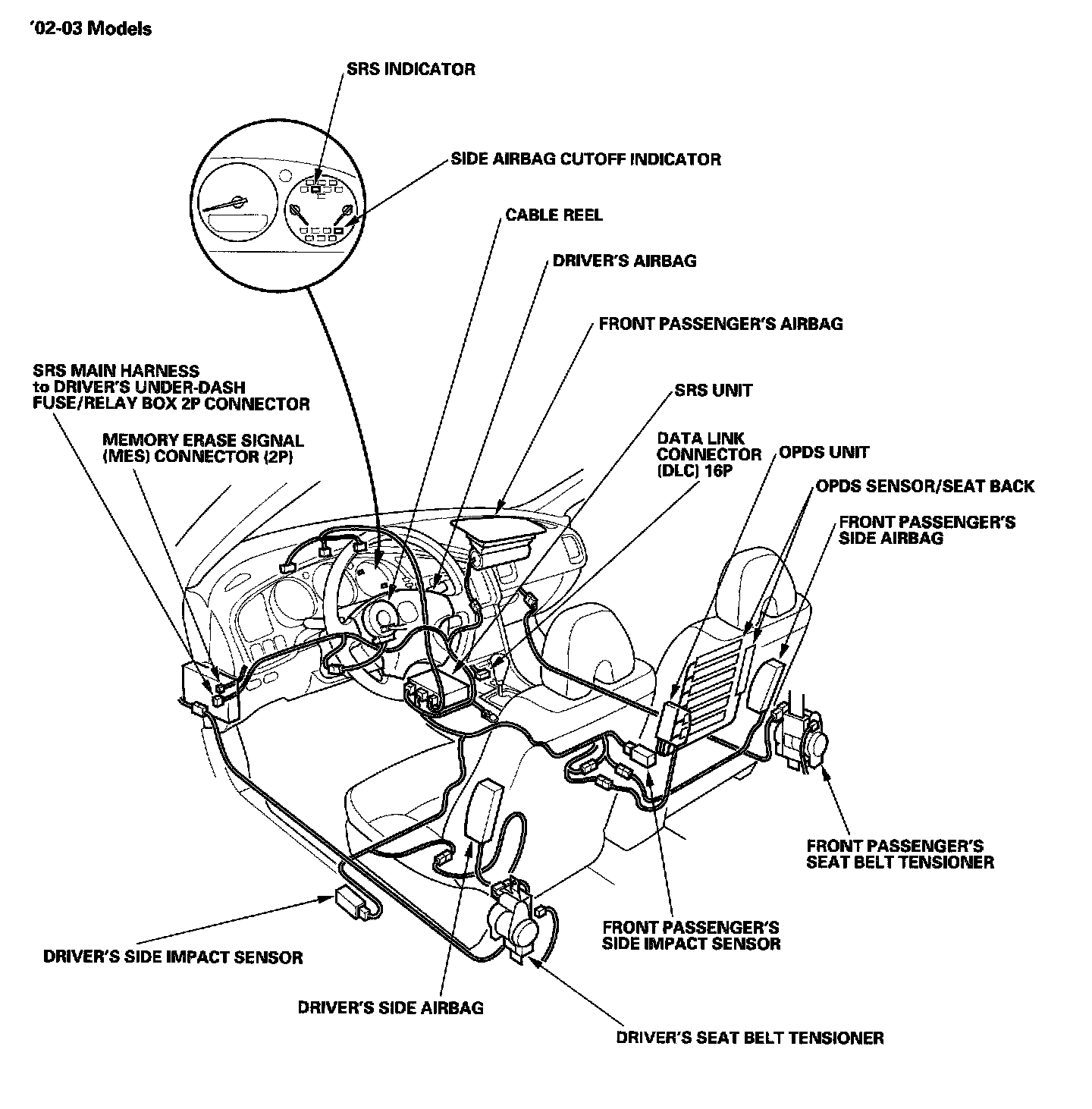

SRS - Component Location Index:
