Home >> Acura >> 1999 >> TL V6-3206cc 3.2L SOHC MFI >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Variable Induction System >> Variable Induction Control Valve >> Locations

Variable Induction Control Valve: Locations

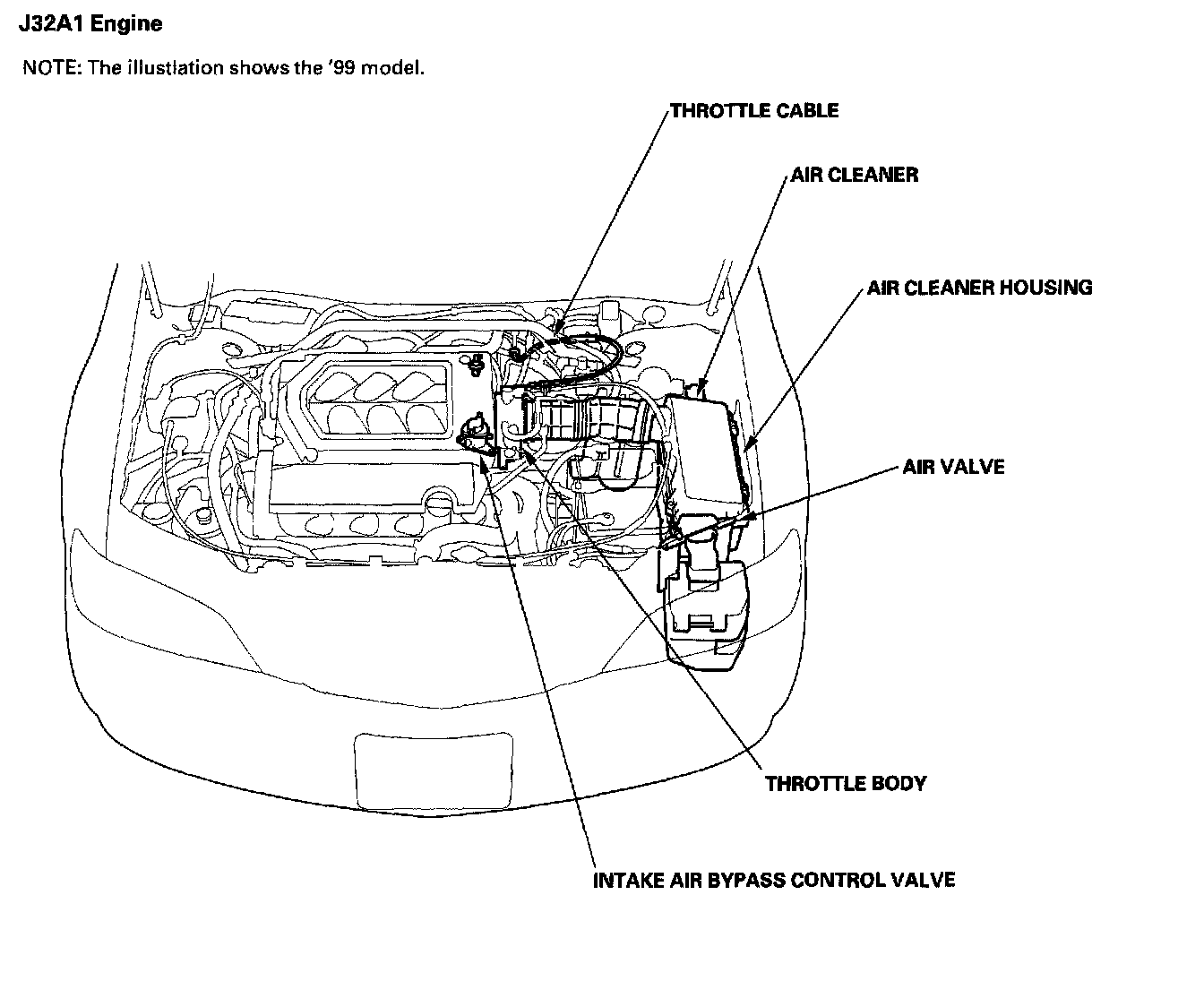

Intake Air System - Component Location Index:

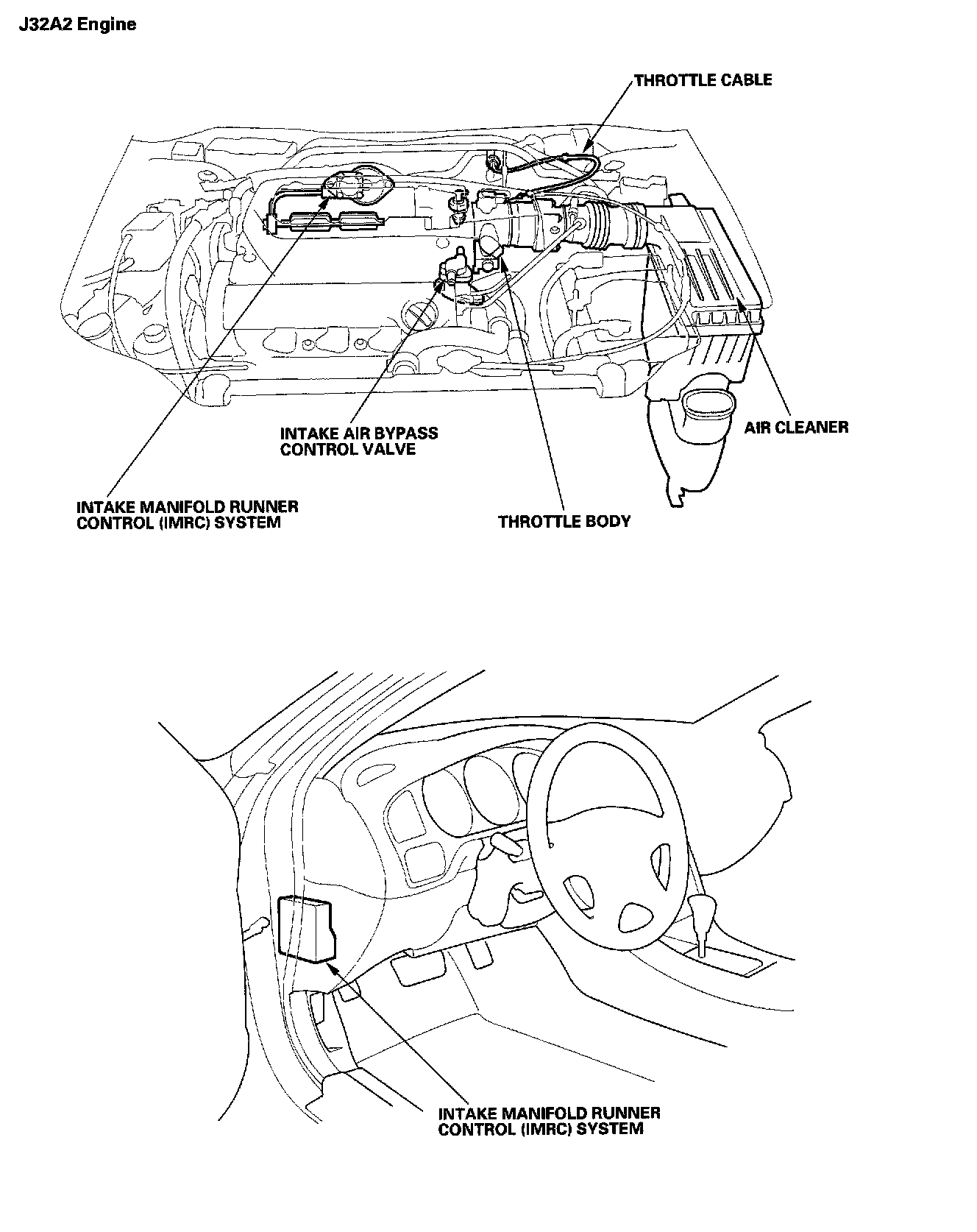

Intake Air System - Component Location Index:
