Home
>>
Acura
>>
1999
>>
TL V6-3206cc 3.2L SOHC MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Main Relay (Computer/Fuel System)
>>
Diagrams
>>
Connector Views
Connector Views

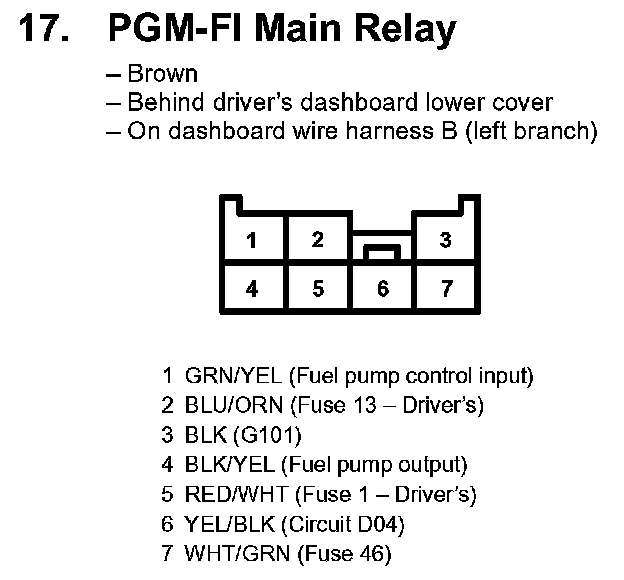

17. PGM-FI Main Relay:
