Auxiliary Power Outlet: Locations

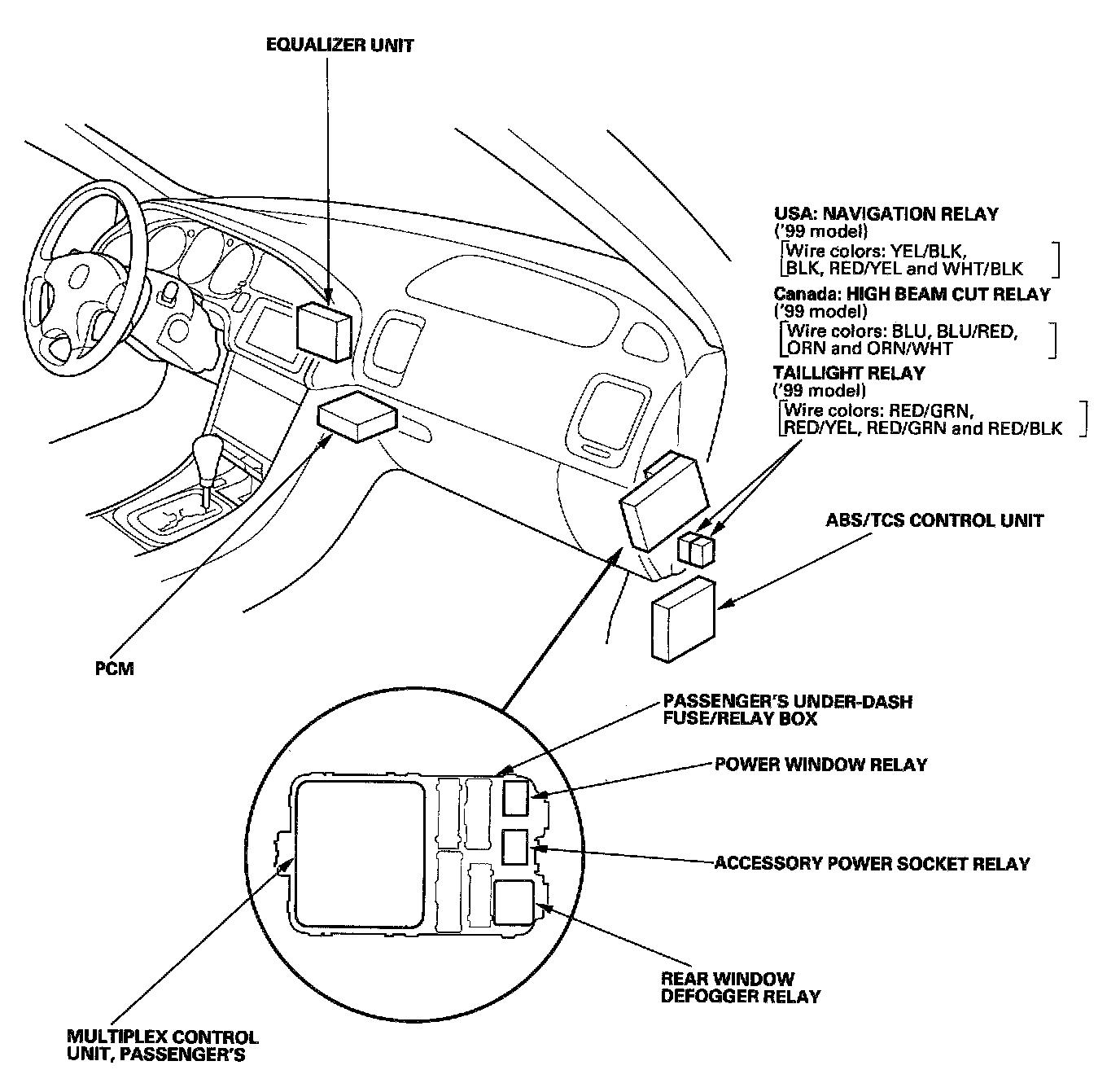

Instrument Panel View (Right Side):

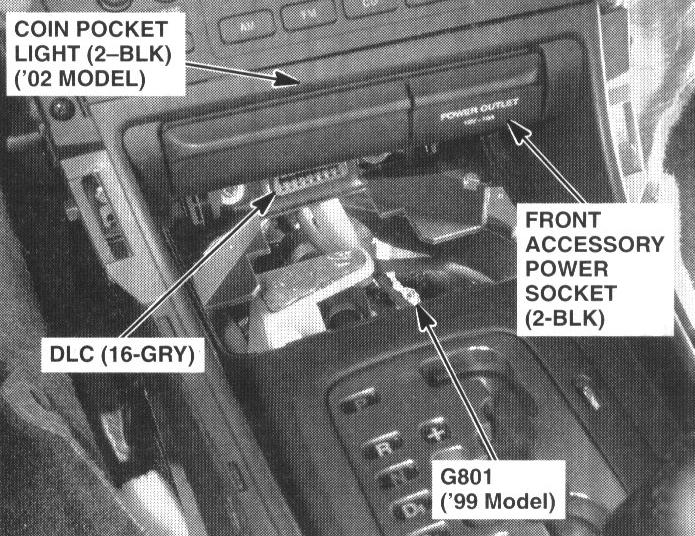

69. In Center Console (Panel Tray Removed):

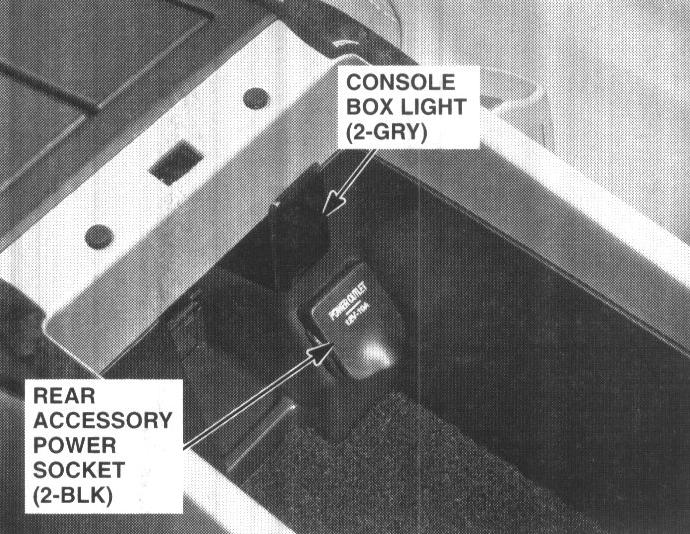

71. In Rear Console Box:
