Home >> Acura >> 1999 >> TL V6-3206cc 3.2L SOHC MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Global Positioning System >> Global Positioning System Display Unit

Global Positioning System Display Unit

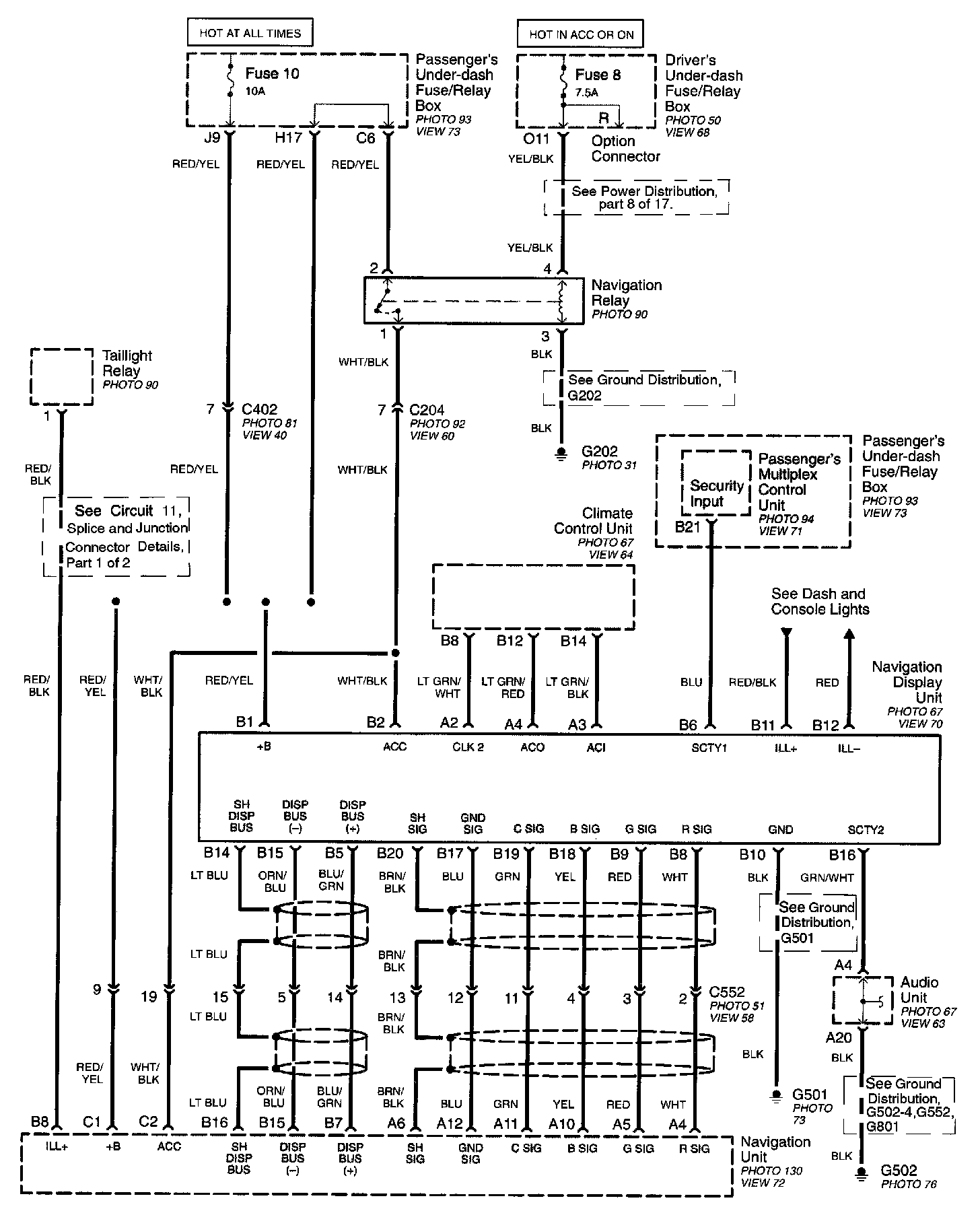

Part 1 Of 2:

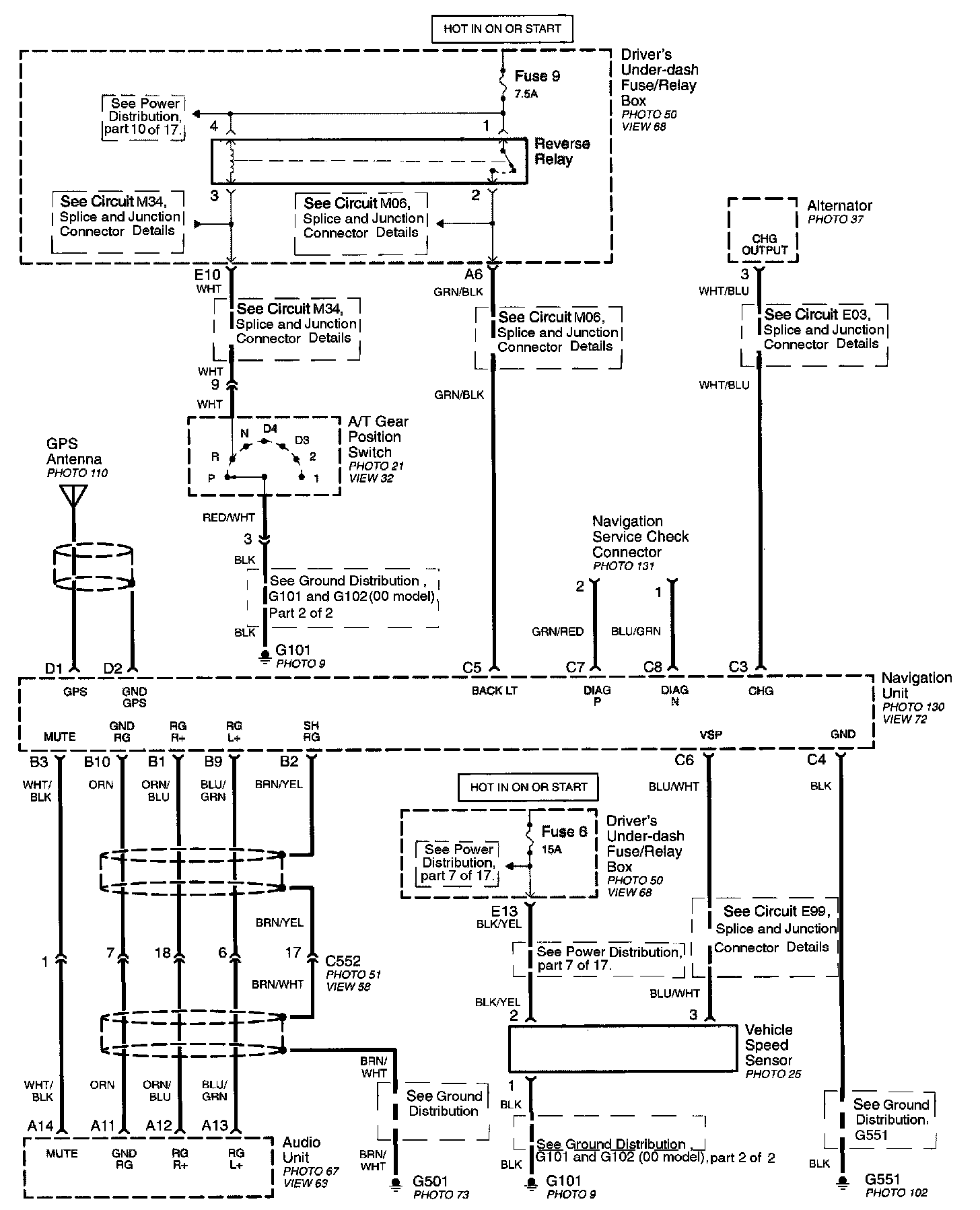

Part 2 Of 2:
