Front Seat Disassembly/Reassembly - 4-Way Power

Front Seat Disassembly/Reassembly - 4-Way Power

'99 Model

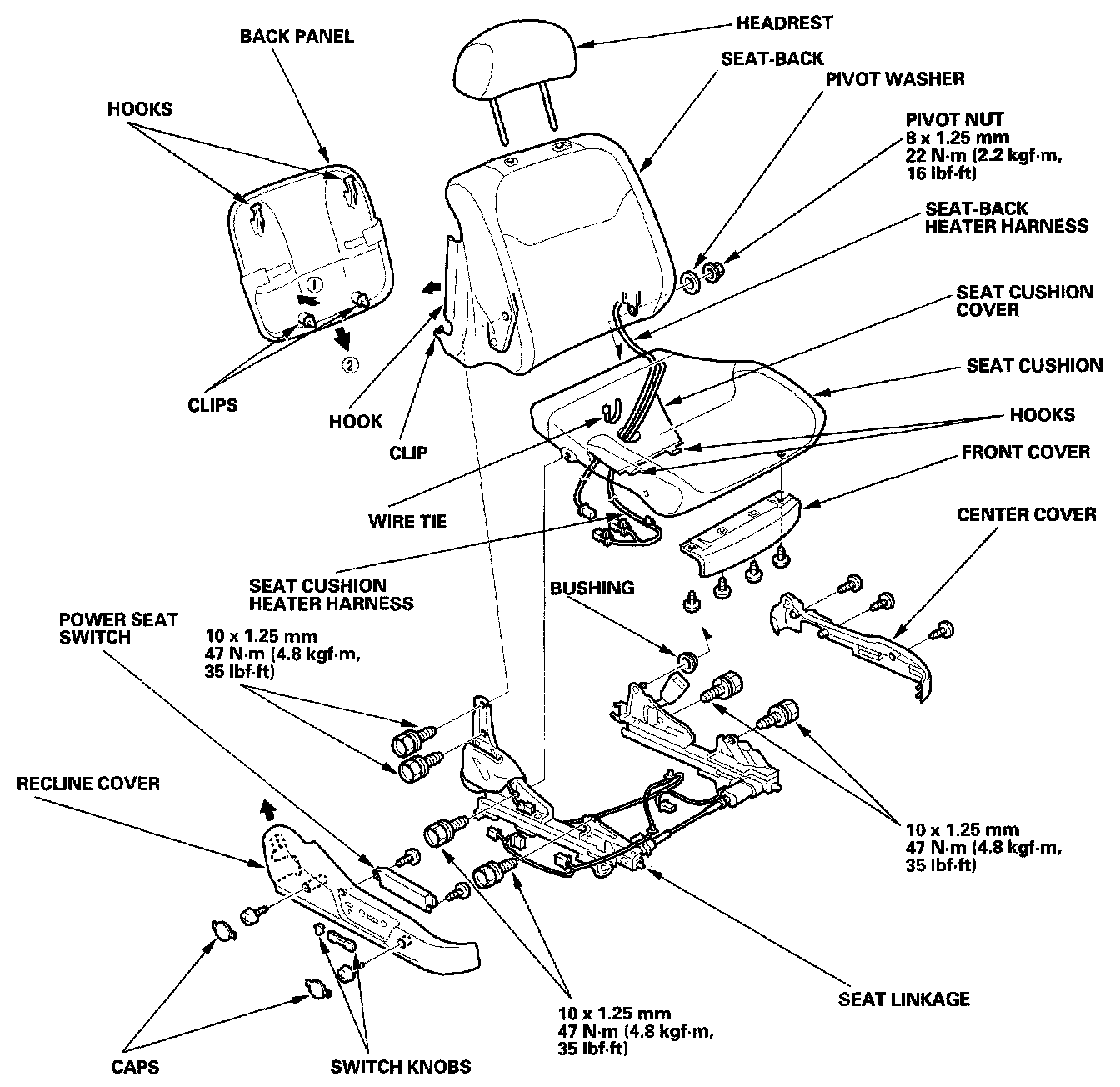

1. Disassemble the front seat as shown.




2. Reassemble the seat in the reverse order of disassembly, and note these items:
- Route the seat wire harness correctly.
- Make sure the bushing and pivot washer are installed correctly.
- Apply multipurpose grease to the moving portion of the seat track.
- To prevent wrinkles in the seat-back cover, stretch the material evenly over the pad.
