Home >> Acura >> 1999 >> TL V6-3206cc 3.2L SOHC MFI >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Element >> Locations >> Connector Locations

Connector Locations

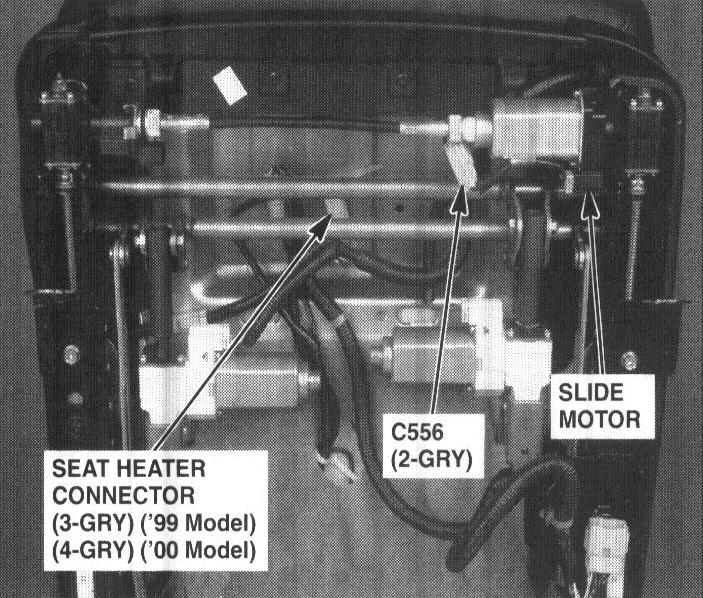

Bottom of Driver's Seat

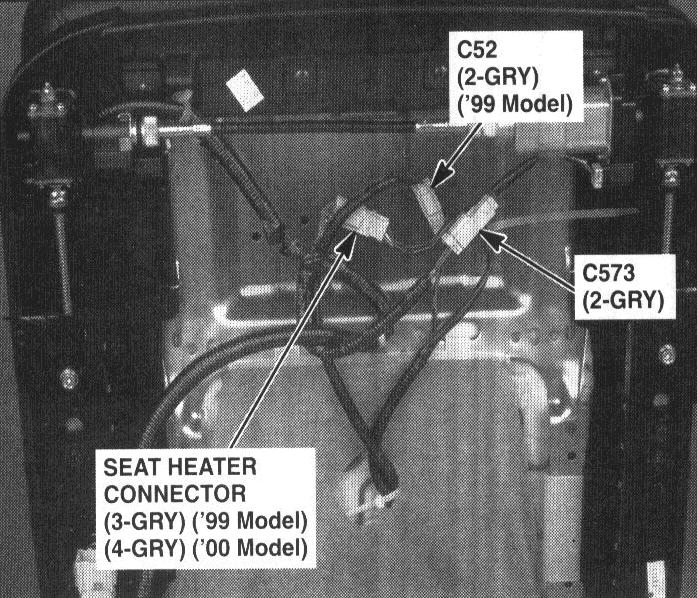

Bottom of Front Passenger's Seat
