Front Fender Liner: Service and Repair

Inner Fender Replacement

NOTE: Take care not to scratch the body.

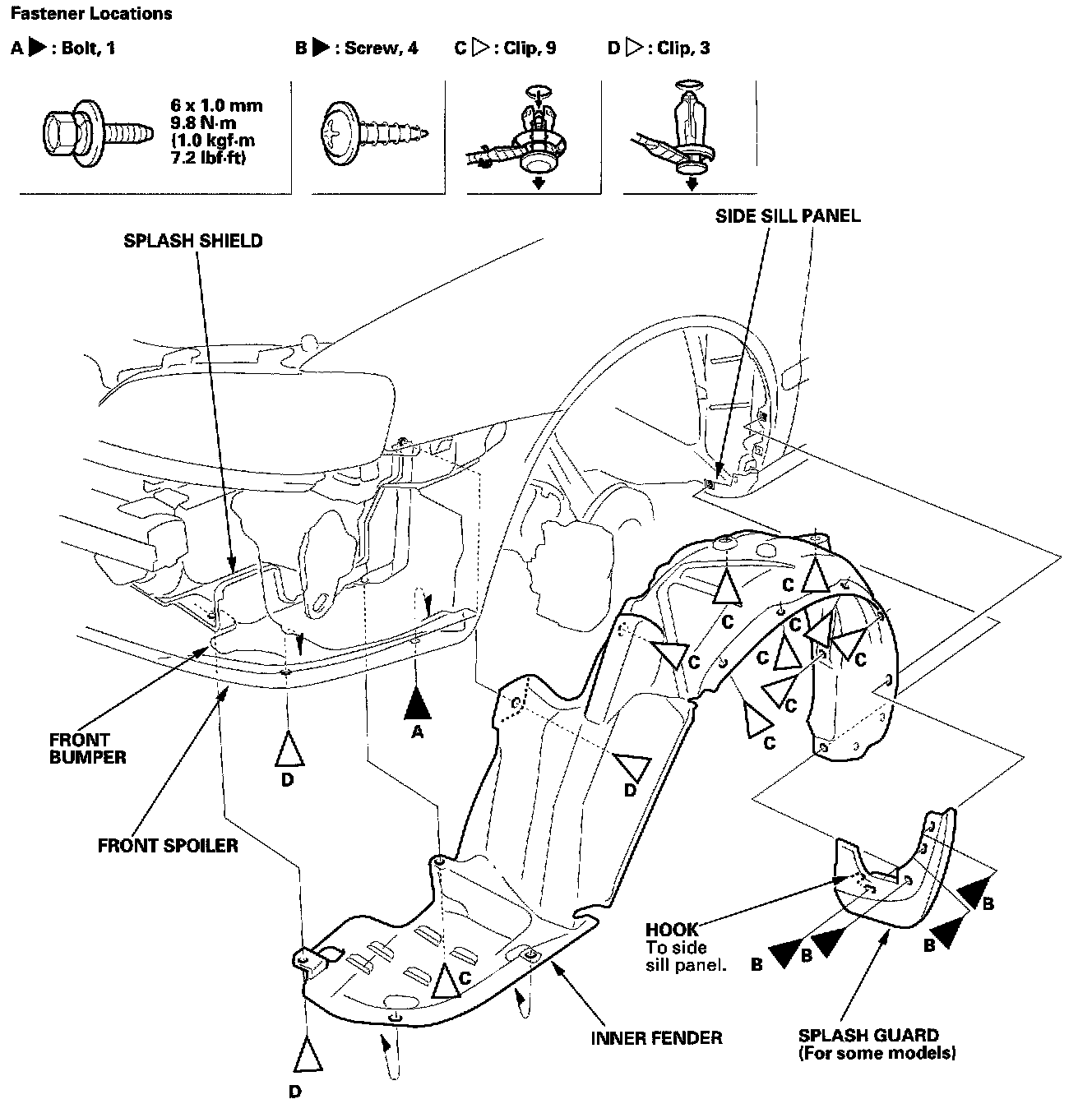

1. Remove the inner fender as shown.




2. Install the inner fender in the reverse order of removal, and replace any damaged clips.
