Wire Harness Replacement

Wire Harness Replacement
1. Remove the modulator unit.

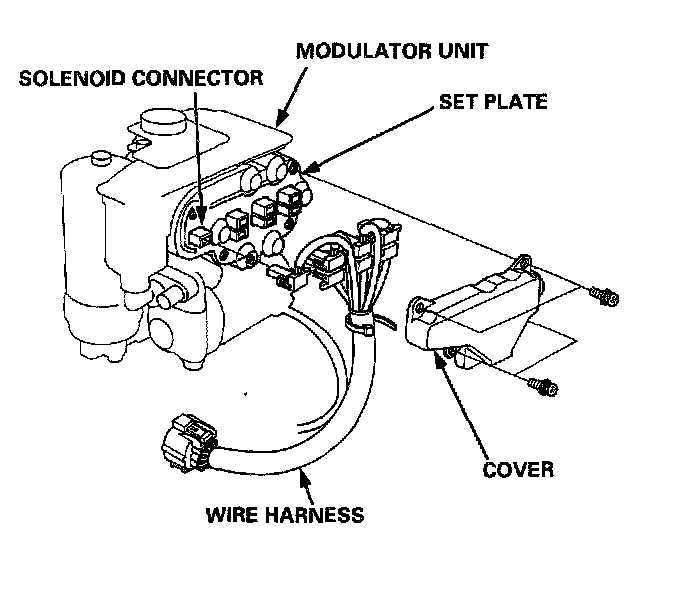

2. Remove the cover, then remove the wire harness.

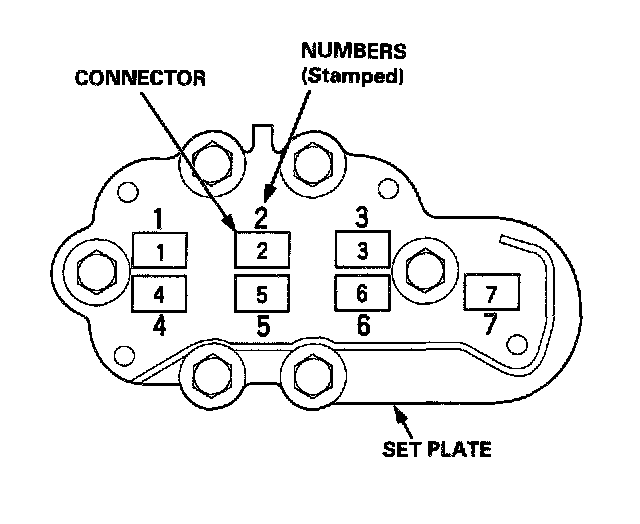

3. Check the numbers stamped on the set plate, and connect each connector of the new wire harness to the set plate with the corresponding number.

CAUTION: This Rep is important. After connecting, recheck the wire harness installation.

4. Install the cover.
5. Perform modulator unit installation.
