Ball Joint Replacement
Ball Joint Replacement1. Remove the knuckle.
2. Remove the boot by prying the set ring off.
3. Check the boot for deterioration and damage, replace if necessary.

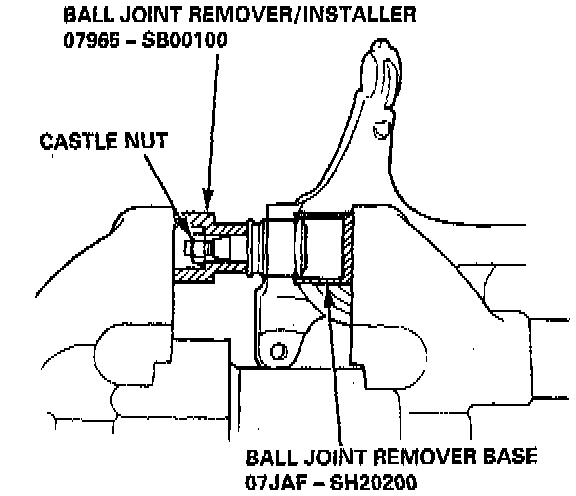

4. Install the special tools on the ball joint and tighten the castle nut.
5. Position the special tools over the ball joint as shown then set the assembly in a vise. Press the ball joint out of the knuckle.
6. Place the ball joint in position by hand.

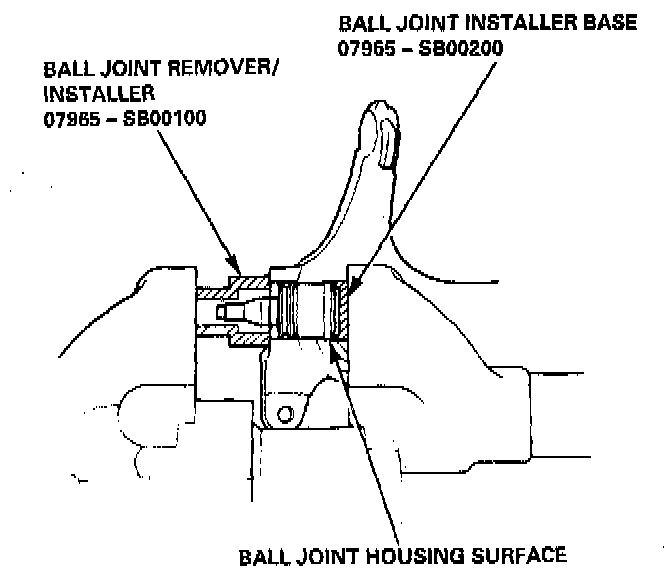

7. Install the special tools over the ball joint as shown, then press the ball joint pin.

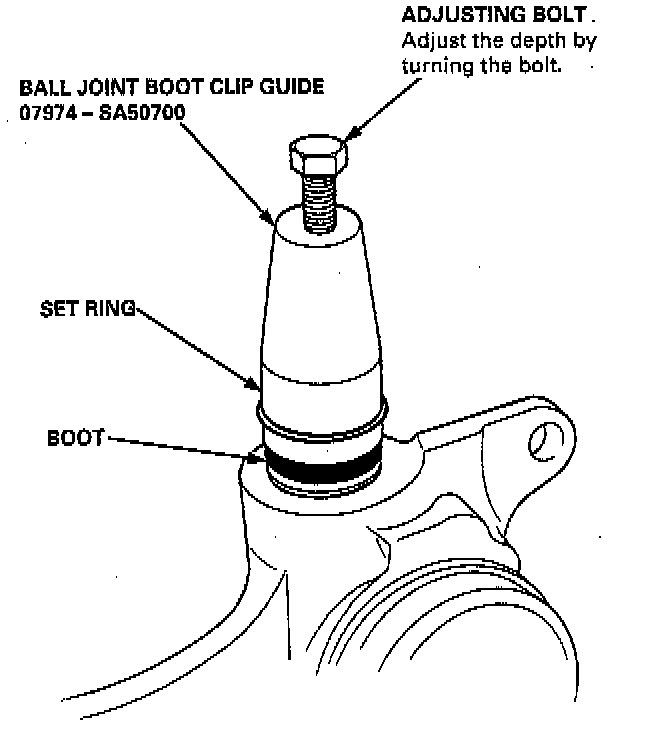

8. Install the ball joint boot and set ring using the special tool.
9. Install the knuckle.
10. Check the front wheel alignment and adjust if necessary.
