Curiosii for ever!: Car repair manuals for everyone.
Home >> Acura >> 1999 >> Integra GS-R Sedan L4-1797cc 1.8L DOHC (VTEC) MFI >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Key Reminder Switch >> Diagrams >> Electrical Diagrams

Electrical Diagrams

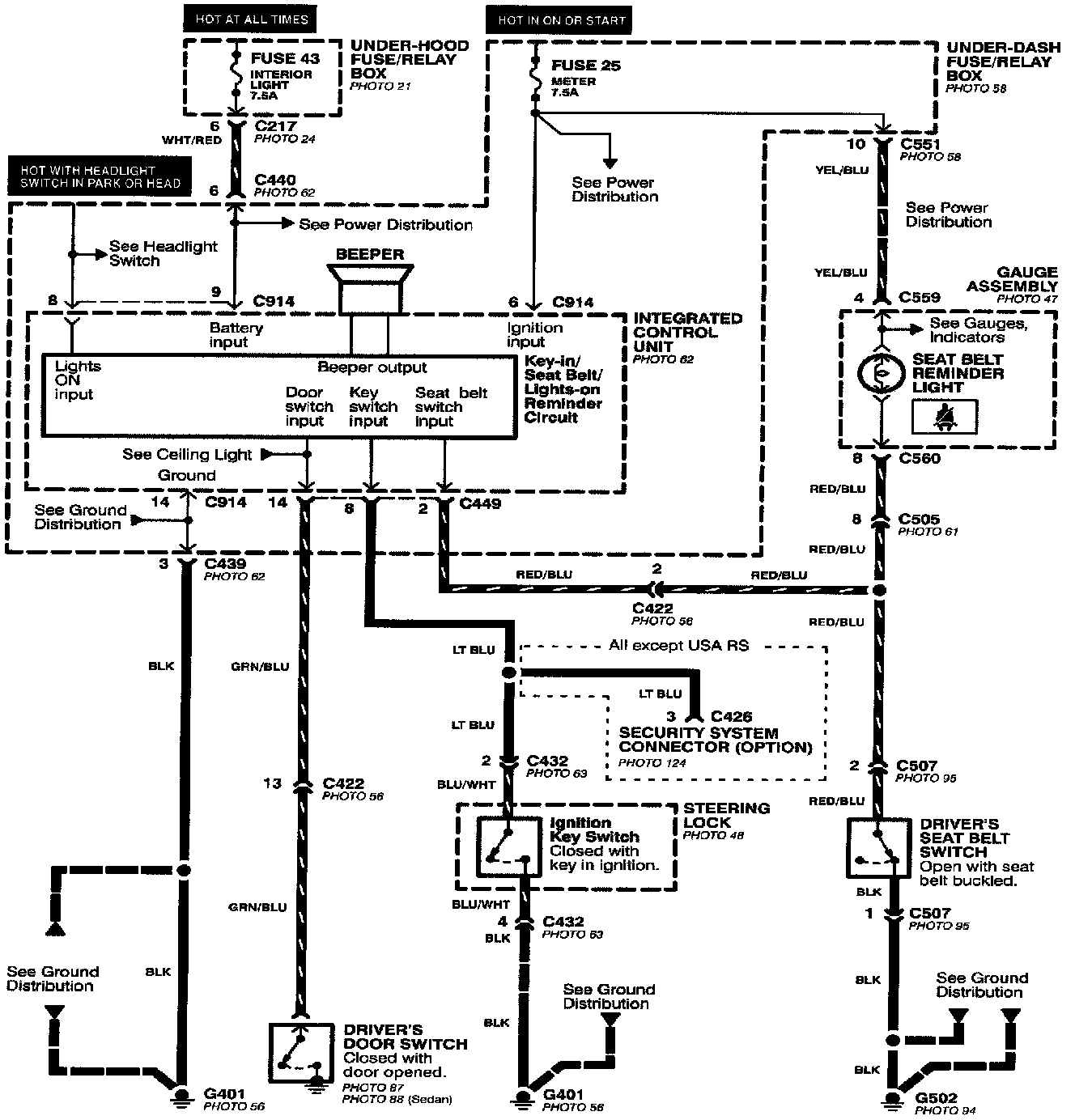

Seat Belt, Lights-On And Ignition Key Reminders:
