Seat Belt Buckle Replacement

CAUTION: Check the front seat belts for damage, and replace them if necessary. Be careful not to damage them during removal and installation.


1. Remove the rear console.

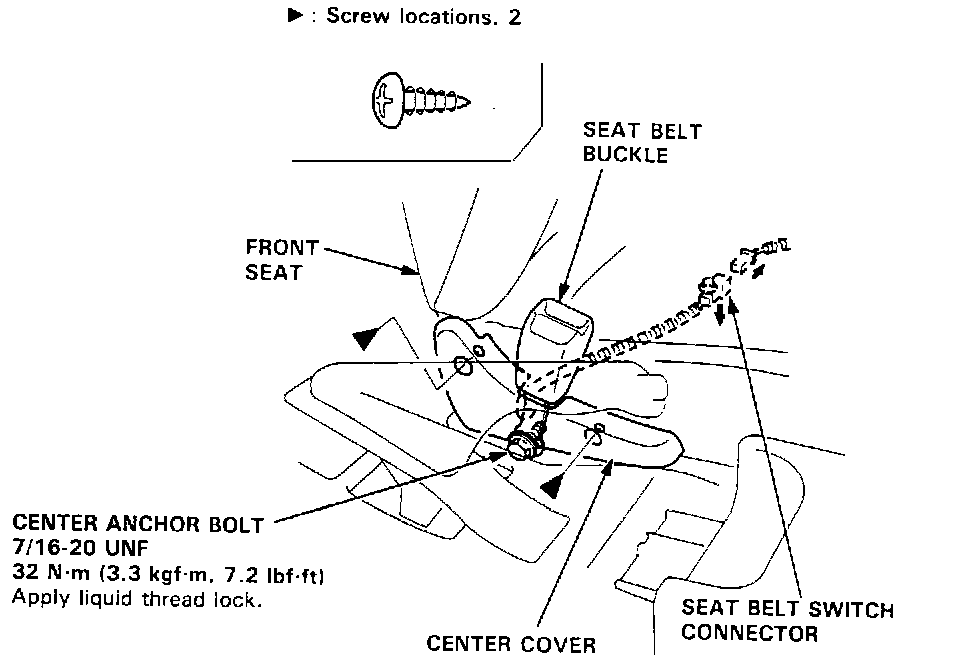

2. Slide the front seat until you can remove the screw, then remove the center cover.
3. Disconnect the seat belt switch connector (driver's), remove the center anchor bolt, then remove the seat belt buckle.

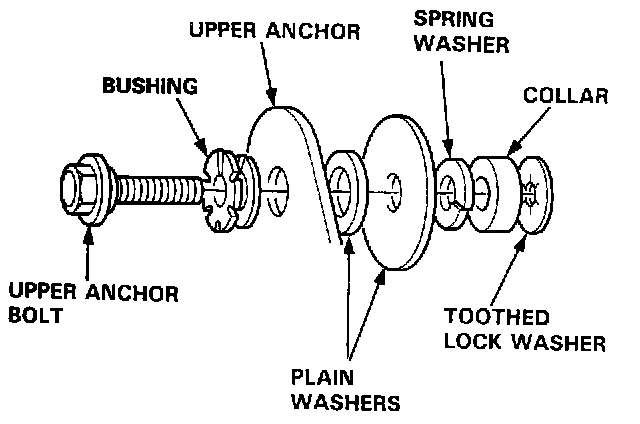

Hatchback / Upper Anchor Bolt:

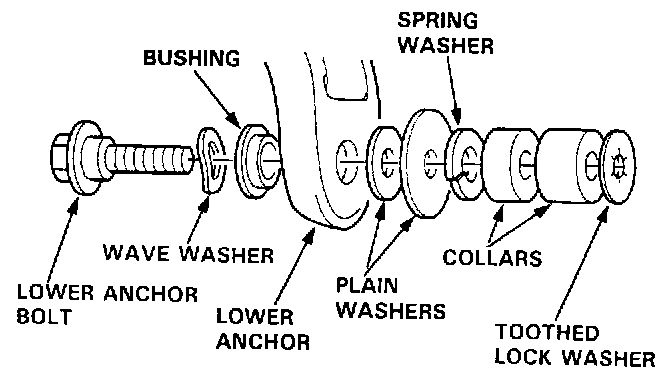

Hatchback / Lower Anchor Bolt:

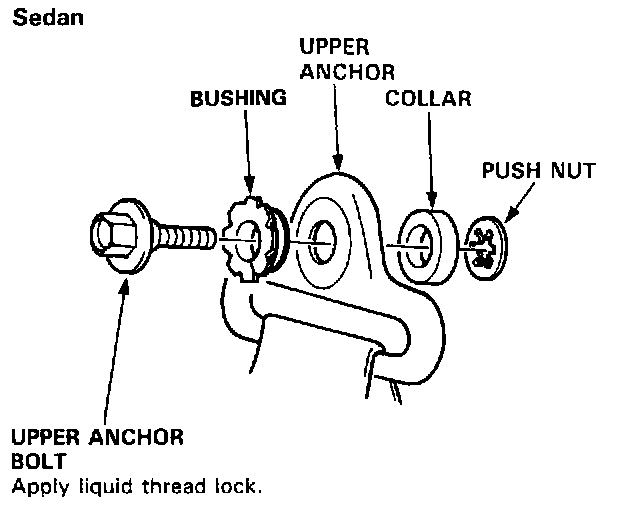

Sedan / Upper Anchor Bolt:

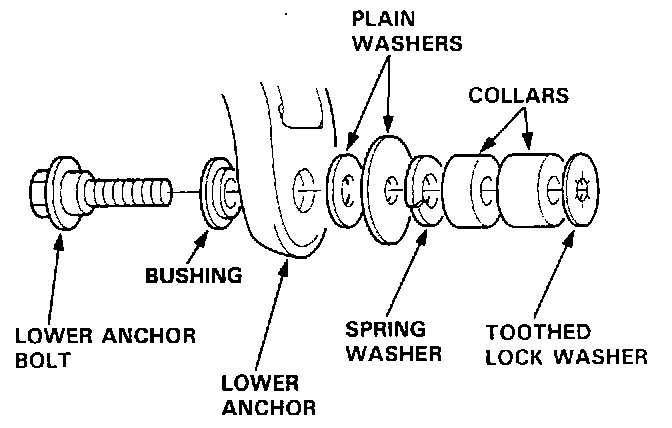

Sedan / Lower Anchor Bolt:

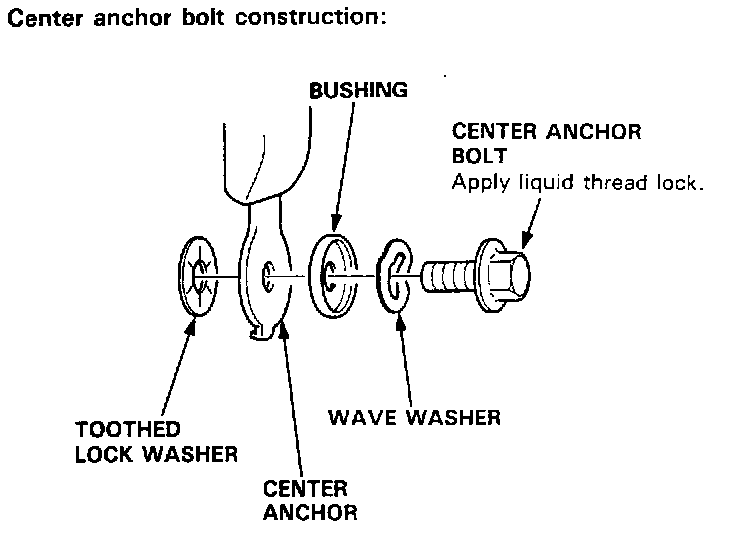

Center Anchor Bolt:

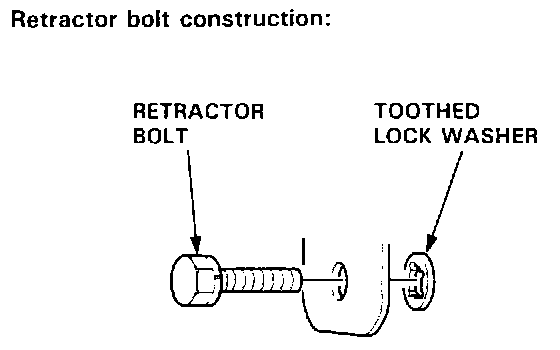

Retractor Bolt:

Installation is the reverse of the removal procedure.

NOTE:
- Make sure you assemble the washers and collars on the upper and lower anchor bolts as shown
- Before attaching the side trim panel (Hatchback) or center pillar lower trim (Sedan), make sure there are no twists or kinks in the front seat belt.
