Integra GS-R Sedan L4-1797cc 1.8L DOHC (VTEC) MFI
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Malfunction Lamp / Indicator
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

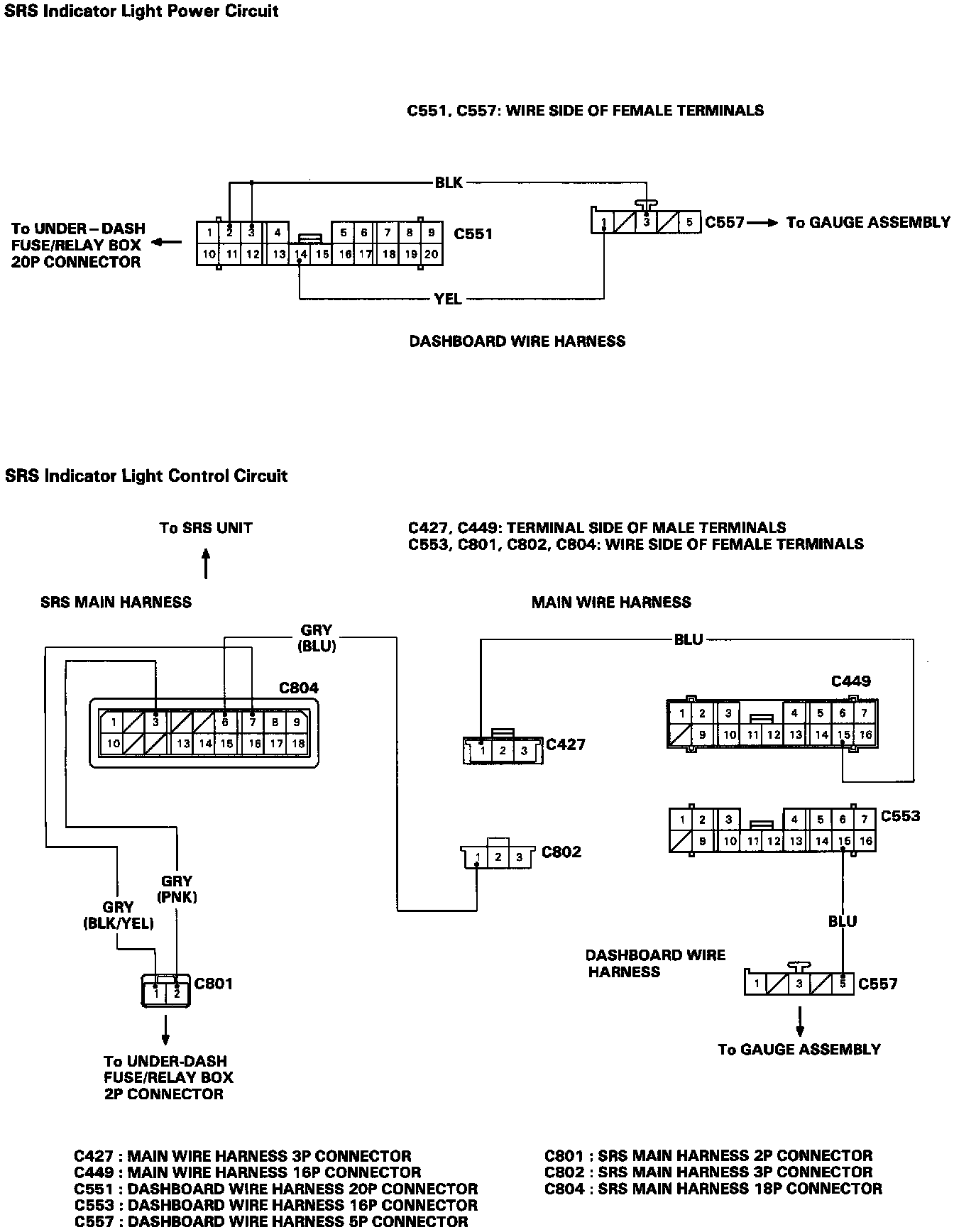

SRS Indicator Light Wire Connections:
SRS Indicator Light Wire Connections:
