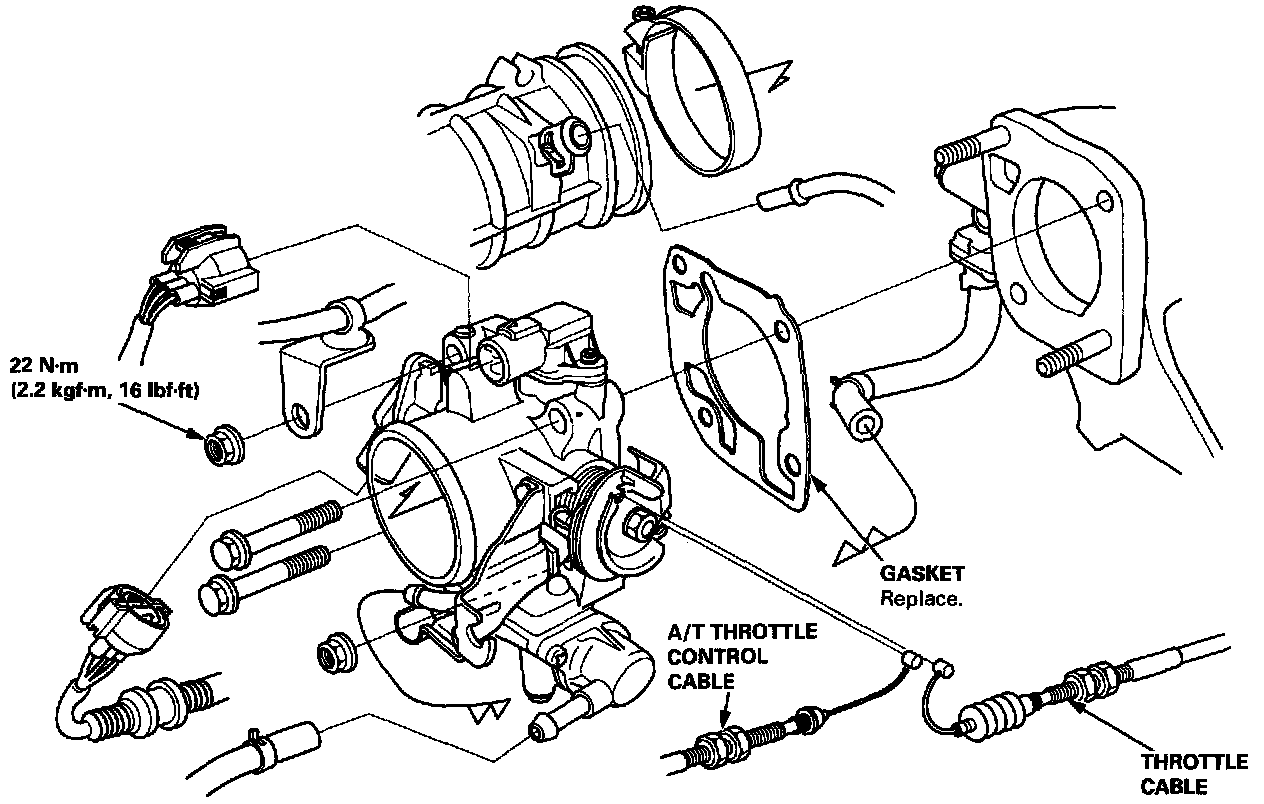

Throttle Body: Service and Repair

Disassembly

NOTE:
- The throttle stop screw is non-adjustable.
- After reassembly, adjust the throttle cable and A/T throttle control cable for cars with A/T.
- The TP sensor is not removable.
