Glove Box Lamp: Testing and Inspection

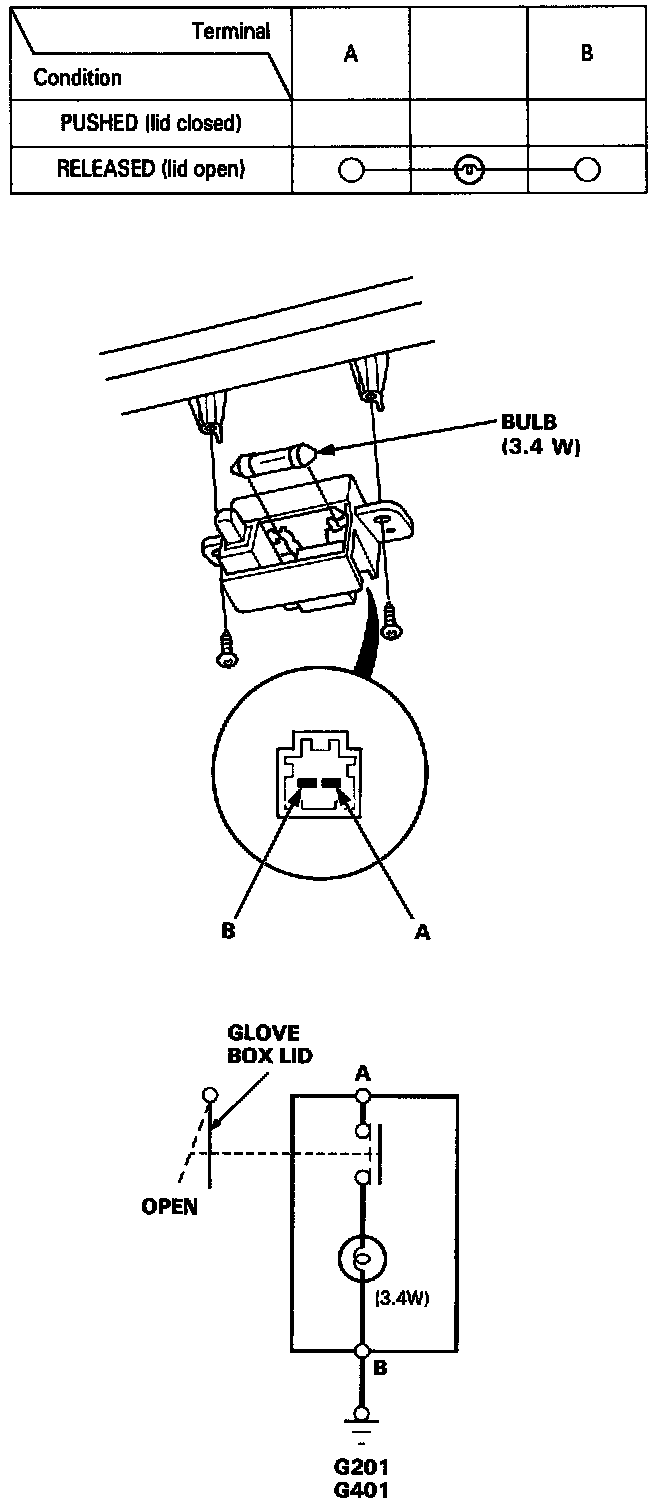

GLOVE BOX LIGHT / TEST1. Remove the glove box and disconnect the 2-P connector.
2. Check for continuity between the A and B terminals in each condition according to the table.
1. Remove the glove box and disconnect the 2-P connector.
2. Check for continuity between the A and B terminals in each condition according to the table.
