Cylinder Head Disassembly

NOTE: Identify valves and valve springs as they are removed so that each item can be reinstalled in its original position.

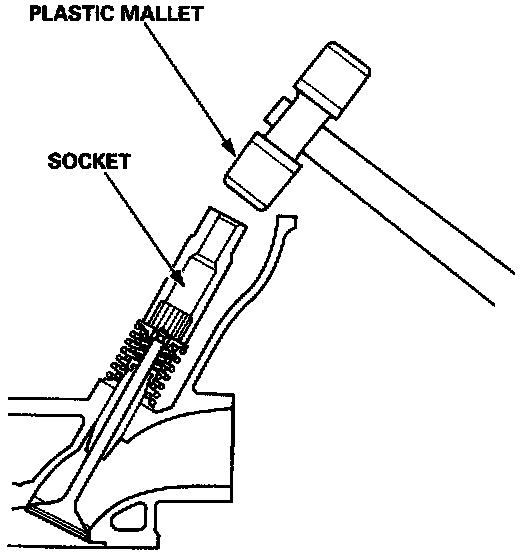

1. Using an appropriate-sized socket and plastic mallet, lightly tap the valve retainer to loosen the valve keepers before installing the valve spring compressor.

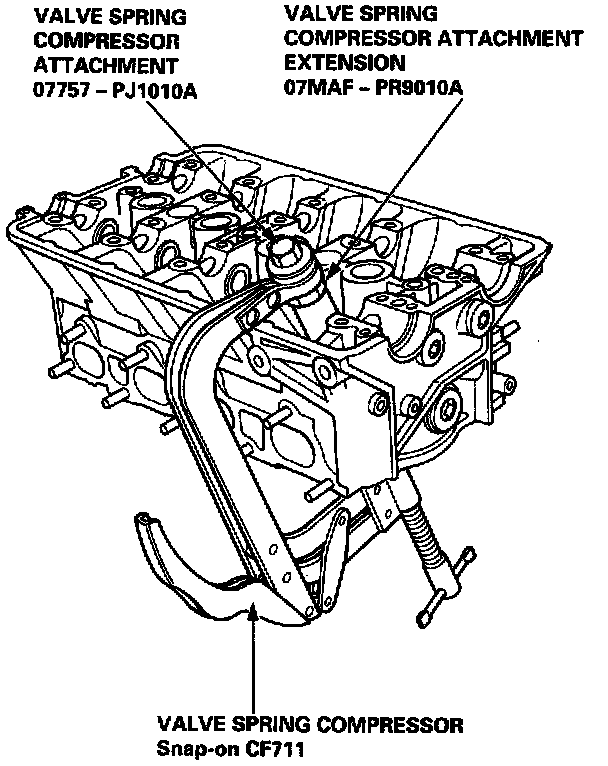

2. Install spring compressor. Compress spring and remove valve keeper.

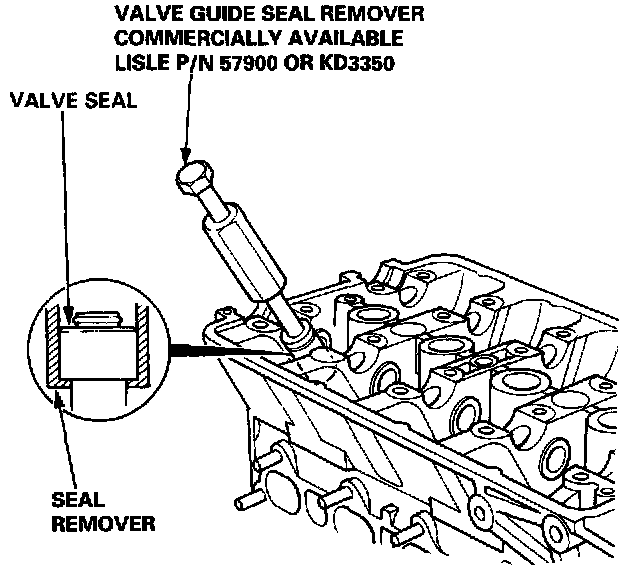

3. Install the special tool as shown.

Valve Dimensions:

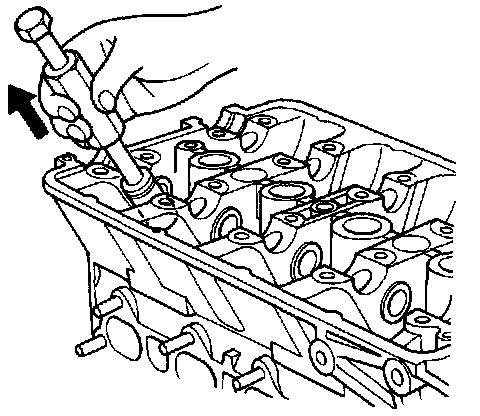

4. Remove the valve guide seal.
