Installation

1. Install the lost motion assemblies.
2. Install the rocker arms in the reverse order of removal:
- Valve adjusting locknuts should be loosened and adjusting screw backed off before installation.
- The component parts must be reinstalled in the original locations.





3. Install the rocker arms while inserting the rocker arm shaft into the cylinder head.

NOTE: Remove the rubber band after installing the rocker arms.

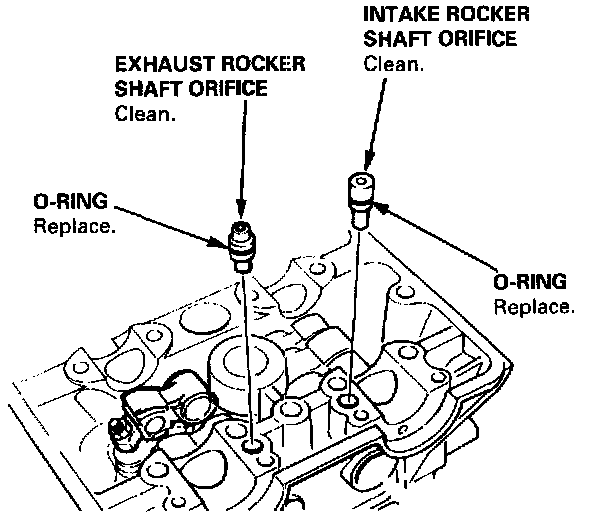

4. Clean and install the rocker shaft orifices with new O-rings. If the holes in the rocker arm shaft and cylinder head are not in line with each other, screw a 12 mm bolt into the rocker arm shah and rotate the shaft.

NOTE: The shapes of the rocker shaft orifices for the intake and exhaust are different. The orifices must be installed in the original locations.
