Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Acura
>>
1999
>>
Integra GS-R Sedan L4-1797cc 1.8L DOHC (VTEC) MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Rear Wiper/Washer
Rear Wiper/Washer

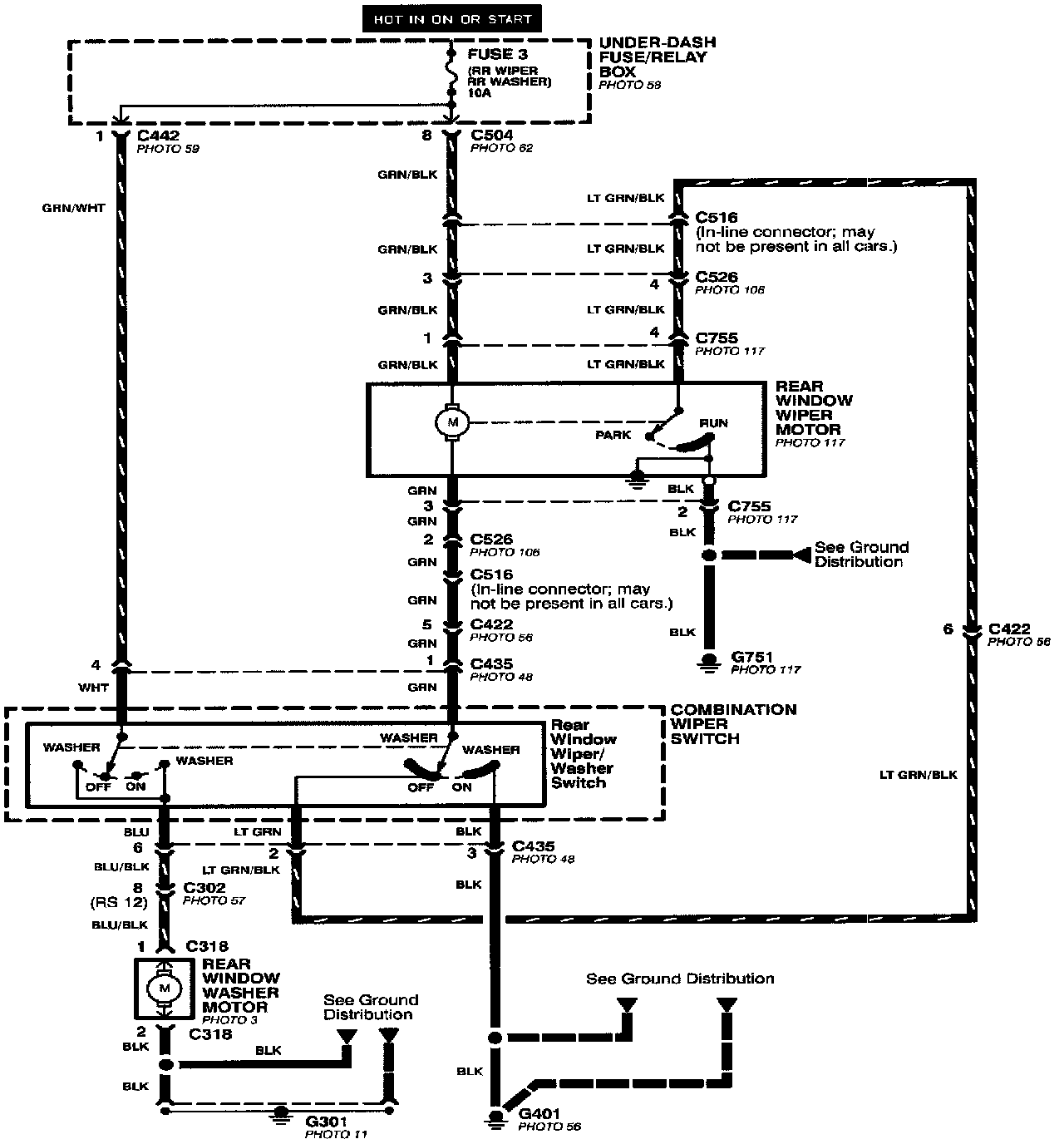

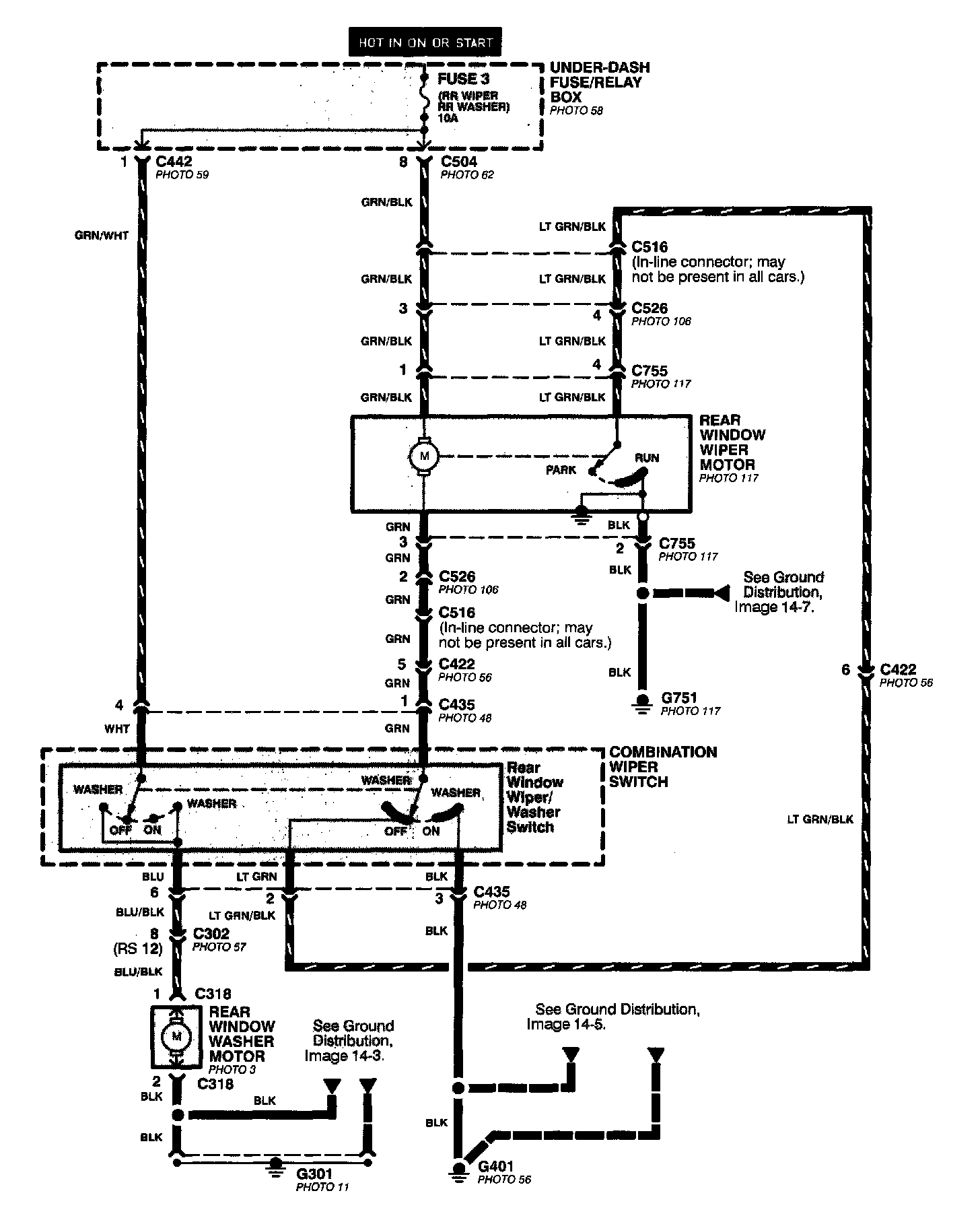

Rear Wiper/Washer Image 92:
Rear Wiper/Washer:
