Home
>>
Acura
>>
1999
>>
Integra GS-R Sedan L4-1797cc 1.8L DOHC (VTEC) MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
Ignition Lock
>>
Ignition Lock Solenoid
Ignition Lock Solenoid

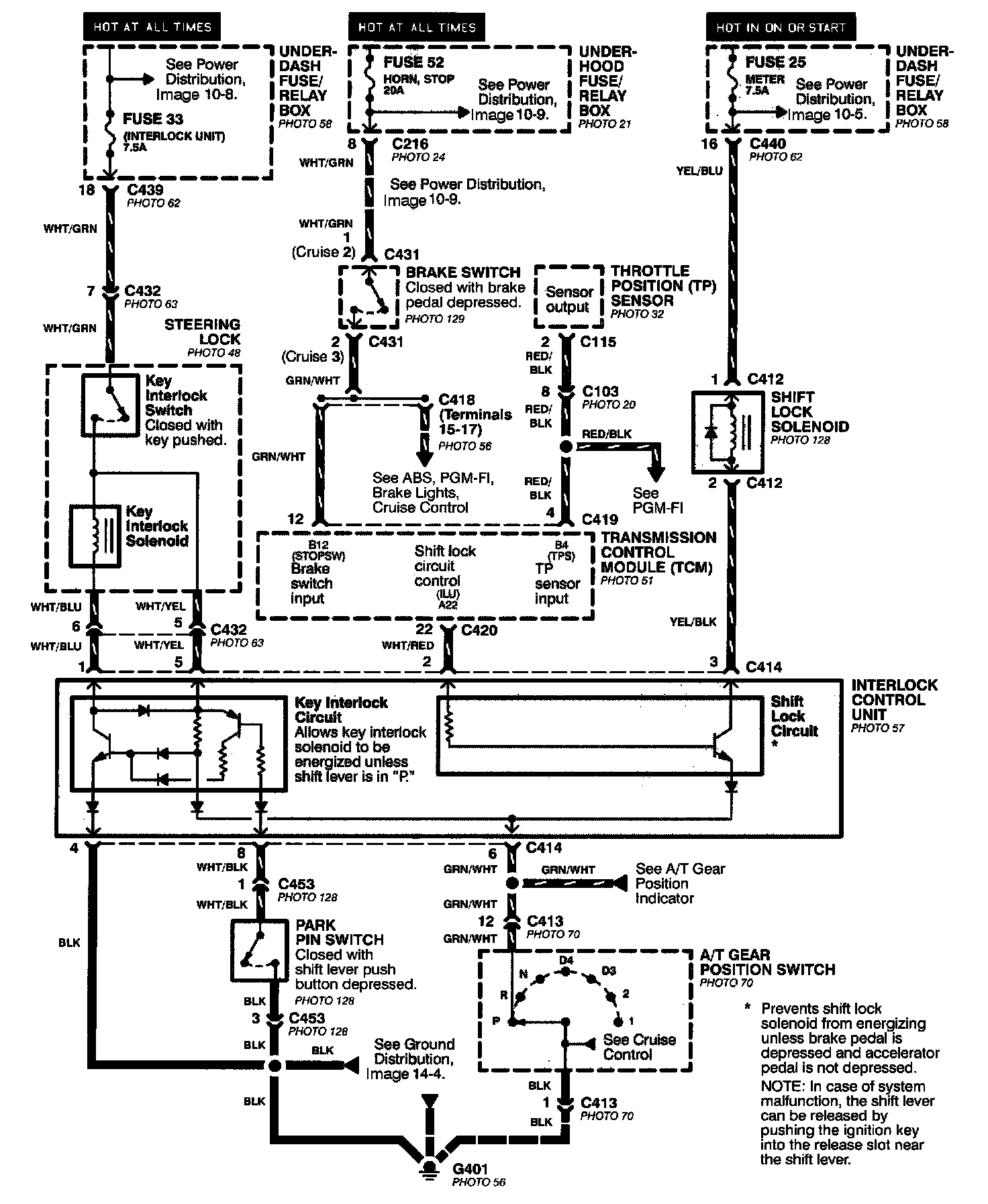

Interlock System Image 138:
