Home >> Acura >> 1999 >> Integra GS-R Sedan L4-1797cc 1.8L DOHC (VTEC) MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Rear Defogger >> Electrical Diagram

Electrical Diagram

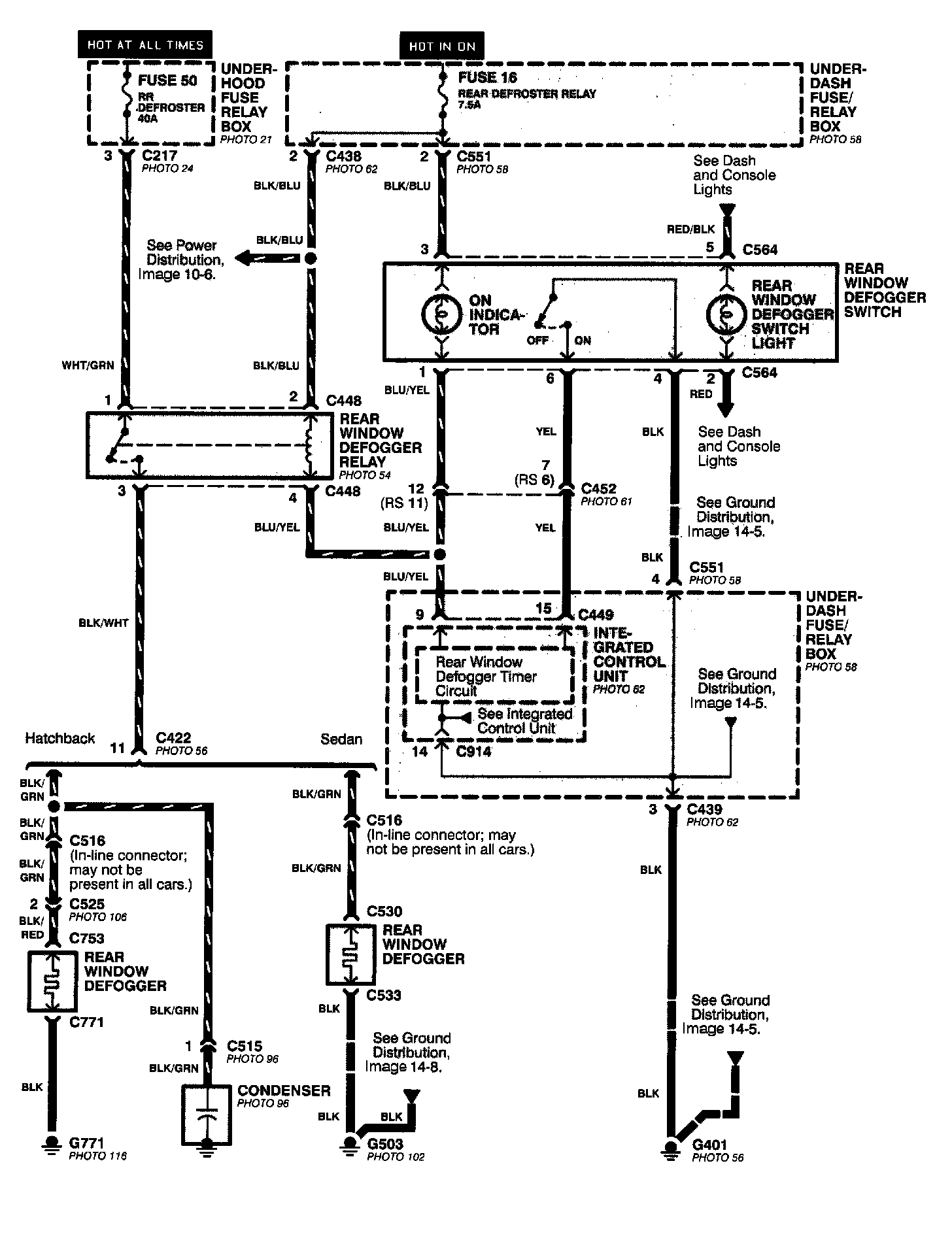

Rear Window Defogger Image 64:
