Acura
>>
1999
>>
Integra GS-R Sedan L4-1797cc 1.8L DOHC (VTEC) MFI
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
>>
Wiring Diagrams
Wiring Diagrams

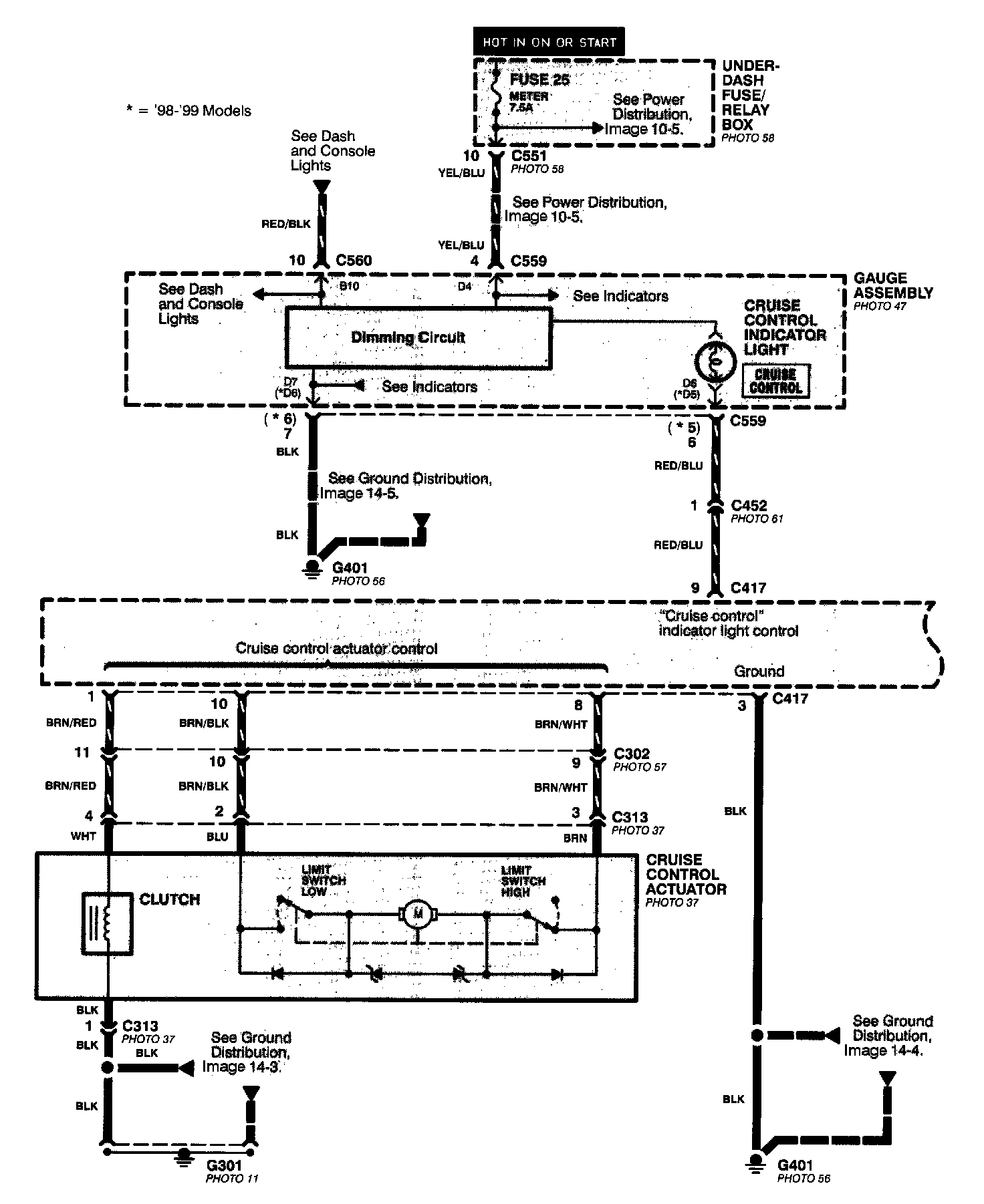

Cruise Control Image 34:

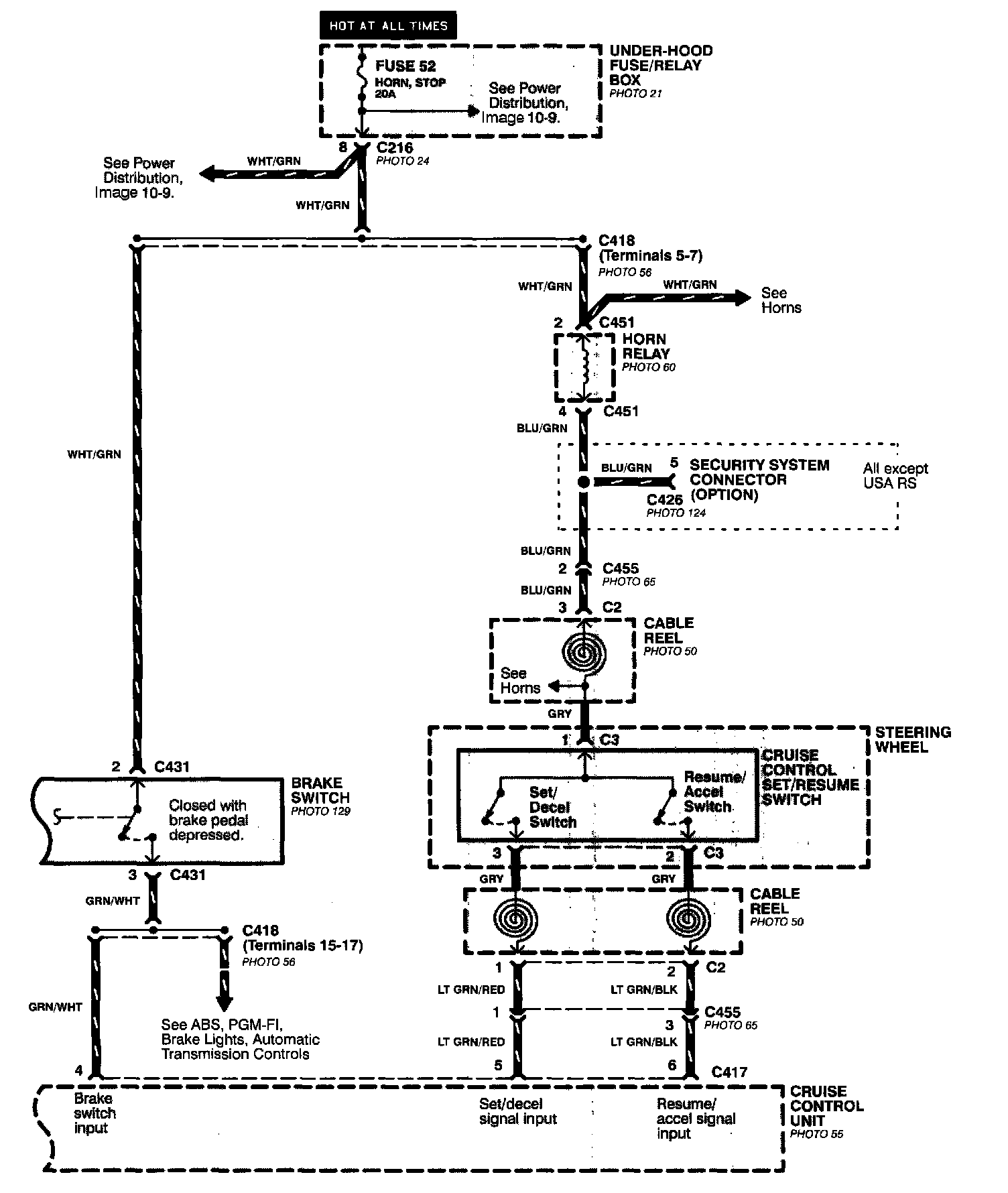

Cruise Control Image 34-1:

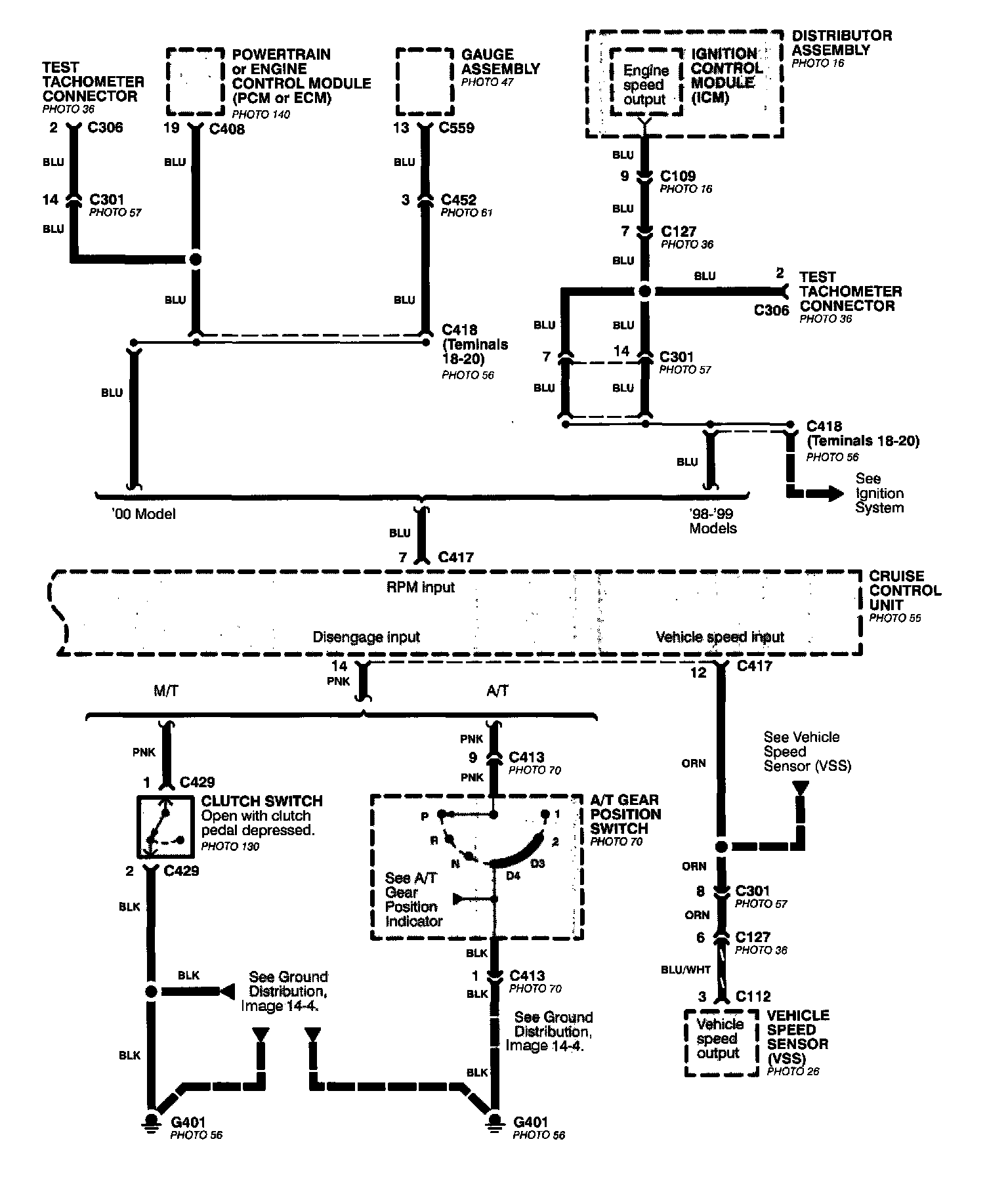

Cruise Control Image 34-2:

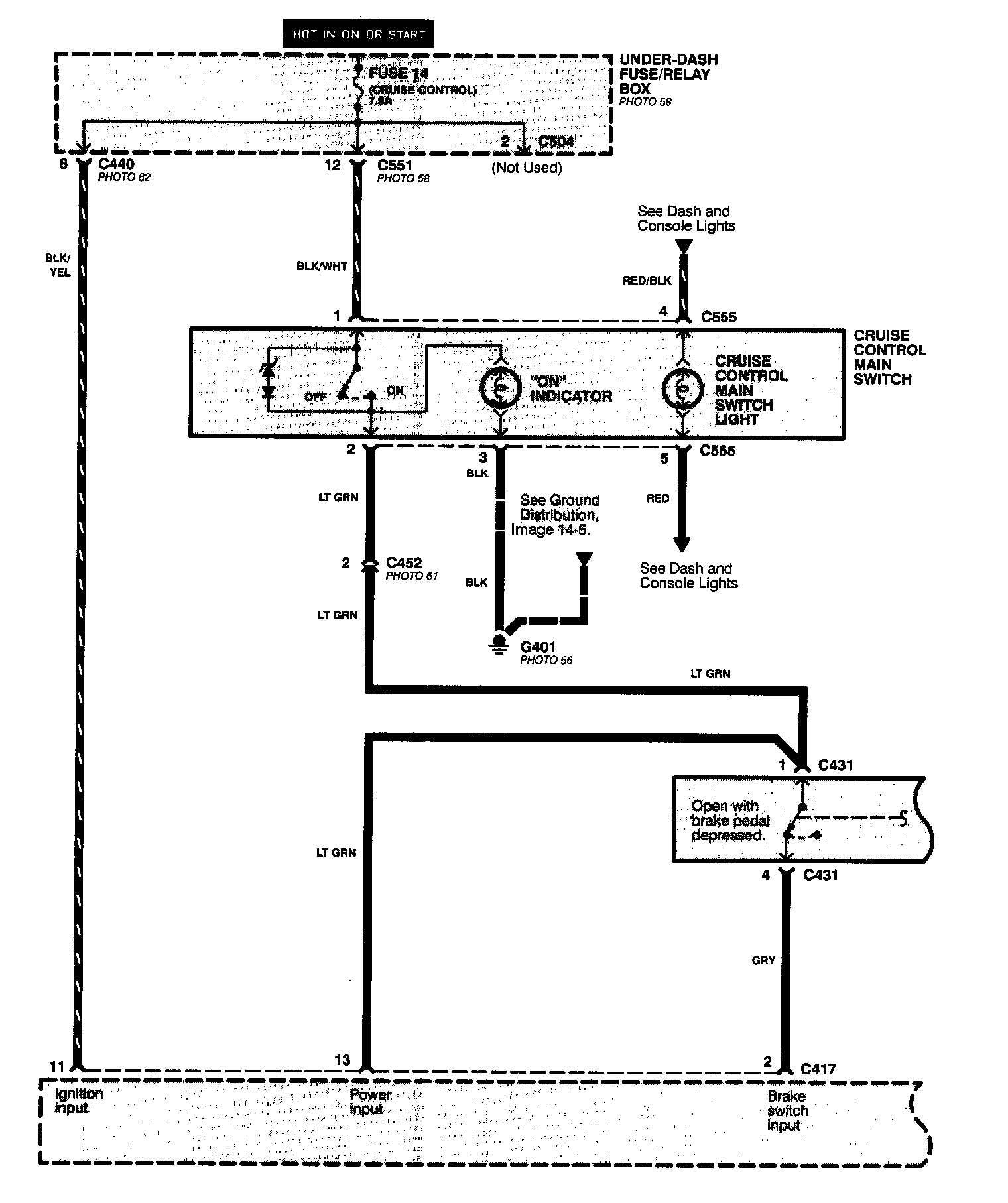

Cruise Control Image 34-3:
