Displaying & Reading Trouble Codes

NOTE: This operation can also be done with the Honda PGM Tester.

1. Connect the SCS short connector to the service check connector (2P) under the glove box.
2. Turn the ignition switch ON (II) without the brake pedal depressed.

NOTE: If the brake pedal is depressed when turning the ignition switch ON (II), the system shins to the DTC Erasure mode.

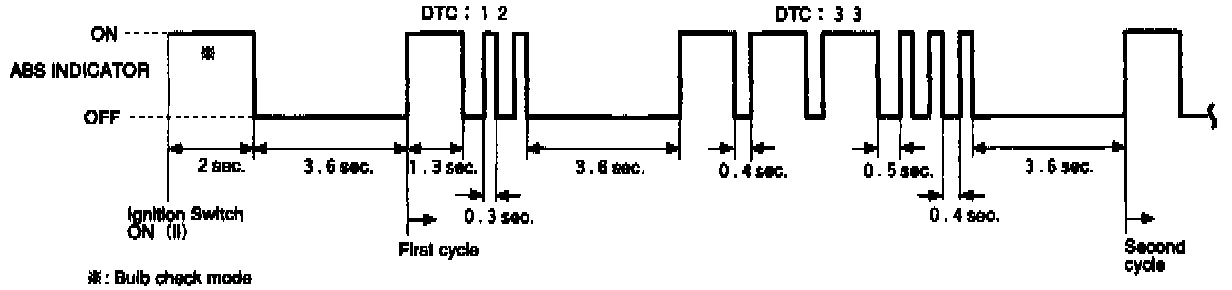

3. The blinking frequency indicates the DTC.

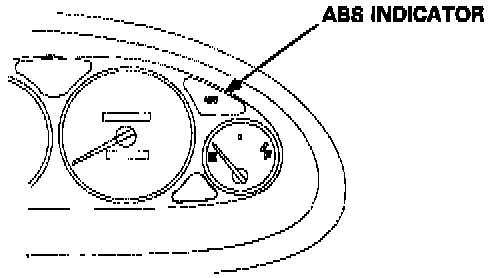

NOTE: If the DTC is not memorized, the ABS indicator will go off for 3.6 seconds, and then come back on.

4. Turn the ignition switch OFF, and remove the SCS short connector.

NOTE: The Malfunction Indicator Lamp (MIL) will stay on after the engine is started if the SCS short connector is connected.

CONDITIONS FOR DTC INDICATION
- Vehicle speed is 6 mph (10 km/h) or less.
- The SCS short connector is connected before the ignition switch is turned ON (II).
- The brake pedal is released.
