Clearing Trouble Codes

NOTE: This operation can also be done with the Honda PGM Tester.

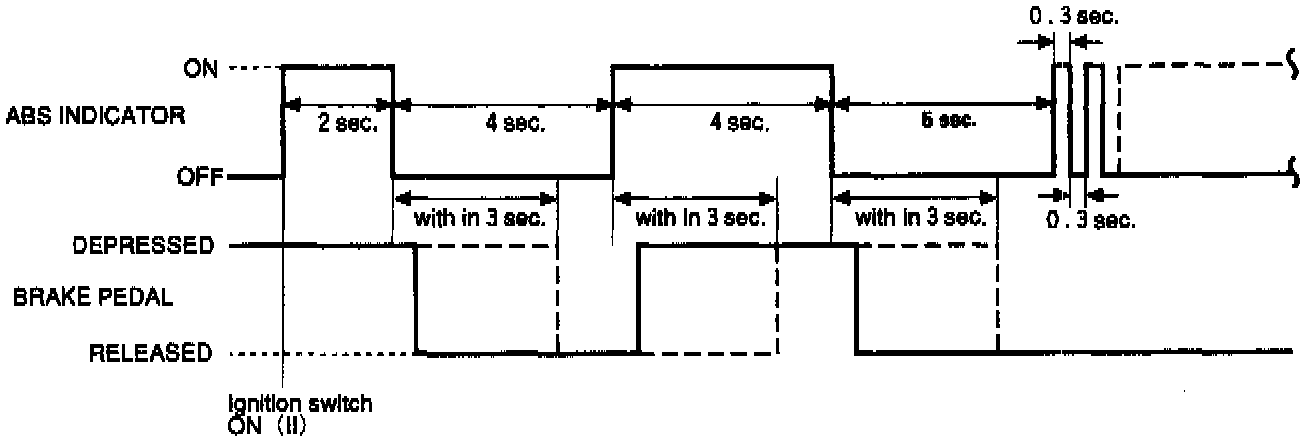

1. Connect the SCS short connector to the service check connector (2P) under the glove box.
2. Depress the brake pedal.
3. Turn the ignition switch ON (II) while keeping the brake pedal depressed.
4. After the ABS indicator goes off, release the brake pedal.
5. After the indicator comes on, depress the brake pedal again.
6. After the indicator goes off, release the brake pedal again.
7. After a few seconds, the ABS indicator blinks twice and the DTC is erased. If the indicator does not blink twice, repeat steps 1 through 6. If the indicator stays ON after the indicator blinks twice, check the DTC because a problem was detected during initial diagnosis before shining to DTC Erasure mode.
8. Turn the ignition switch OFF, and remove the SCS short connector.

CONDITIONS FOR DTC ERASURE
- Vehicle speed is 6 mph (10 km/h) or less.
- The SCS short connector is connected before the ignition switch is turned ON (II).
- The brake pedal is depressed before the ignition switch is turned ON (II).
