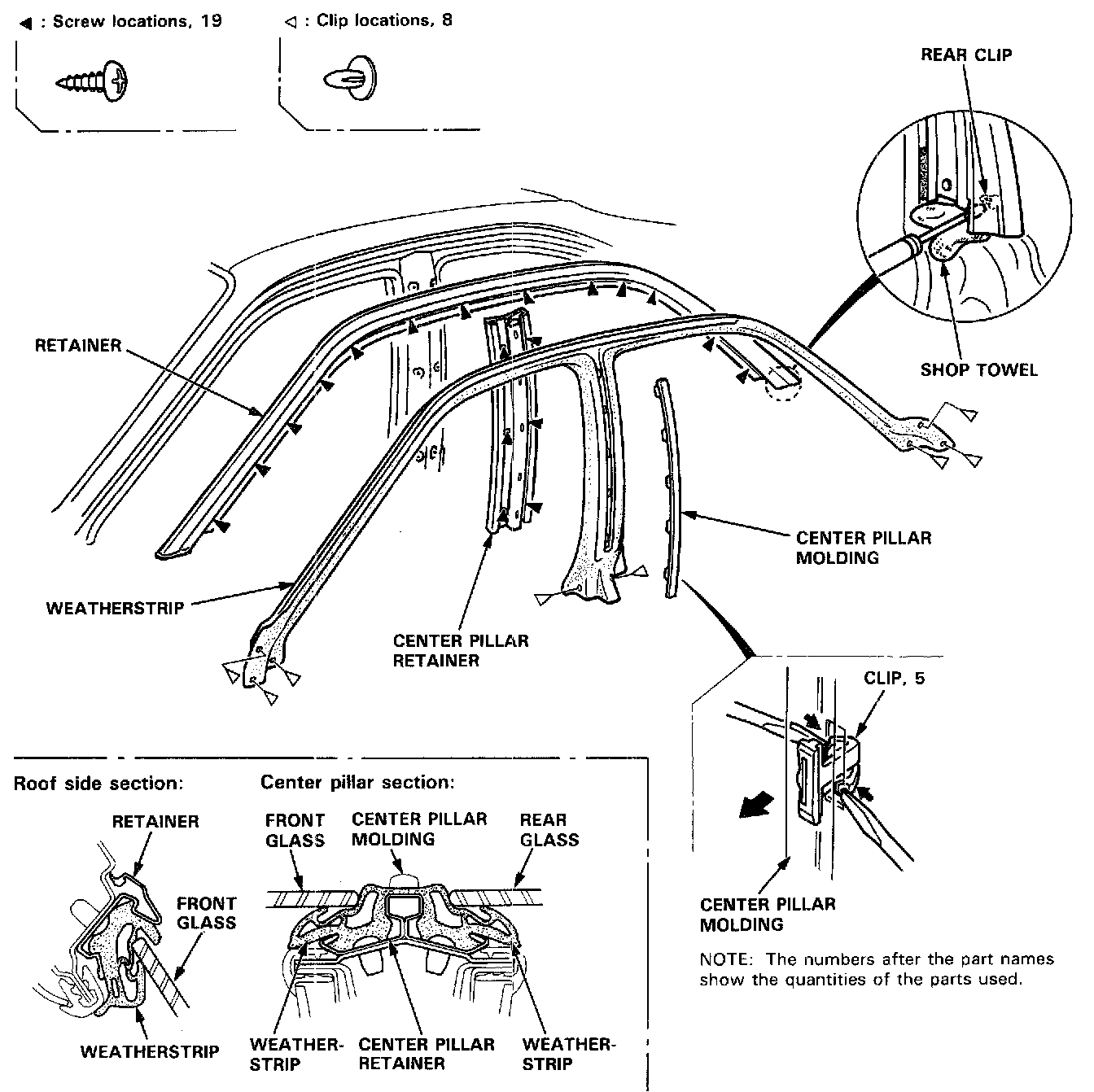

Retainers and Weatherstrip Replacement

Retainers and Weatherstrip

Replacement

CAUTION: Wear gloves to remove and install the retainers.






NOTE: Take care not to bend the retainers.

Installation is the reverse of the removal procedure.

NOTE:
- Check the weatherstrip for damage or deterioration, and replace it if necessary.
- After installing the weatherstrip, check for water leaks.
- If necessary, adjust the position of the door glass.
- If necessary, replace any damaged clips.
