Spoiler: Service and Repair

Hatch Spoiler

Replacement

NOTE
- Take care not to scratch the hatch
- Open the hatch.

1. Remove the hatch side trim and hatch trim panel.

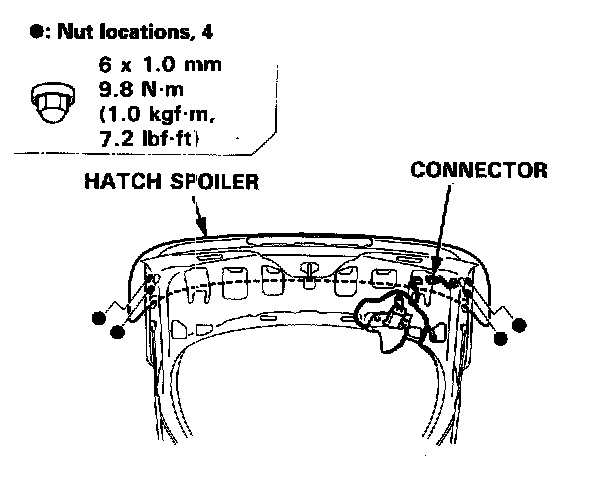

2. Remove the nuts and disconnect the connector.

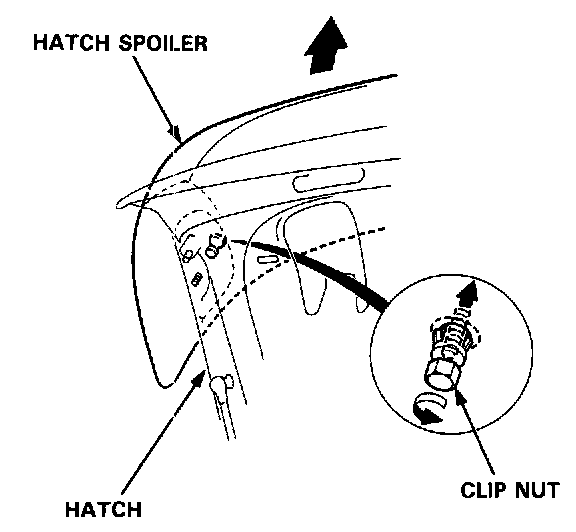

3. Remove the hatch spoiler by turning the clip nut On the left side counterclockwise.




4. Installation is the reverse of the removal procedure.

Installation is the reverse of the removal procedure.
