Rear Seat Cover Replacement
Rear Seat Cover ReplacementCAUTION: Wear gloves to remove and install the seat covers.
NOTE:
- Take care not to tear the seams or damage the seat covers.
- Remove the clips as shown.
Seat-back cover removal:
Hatchback
1. Remove the seat-back.
2. Remove the latch cover and latch collar.

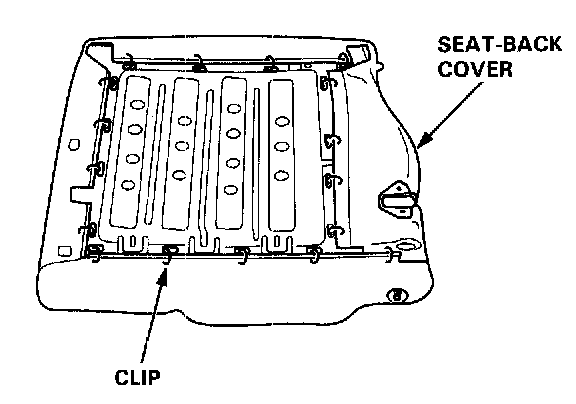

3. Remove all the clips from the back of the seat-back, then loosen the seat-back cover.

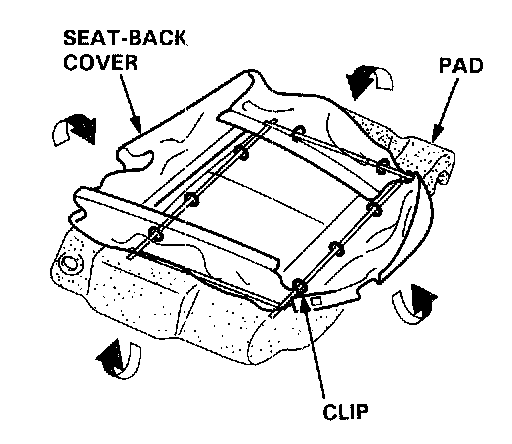

4. Pull back the edge of the seat-back cover all the way around, then release the clips.
Sedan
1. Remove the seat-back.

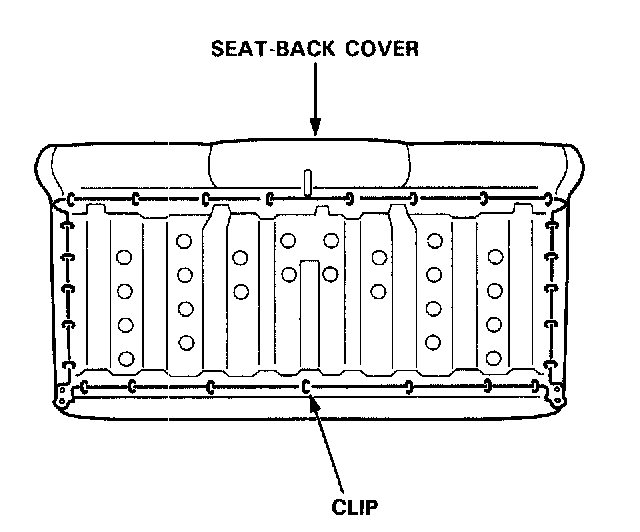

2. Remove all the clips from the back of the seat-back, then loosen the seat-back cover.
3. Remove all the clips from under the seat cushion, then loosen the seat cushion covers.
Seat cushion cover removal:
Hatchback
1. Remove the seat cushion.

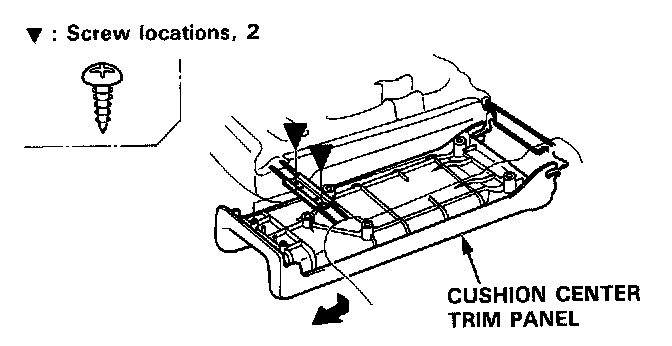

2. Remove the cushion center trim panel.

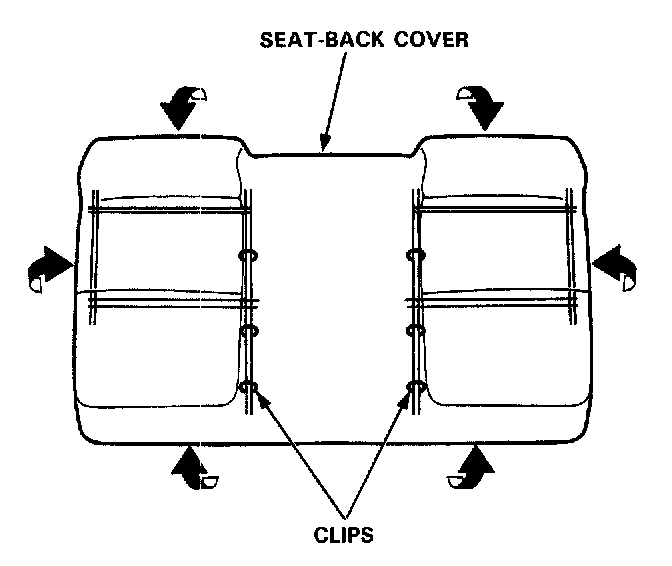

3. Pull back the edge of the seat-back cover all the way around, then release the clips.

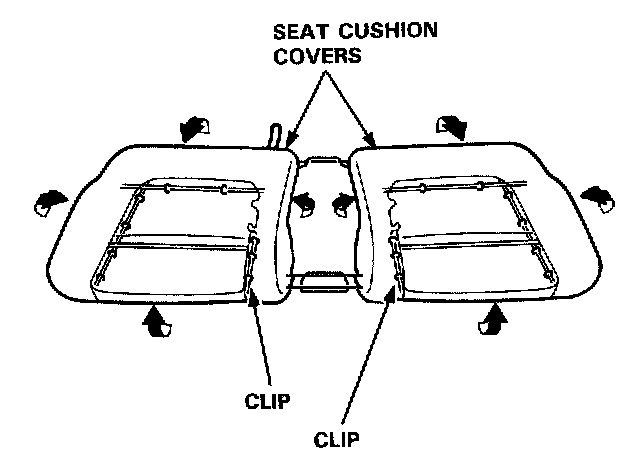

4. Pull back the edges of the seat cushion covers all the way around, then release the clips.
Sedan
1. Remove the seat cushion.

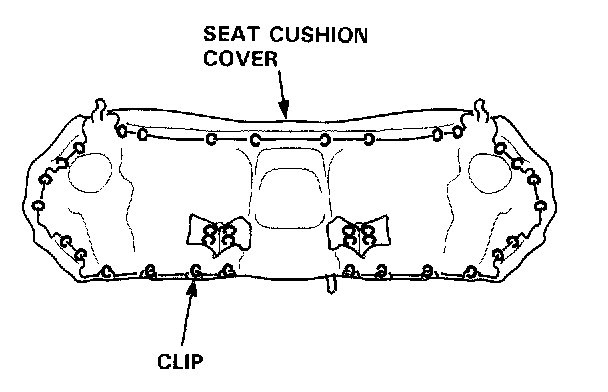

2. Remove all the clips from under the seat cushion, then loosen the seat cushion cover.

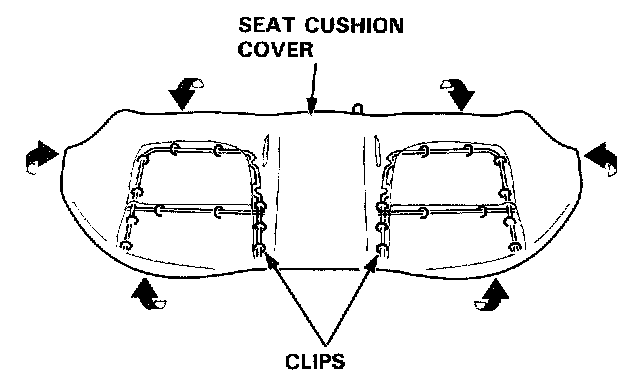

3. Pull back the edge of the seat cushion cover all the way around, then release the clips.
Installation is the reverse of the removal procedure.
NOTE:
- To prevent wrinkles when installing a seat cover, mark sure the material is stretched evenly over the pad before securing all the clips.

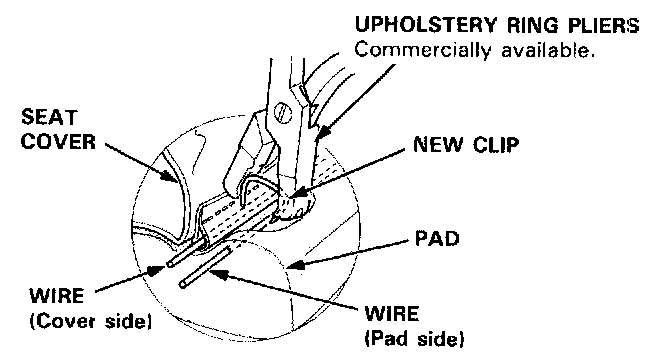

- Replace the released clips with new ones.
