Front Seat Cover Replacement

Front Seat Cover Replacement

CAUTION: Wear gloves to remove and install the seat Covers.

NOTE: Take care not to tear the seams or damage the eat covers.

Seat-back cover removal:

1. Slide the front seat forward and fold the seat-back forward.

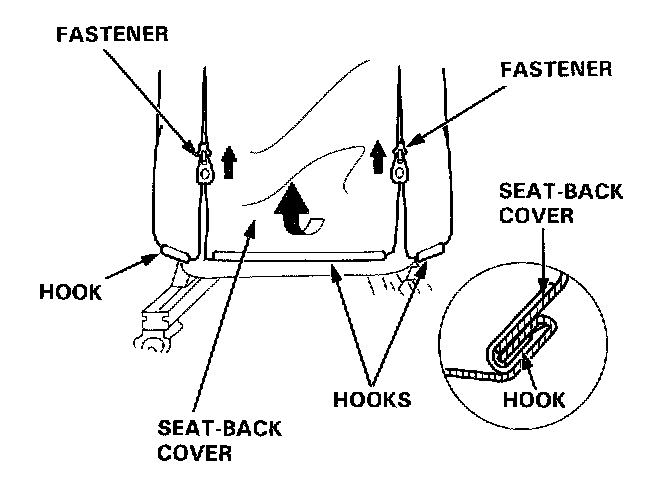

2. Remove the hooks and fasteners, then fold the seat-back cover back.

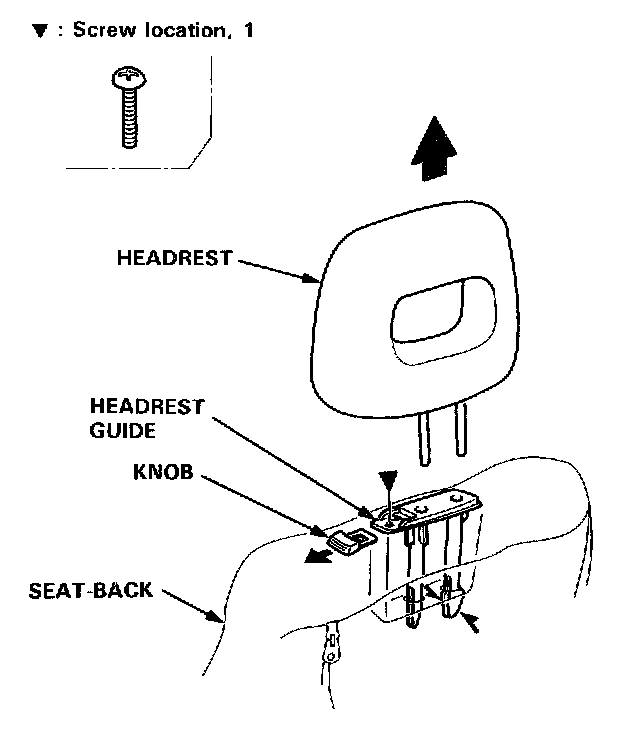

3. Remove the headrest and headrest guide.

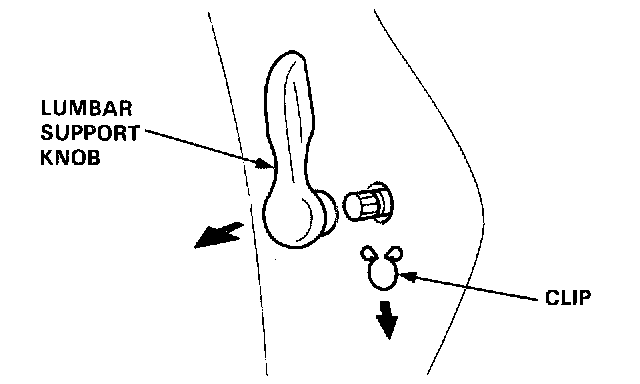

4. Remove the lumbar support knob.

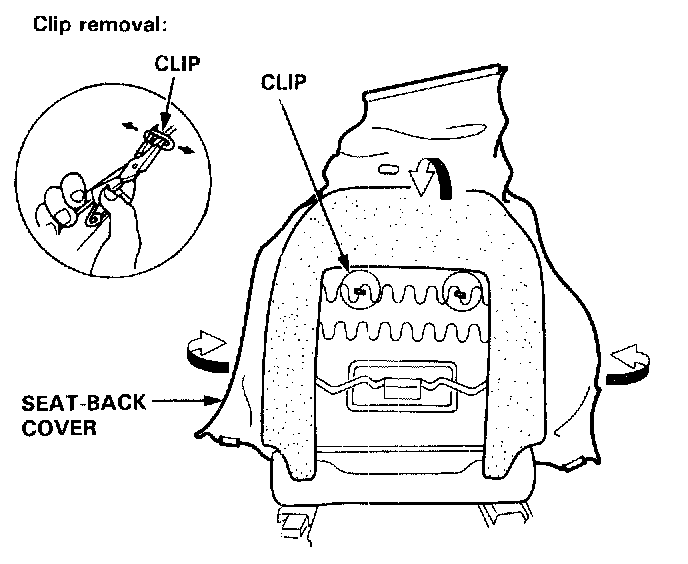

5. Remove the seat-back cover by releasing the inside clips.




6. Pull back the edge of the seat-back cover all the way around, then release the clips.

Seat cushion cover removal:

1. Remove the seat cushion from the seat tracks.

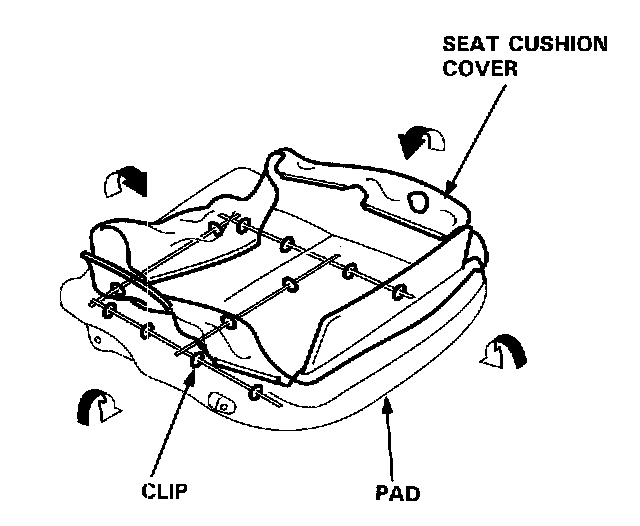

2. Remove all clips from under the seat cushion, then loosen the seat cushion cover.




3. Pull back the edge of the seat cushion cover all the way around, then release the clips.

Installation is the reverse of the removal procedure.






NOTE:
- To prevent wrinkles when installing a seat cover, make sure the material is stretched evenly over the pad before securing all the clips.

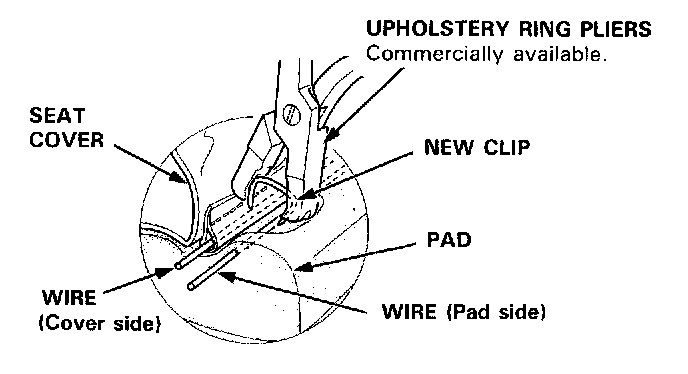

- Replace the released clips with new ones.
